Moen 82660 Features:
Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Coordinates seamlessly with other items from Moen’s Oxby Collection
Single function rain shower head
Single function cartridge – one handle controls temperature of water

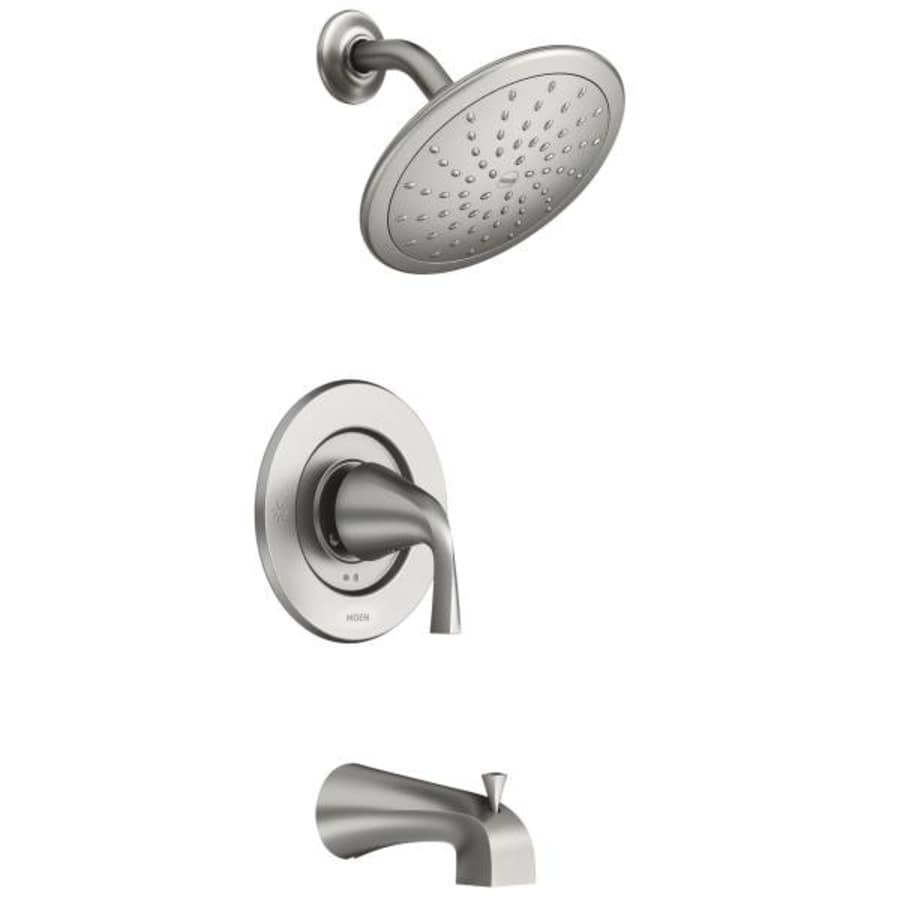

Tub and Shower Package Includes: Valve, shower head, shower arm, flange, and tub spout
Handle operates counterclockwise through a 270° arc with off at 6 o’clock and maximum hot at the 9 o’clock position
Adjustable temperature limit stop to control maximum hot water temperature
ADA compliant
All hardware required for installation is included
Moen 82660 Technologies/Benefits:
WaterSense/Eco-Performance: Moen is making a global difference by partnering with environmental organizations and creating eco-friendly products. WaterSense products feature a flow optimizing aerator; these products use less water without sacrificing performance.
Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 2° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.
Moen 82660 Valve Trim Specifications:
Temperature dial swings 270 degrees
Escutcheon (cover plate) Diameter: 6-31/32″ W
Includes pre-set safety stop with override capability
Moen 82660 Shower Head Specifications:
Single function shower head with full spray pattern
Shower head rotates 360 degrees on a swivel ball assembly
Flow Rate: 1.75 GPM (gallons-per-minute)
Shower Head Width: 8″
Shower Arm Length: 6″
Moen 82660 Tub Spout Specifications:
Spout Reach: 6″
Integrated diverter for switching between tub and shower applications
Unrestricted flow rate allows for rapid filling of the tub
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen Oxby Collection
Specifications
| Thermostat | Traditional |
| Insulation Type | Wall Mounted |
| Material | Metal |
| Handle Material | Metal |
| Handle Style | Lever |
| Faucet Type | Bathtub Faucet, Shower Faucet |
| Number Of Handles | 1 |
| Valve Type | Pressure Balanced |
| Spray Pattern | Full |
| Spray Settings | 1 |
| Scald Guard | Yes |
| Showerhead | Single Function |
| Showerhead Shape | Round |
| Diverter Location | Tub Spout |
| Collection | Oxby |
| Certifications | ASME, CSA |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| CA Drought Compliant | Yes |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Diverter Included | Yes |
| Shower Head Included | Yes |
| Valve Trim Included | Yes |
| Volume Control | No |
| Integrated Diverter | Yes |
| Shower Arm Reach | 6 in. |
| Flow Rate (GPM) | 1.75 |
| Spout Reach | 6 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Height | 8 in. |
| Showerhead Width | 8 in. |
| Valve Trim Height | 6.96875 in. |
| Valve Trim Width | 6.96875 in. |
| Color | Spot Resist Brushed Nickel |
