Product Features:
Faucet body constructed of brass to ensure durability and dependability
Covered under Moen’s limited lifetime faucet warranty
Finishes resist corrosion and tarnishing through everyday use – finish covered under lifetime warranty
The beautifully designed Bayhill Collection features soft curves and flowing lines to complement any home
Moen sets the standard for exceptional beauty and innovative reliable design
Single handle operation for ease of use
An included side sprayer lends a helping hand for a variety of kitchen tasks
Spout swivels 360-degrees providing greater access to more areas of the sink
High-arch gooseneck spout design provides optimal room under the faucet for any size task
Includes optional escutcheon (cover plate) – for sinks with 3 faucet holes
ADA compliant
Low lead compliant – faucet meets federal and state regulations for lead content
Product Technologies / Benefits:

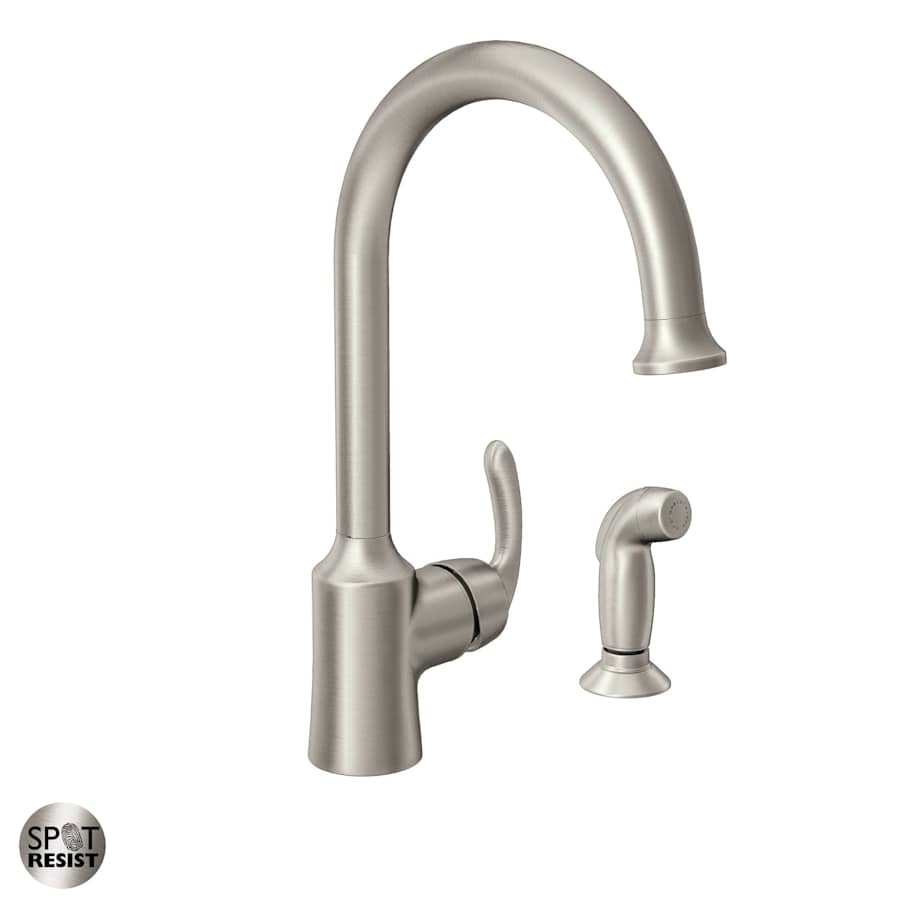

Spot Resist™ Finish: Spot Resist™ stainless finish resists fingerprints and water spots for a cleaner looking kitchen
Product Specifications:
Overall Height: 14-7/8″ (measured from counter top to highest part of faucet)
Spout Height: 9-1/2″ (measured from counter top to spout outlet)
Spout Reach: 9-1/4″ (measured from center of faucet base to center of spout outlet)
Number of Holes Required for Installation: 2
Faucet Centers (Distance Between Handle Installation Holes): 8″
Flow Rate: 1.5 GPM (5.7 L/min)
Max Deck Thickness: 2-1/2″
1 handle included with faucet
Designed for use with standard U.S. plumbing connections
All hardware needed for mounting is included with faucet
Variations:
87301: This model
CA87094: This model without side spray + pullout spray head and soap dispenser
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen Bayhill Collection
Specifications
| Height | 14.5, 14.875 in. |
| Product Weight | 5.3 lbs. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 1.5 |
| Water Connection | 3/8" |
| Faucet Hole Size | 1.5, 2 in. |
| Handle Height | 5.875 in. |
| Max Deck Thickness | 2.5 in. |
| Spout Height | 9.5 in. |
| Spout Reach | 9.25, 8 in. |
| Spout Swivel | 360 Degrees |
| Overflow Height | 14.875 in. |
| Overall Width | 2.625 in. |
| Flow Rate/GPM (at Max PSI) | 2.20 |
| Sink Height | 4.75 in. |
| Insulation Type | Deck Mounted |
| Material | Metal |
| Thermostat | Transitional |
| Faucet Holes | 2 |
| Faucet Type | Kitchen Faucet |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Style | High Arc |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | Compression |
| Handle Material | Metal |
| ADA | Yes |
| Collection | Bayhill |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| ASSE Code | A112.18.1 |
| Certifications | ASME, NSF, CSA |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| CSA Code | B125.1 |
| Eco Friendly | No |
| Drain Assembly Included | No |
| Escutcheon Included | Yes |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | Yes |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Color | Mediterranean Bronze, Spot Resist Stainless |
| Color Tone | Bronze Tones, Stainless Steel |
