Product Features:
Faucet body constructed of metal ensuring durability
Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Double handle operation – handles rest on 1/4 turn valves
Side spray with hose aids with a variety of kitchen tasks
Spout swivels 180-degrees providing greater access to more areas of the sink
High-arch gooseneck spout design provides optimal room under the faucet for any size task
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for kitchen faucets
Low lead compliant – meeting federal and state regulations for lead content
Product Specifications:

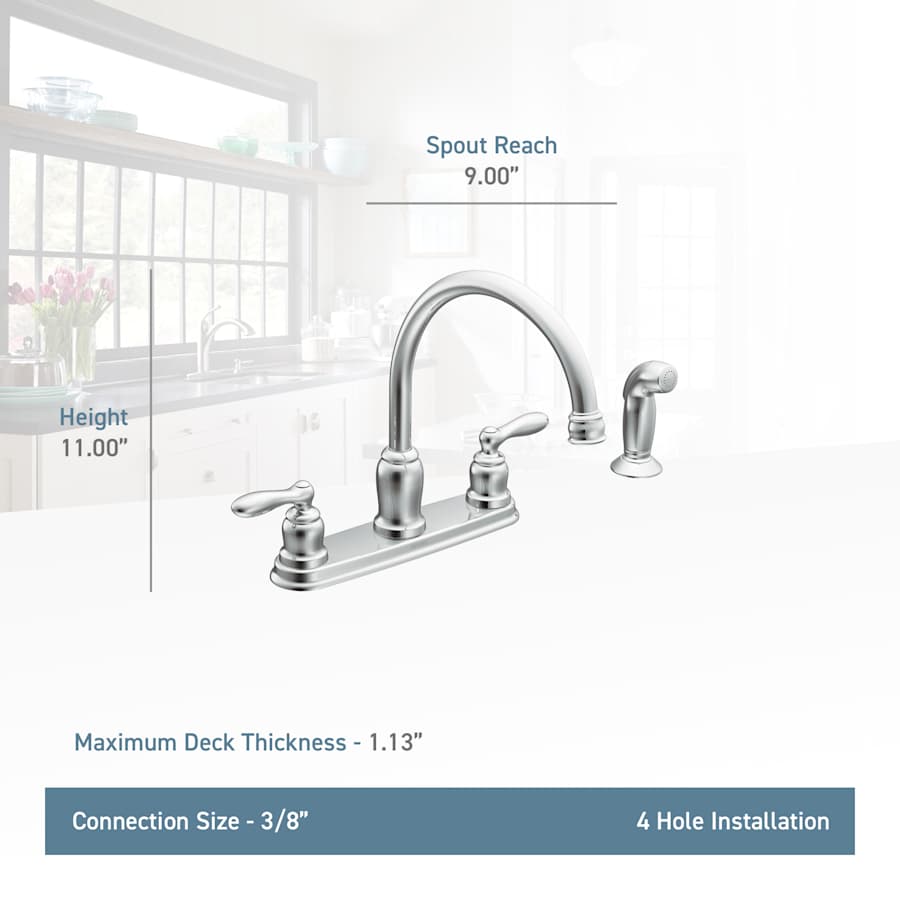

Overall Height: 11″ (measured from counter top to highest part of faucet)
Spout Height: 6-7/8″ (measured from counter top to spout outlet)
Spout Reach: 9″ (measured from counter top to spout outlet)

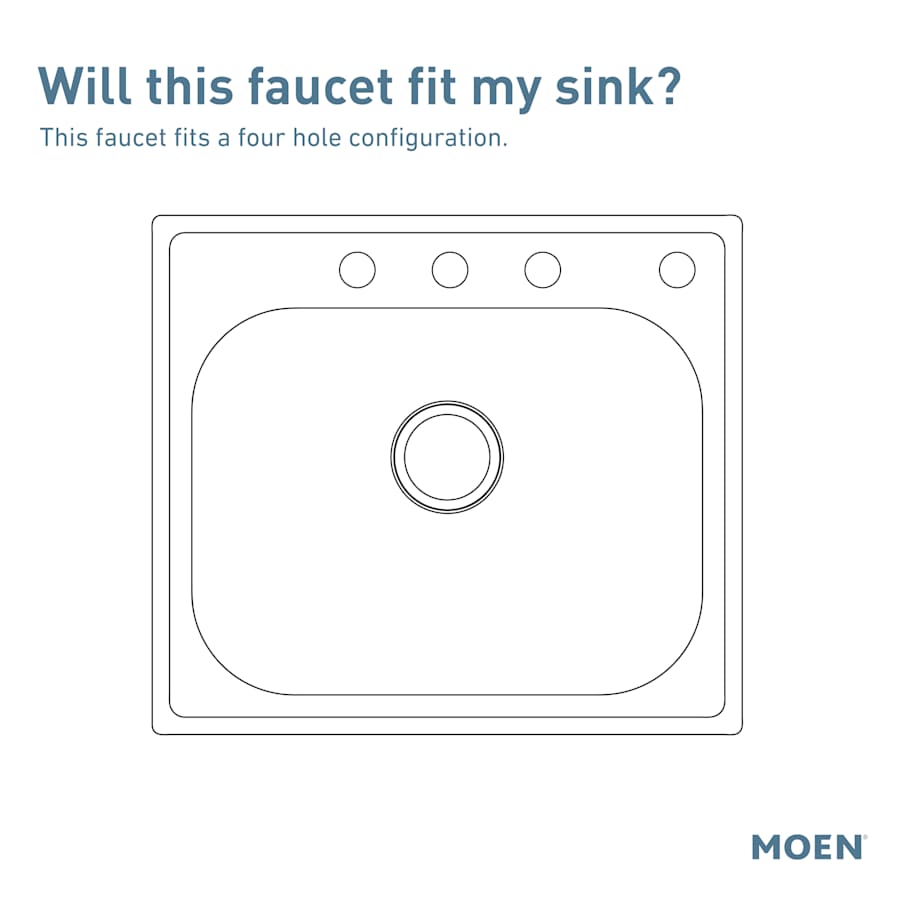

Number of Faucet Holes Required for Installation: 4
Faucet Centers: 8″ (distance between handle installation holes)
Flow Rate: 1.5 GPM (5.7 L/min)
Maximum Deck Thickness: 1-1/8″
2 handles included with faucet
Designed for use with standard U.S. plumbing connections
All hardware needed for mounting is included with faucet
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen Caldwell Collection
Specifications
| Height | 11 in. |
| Product Weight | 7.1 lbs. |
| Overall Width | 13.375 in. |
| Faucet Centers | 8 in. |
| Escutcheon Width | 10.25 in. |
| Flow Rate (GPM) | 1.5 |
| Water Connection | 1/2" |
| Faucet Hole Size | 1 in. |
| Handle Height | 3.625 in. |
| Max Deck Thickness | 1.125 in. |
| Spout Height | 6.875 in. |
| Spout Reach | 9 in. |
| Spout Swivel | 180 Degrees |
| Overflow Height | 11 in. |
| Sink Height | 4.75 in. |
| Thermostat | Traditional |
| Material | Metal |
| Insulation Type | Deck Mounted |
| Faucet Holes | 4 |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Valve Type | Washerless Cartridge |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Water Connection Type | IPS |
| Faucet Type | Kitchen Faucet |
| Quick Connect Supply Lines | Yes |
| Approved for Commercial Use | Yes |
| Collection | Caldwell |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| ADA | Yes |
| ASSE Code | A112.18.1 |
| Certifications | ASME, NSF, CSA |
| CSA Code | B125.1 |
| CA Drought Compliant | Yes |
| Eco Friendly | No |
| Low Lead Compliant | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | Yes |
| Sidespray | Yes |
| Filtering | No |
| Soap Dispenser Included | No |
| Hose Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
