Product Features:
Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for residential installations
Constructed of metal for reliability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Coordinates seamlessly with Moen’s 90 Degree line of products
Single function rain shower head
Posi-Temp® pressure balancing valve cartridge maintains water pressure and controls temperature
Single handle controls temperature of water
Valve trim has pre-set safety stop with override capability
Shower Package Includes: valve trim, shower head, shower arm, and flange
Designed to easily install with standard U.S. plumbing connections
ADA compliant
Rough-in valve is not included – when adding to cart, valve will be presented
Product Technologies and Benefits:

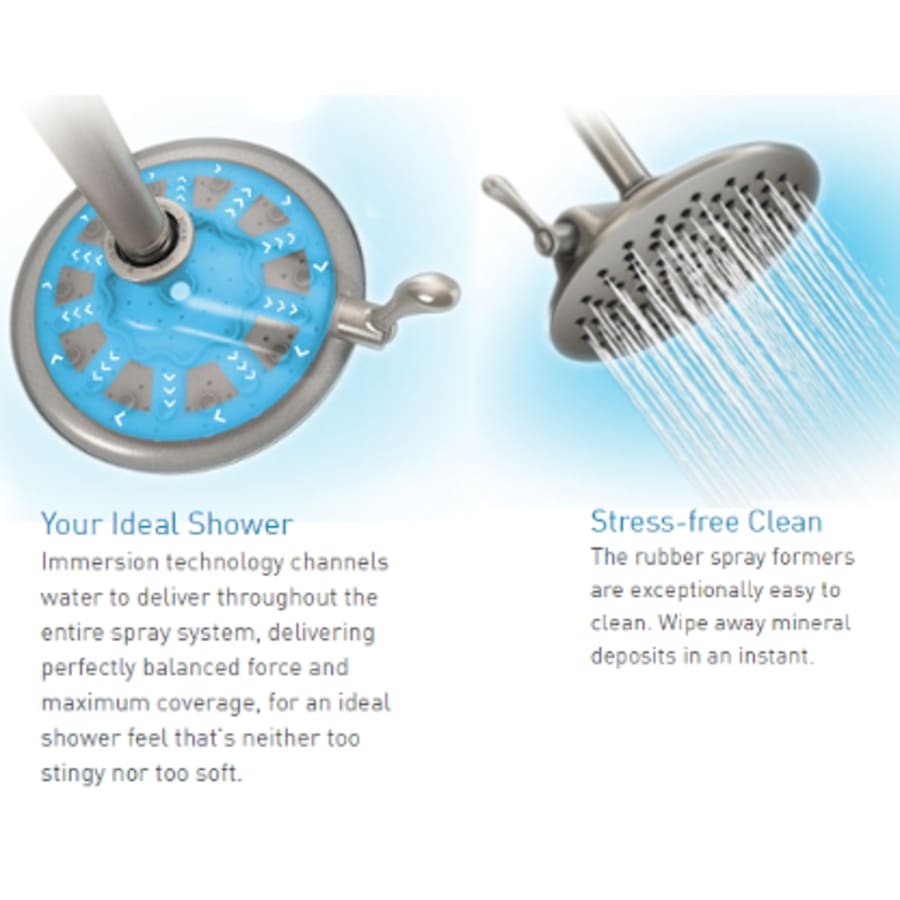

Immersion™ Rainshower Technology: Immersion™ rainshower technology channels water through a spoke design, concentrating and magnifying the water’s natural force, dramatically enhancing the showering experience.
Â

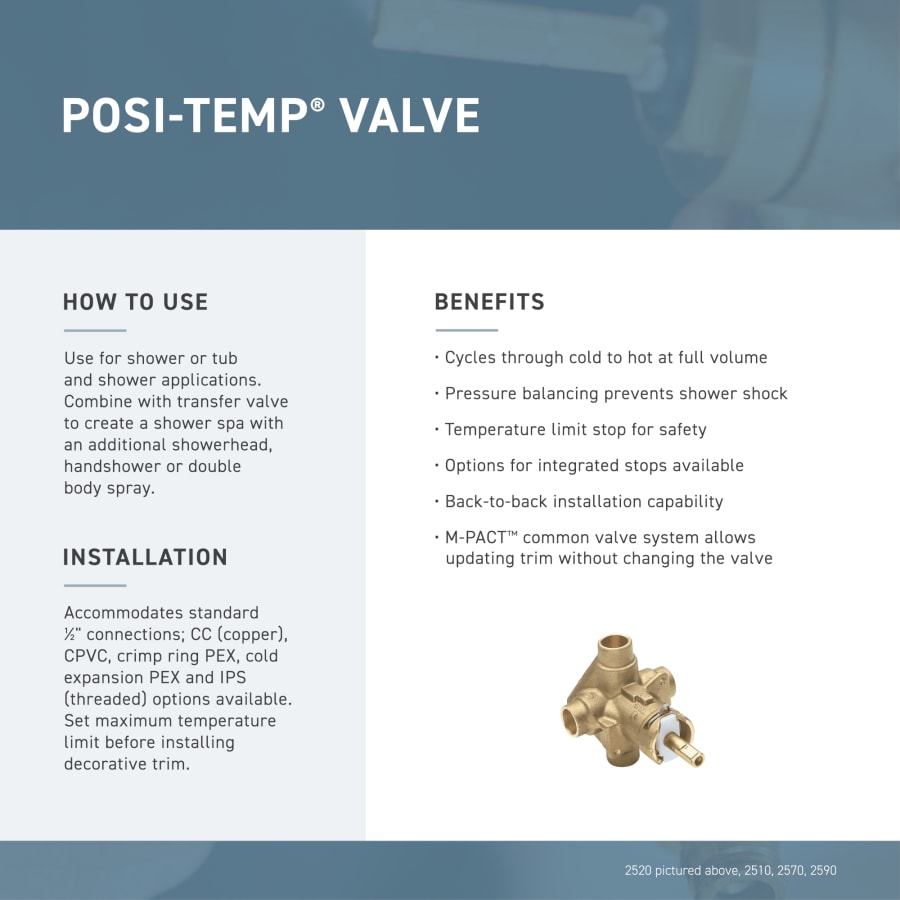

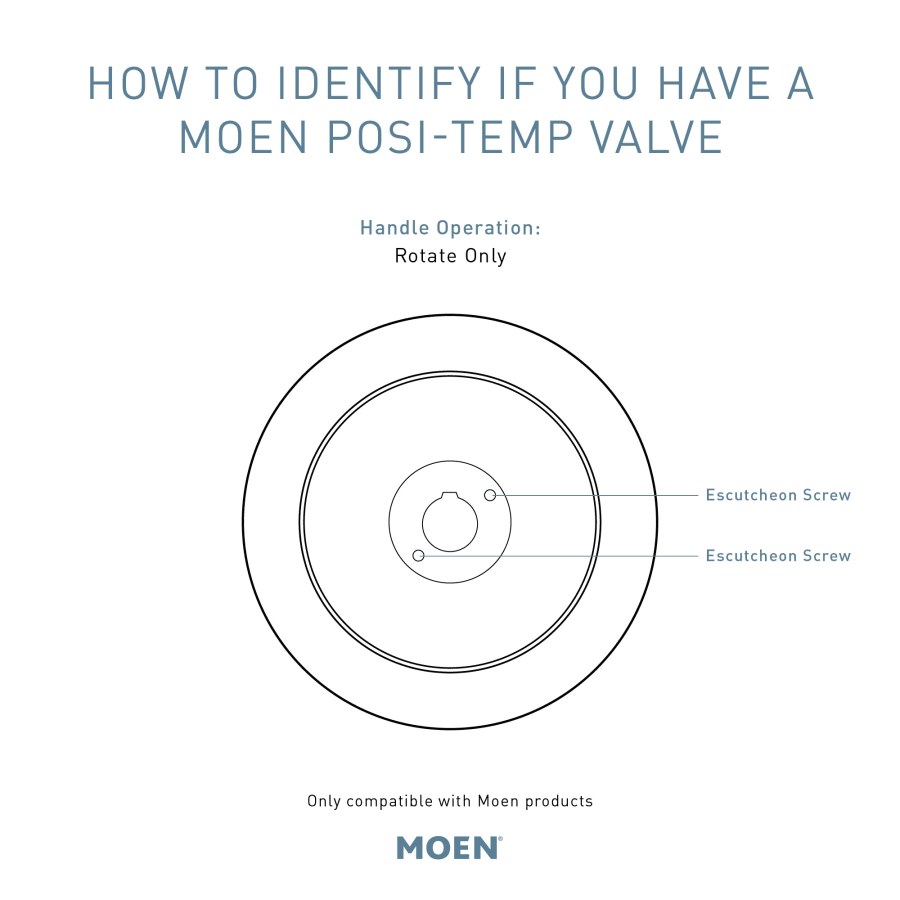

Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.
Â
M-PACT® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACT® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.
Â
Valve Trim Specifications:
Valve Trim Dimensions: 6-7/16″ H x 6-7/16″ W
Includes pre-set safety stop with override capability
Rough-in valve sold separately (when adding to cart, valve will be offered)

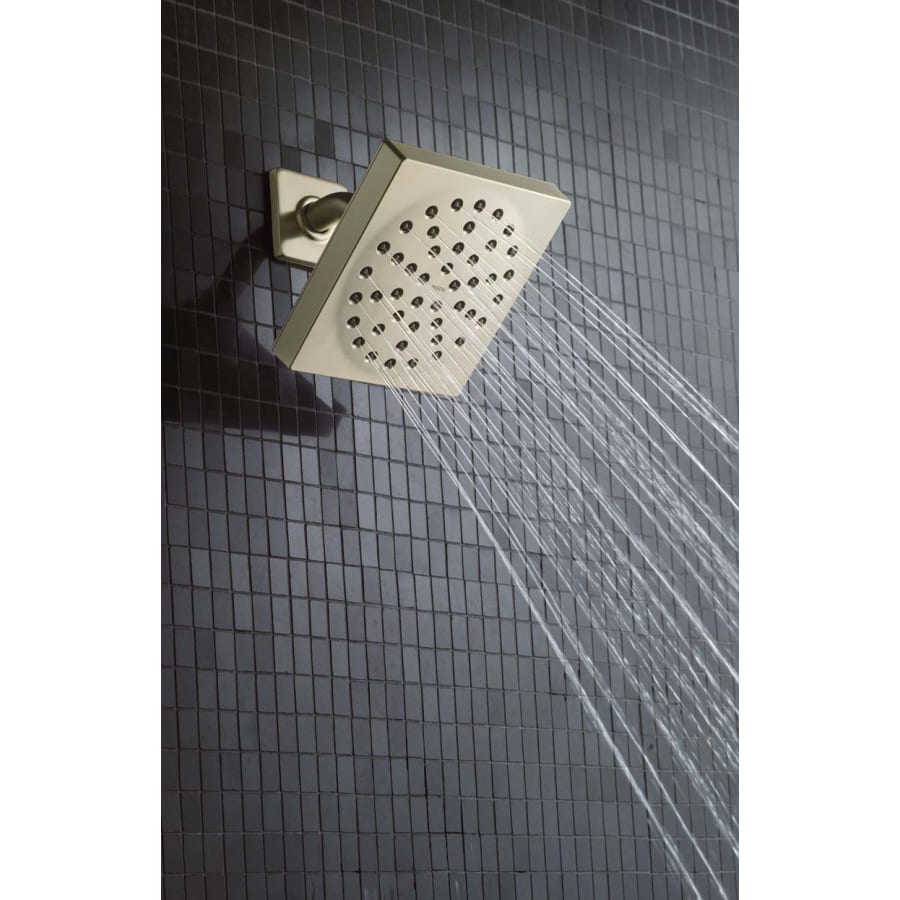

Shower Head Specifications:
Single function shower head
Shower Head Flow Rate: 2.5 gallons-per-minute
Shower Head Width: 6-3/16″
Shower Arm Reach: 6″
Â
Variations:
TS2712: This model
TS2712EP: This model with a 1.75 GPM shower head
TS2712NH: This model less showerhead
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen 90 Degree Collection
Specifications
| Material | Metal |
| Thermostat | Modern |
| Valve Type | Pressure Balanced |
| Insulation Type | Wall Mounted |
| Faucet Type | Shower Faucet |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Handle Material | Metal |
| Scald Guard | Yes |
| Water Efficient | No |
| Showerhead Shape | Square |
| Spray Settings | 1 |
| Showerhead | Single Function |
| Spray Pattern | Full, Rain |
| Approved for Commercial Use | Yes |
| Collection | 90 Degree |
| ADA | Yes |
| Commercial Warranty | 5 Year Limited |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ASME, CSA |
| CSA Code | B125.1 |
| Made in America | Yes |
| CA Drought Compliant | No |
| ASSE Code | A112.18.1 |
| Flow Rate (GPM) | 2.5 |
| Shower Arm Reach | 6 in. |
| Showerhead Width | 6.188 in. |
| Valve Trim Height | 6.438 in. |
| Valve Trim Width | 6.438 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Handshower Included | No |
| Valve Included | No |
| Diverter Included | No |
| Volume Control | No |
| Hose Included | No |
| Slide Bar Included | No |
| Wall Supply Included | Yes |
| Valve Trim Included | Yes |
| Shower Head Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
