Product Features:
Faucet body constructed of metal
Covered under Moen’s lifetime limited warranty
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Double handle operation – handles rest on 1/4 turn valves
Mounts in a widespread configuration – 3 holes required with handles completely separate from spout
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for bathroom faucets
WaterSense Certified product – uses at least 30% less water than standard 2.2 GPM faucets, while still meeting strict performance guide lines
Designed for use with standard U.S. plumbing connections
All hardware needed for mounting is included with faucet
Product Technologies / Benefits:
WaterSense® / Eco-Performance: Moen is making a global difference by partnering with environmental organizations and creating eco-friendly products. WaterSense® products feature a flow optimizing aerator; these products use less water without sacrificing performance.

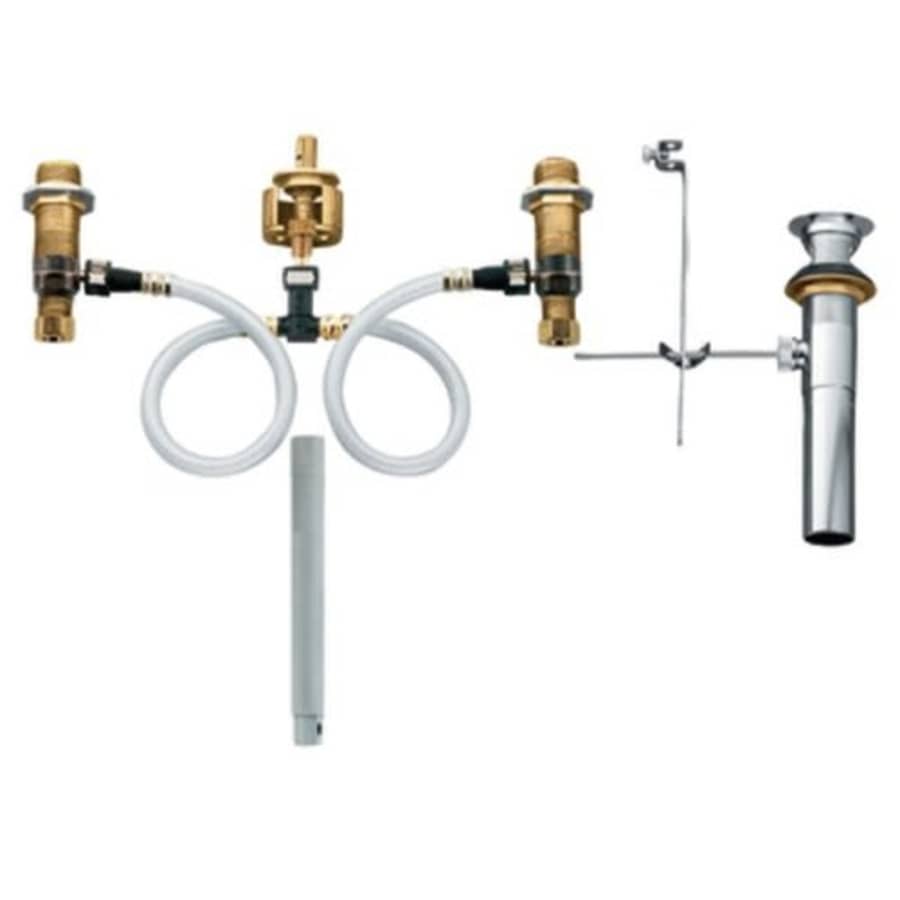

M-PACT® Common Valve System: Designed with the future in mind, M-PACT® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process – or even years down the road – without replacing any faucet plumbing.
Product Specifications:
Overall Height: 4-1/16″ (measured from counter top to the highest part of the faucet)
Spout Height: 3-7/8″ (measured from counter top to the spout outlet)
Spout Reach: 4-5/8″ (measured from the center of the faucet base to the center of spout outlet)
Mounting Type: Widespread
Number of Holes Required For Installation: 3
Faucet Centers (Distance Between Handle Installation Holes): 8-16″
Flow Rate: 1.2 GPM (gallons per minute)
Maximum Deck Thickness: 2-1/4″
2 handles included with faucet
Connection Size: 1/2″
Connection Type: IPS
Cartridge Included: 1224
Faucet Centers: 8″ – 16″ (adjustable distance between handle installation holes)
Maximum Deck Thickness: 1-1/4″
Different Types of Valve Inlet / Outlet Connections:
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen 90 Degree Collection
Specifications
| Height | 4.063 in. |
| Overall Width | 14.25 in. |
| Product Weight | 5.4 lbs. |
| Faucet Centers | 10, 12, 14, 16, 8 in. |
| Flow Rate (GPM) | 1.2 |
| Water Connection | 1/2" |
| Max Deck Thickness | 2.25 in. |
| Spout Height | 3.875 in. |
| Spout Reach | 4.375 in. |
| Overflow Height | 4.0625 in. |
| Insulation Type | Deck Mounted |
| Material | Metal |
| Thermostat | Modern |
| Faucet Holes | 3 |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Valve Type | Washerless Cartridge |
| Spout Type | Fixed |
| Mounting Type | Widespread |
| Faucet Type | Bathroom Sink Faucet |
| Water Connection Type | IPS |
| Water Efficient | Yes |
| ADA | Yes |
| Collection | 90 Degree |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| Low Lead Compliant | Yes |
| CA Drought Compliant | Yes |
| WaterSense Certified | Yes |
| Eco Friendly | Yes |
| Drain Assembly Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Soap Dispenser Included | No |
| Pop-Up Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
