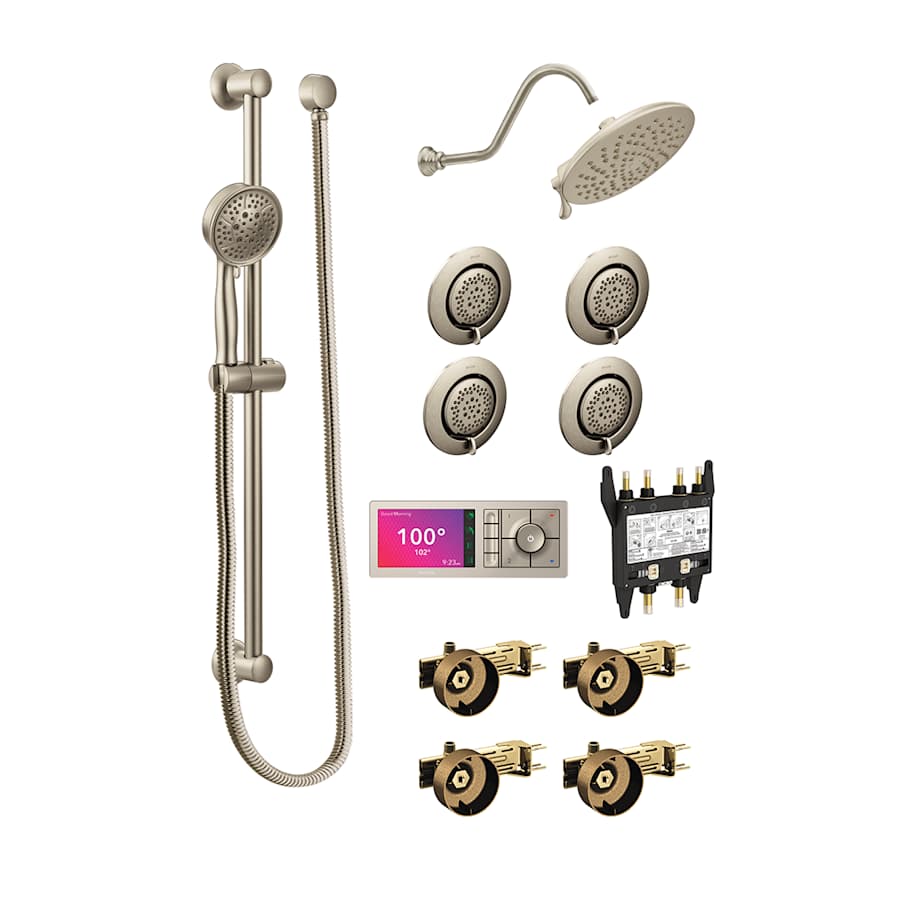

Moen U-S6320-TS1422-4 Features and Benefits:
All items covered under Moen’s limited lifetime warranty (with the exception of drop elbows which have a 1 year limited warranty)
Body sprays in this bundle install in your shower wall to provide an unmatched full body experience
Hand shower included in this bundle
Combines flawlessly with many other offerings from the Velocity collection from Moen
Rain showerhead with Immersion technology from Moen combines for a luxurious shower experience
Designed to easily install with standard U.S. plumbing connections
Premier finishing process – finishes will resist rust and corrosion through everyday use
Constructed of metal and brass to ensure a long lasting and durable shower system that stands up to everyday use
Moen U-S6320-TS1422-4 Technologies:
Immersion Rain shower: Self-pressurizing shower system channels water in a circular pattern inside the showerhead. This allows for consistent water pressure as opposed to standard gravity-fed showerheads which often collect water that slowly trickles for an unsatisfying low-pressure experience.

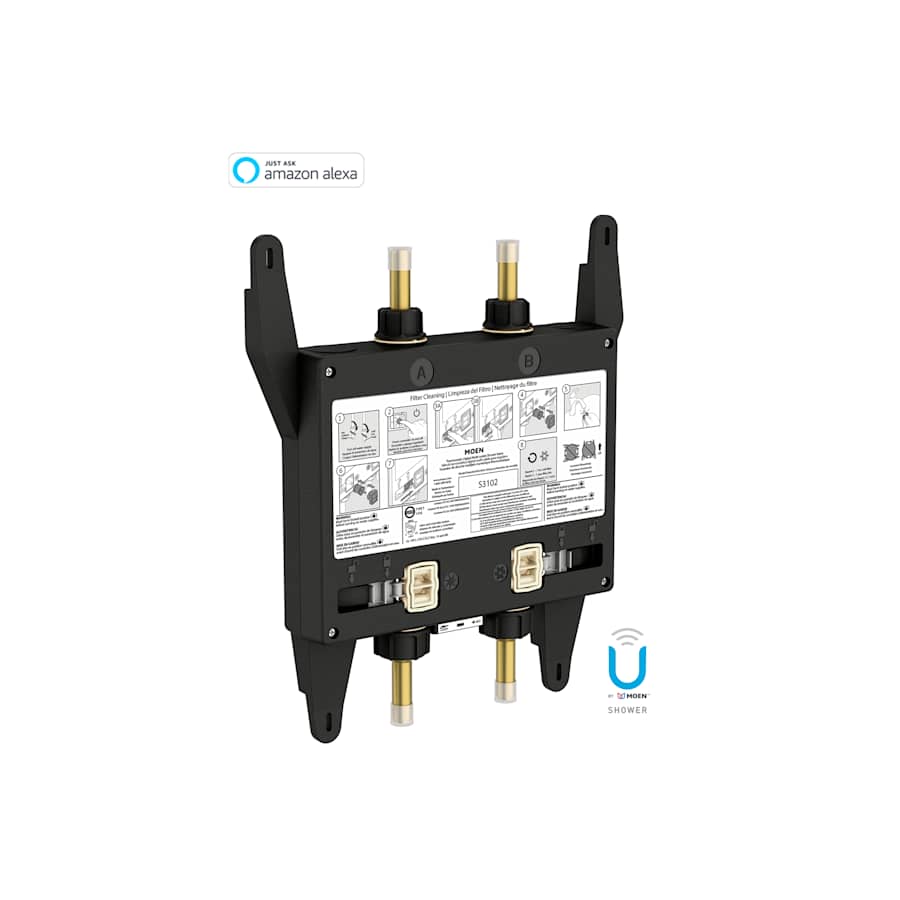

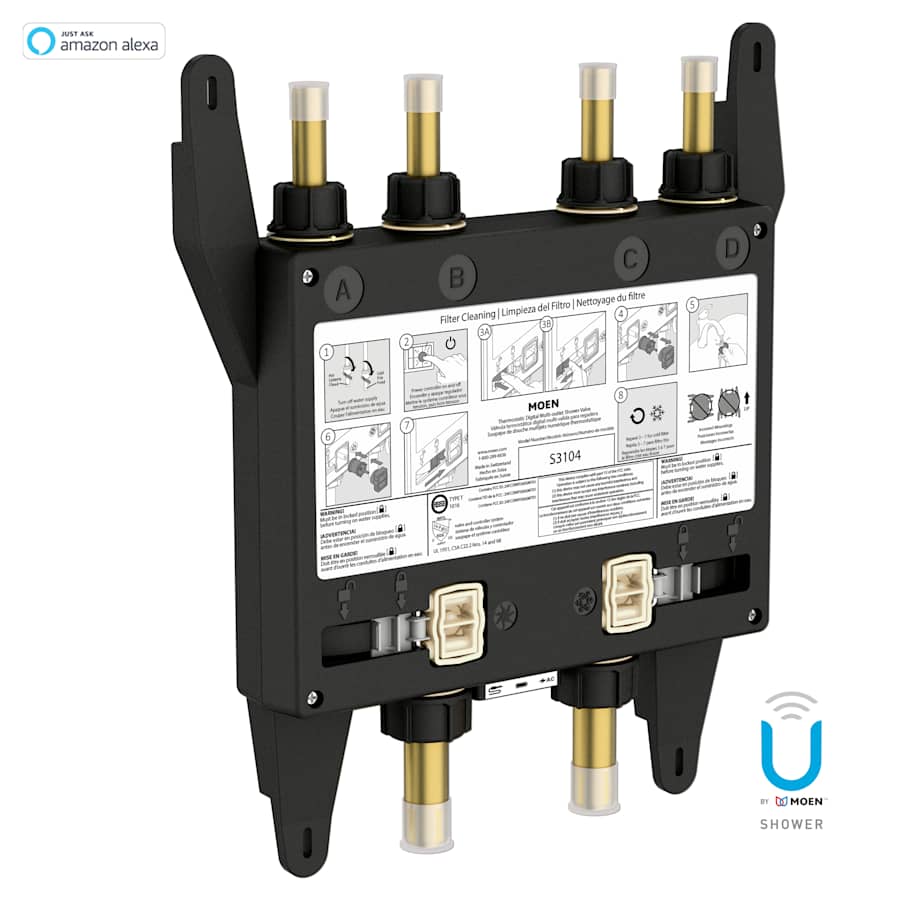

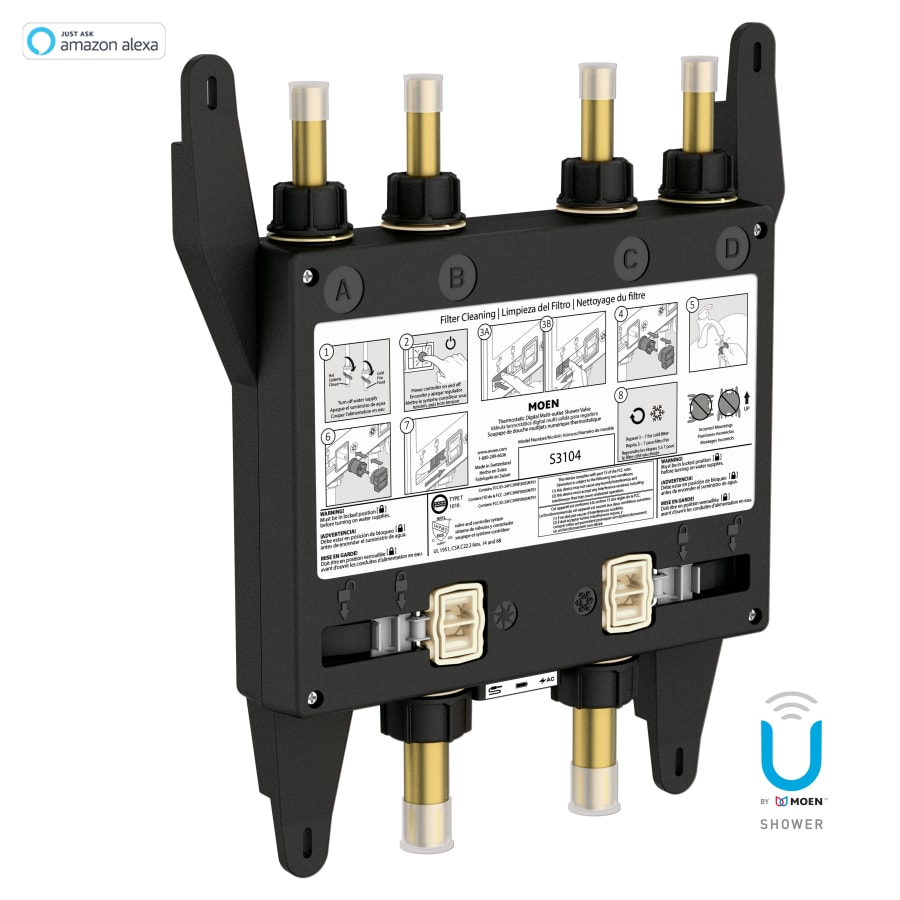

Compatible with MPACT Valve: Designed with the future in mind, M-PACT® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process – or even years down the road – without replacing any faucet plumbing.

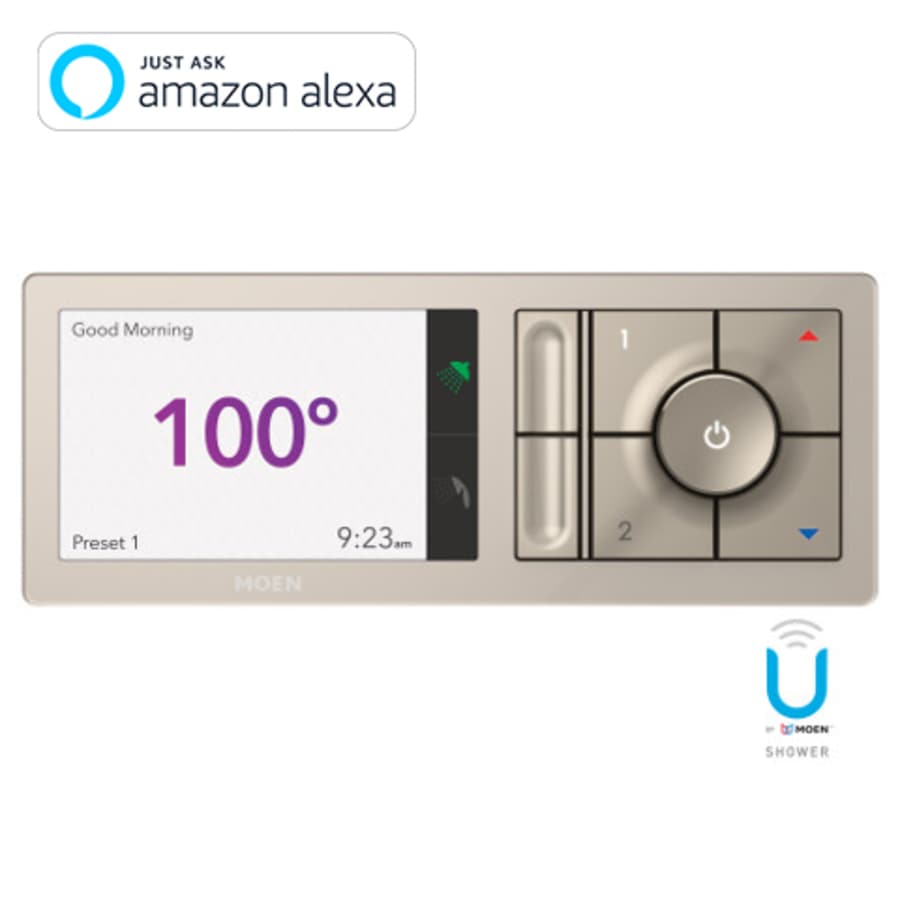

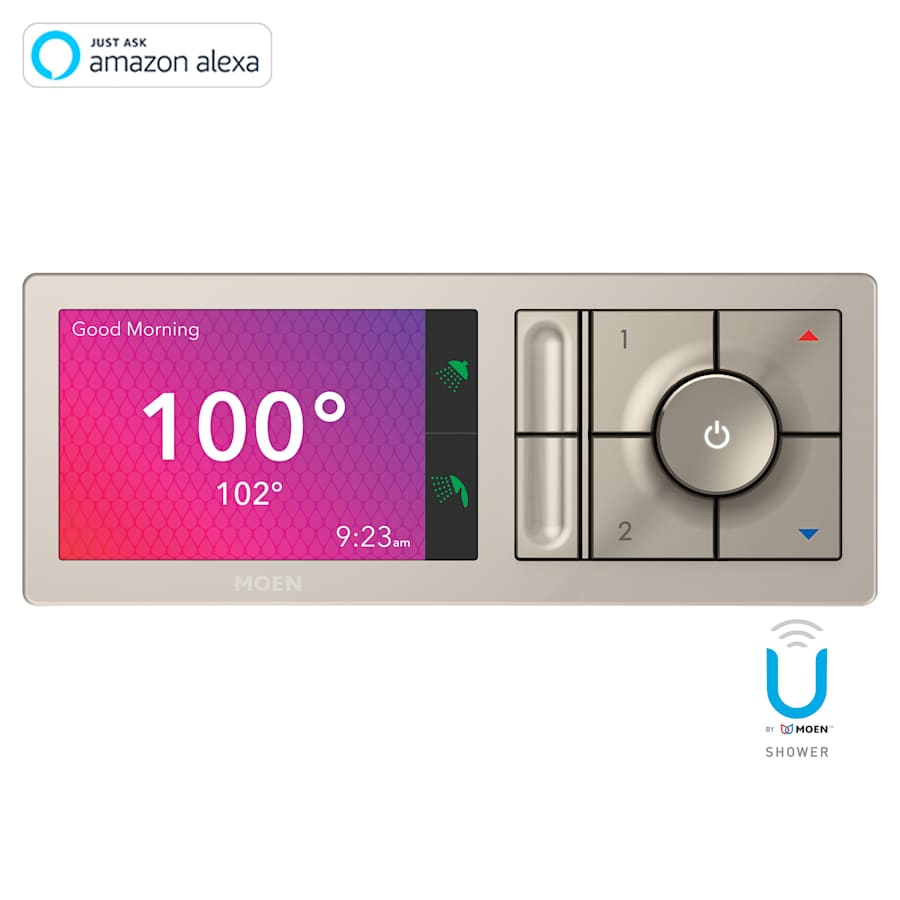

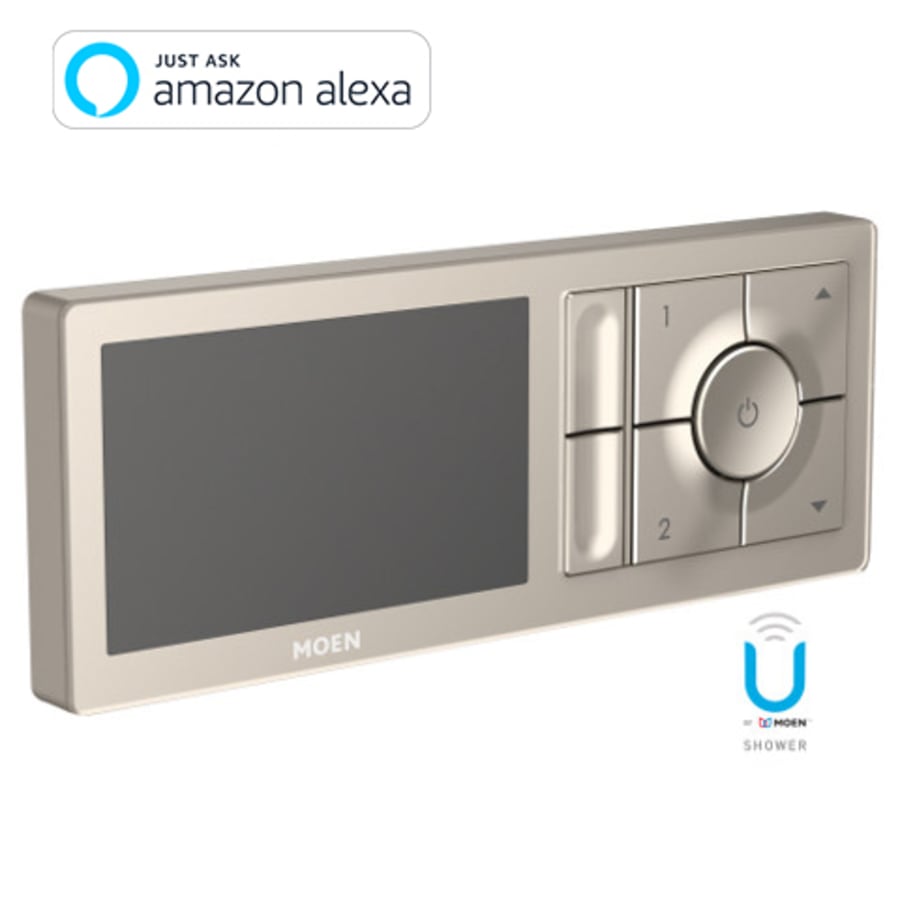

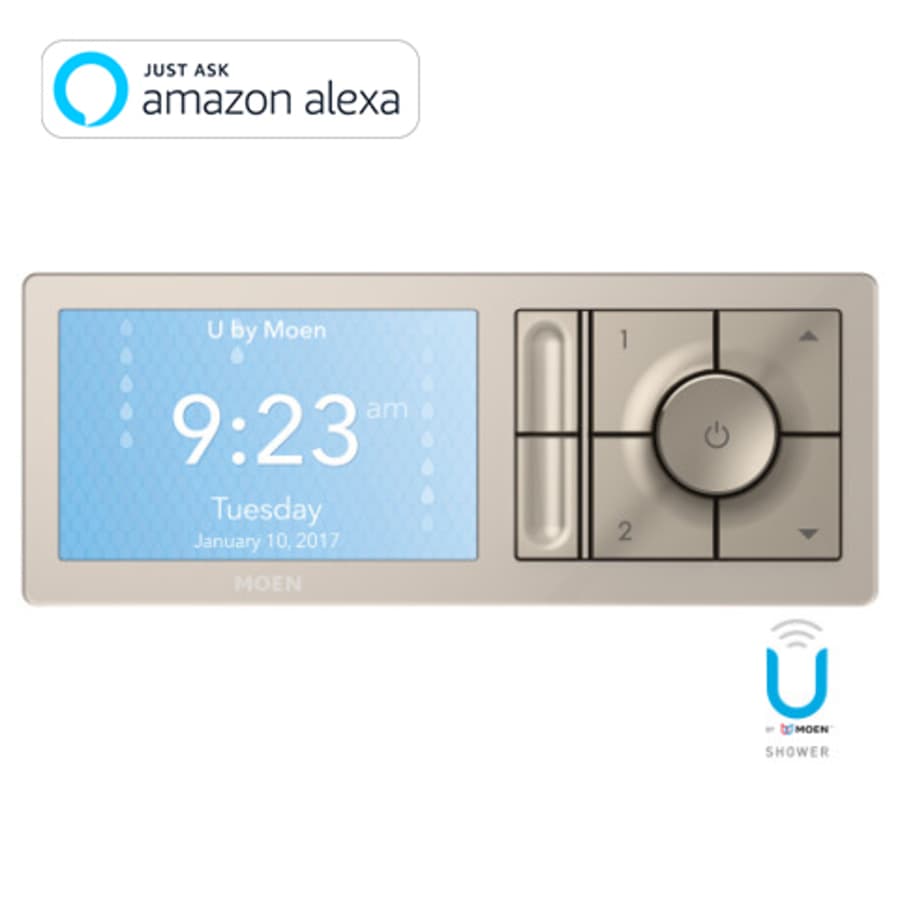

U by Moen: Intuitive shower experience provided with complete control over shower length, temperature control, the ability to start and pause, and device notifications for when your shower is ready. All of this and more from your smartphone or through the built in wall controller.
Moen U-S6320-TS1422-4 Showerhead/Shower Arm Specifications:
Flow Rate: 2.5 gallons-per-minute
Showerhead Dimensions: 8″L x 8″W
Showerhead Height: 3-1/8″
Shower Arm Reach: 14″
Moen U-S6320-TS1422-4 Hand Shower/Slide Bar Specifications:
Flow Rate: 2 gallons-per-minute
Hand Shower Height: 9-11/16″
Spray Head Diameter: 4-3/8″
Slide Bar Length: 30-5/8″
Hose Length: 69″
Spray Pattern: Full
Moen U-S6320-TS1422-4 Body spray Specifications:
Body spray Flow Rate: 2 gallons-per-minute
Body spray Dimensions: 5-3/8″H x 5-3/8″W
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen U By Moen Collection
Specifications
| Material | Brass, Metal |
| Thermostat | Basic |
| Electronic | Yes |
| Faucet Type | Shower System |
| Insulation Type | Wall Mounted |
| Valve Type | Thermostatic |
| Water Connection Type | IPS, NPT |
| Showerhead Shape | Round |
| Spray Pattern | Rain |
| Spray Settings | 4 |
| Water Efficient | Yes |
| Smart Home | Yes |
| Control Type | Digital |
| Diverter Location | Valve Trim |
| Scald Guard | No |
| Number Of Bodysprays | 4 |
| Pause Control | No |
| Shell Material | Metal |
| Valve Trim Material | Metal |
| Device Compatibility | iPhone, Android |
| Wireless Communication | WiFi |
| Voice Activated | Yes |
| App Compatibility | Google Assistant, Apple HomeKit, Amazon Alexa, U by Moen |
| Certifications | ASME, CSA |
| Collection | Velocity |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | No |
| Country Of Origin | USA |
| Low Lead Compliant | Yes |
| Manufacturer Warranty | Limited Lifetime |
| WaterSense Certified | Yes |
| Made in America | Yes |
| CSA Code | B125.1 |
| Flow Rate (GPM) | 2.5 |
| Water Connection | 1/2" |
| Showerhead Height | 3.125 in. |
| Showerhead Width | 8 in. |
| Shower Arm Reach | 14 in. |
| Hose Length | 69 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Handshower Flow Rate | 2 |
| Valve Trim Height | 15.75 in. |
| Valve Trim Width | 13.75 in. |
| Bodyspray Flow Rate (GPM) | 2 |
| Bowl Height | 5.375 in. |
| Bodyspray Width | 5.375 in. |
| Valve Included | Yes |
| Shower Arm Included | Yes |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Integrated Diverter | Yes |
| Slide Bar Included | Yes |
| Diverter Included | Yes |
| Hose Included | Yes |
| Wall Supply Included | No |
| Bodysprays Included | Yes |
| Shower Head Included | Yes |
| Valve Trim Included | Yes |
| Color | Brushed Nickel, Chrome, Oil Rubbed Bronze |
| Color Tone | Bronze Tones, Nickel Tones, Silver Tones |
