MTI Baths AW105-UM Features:

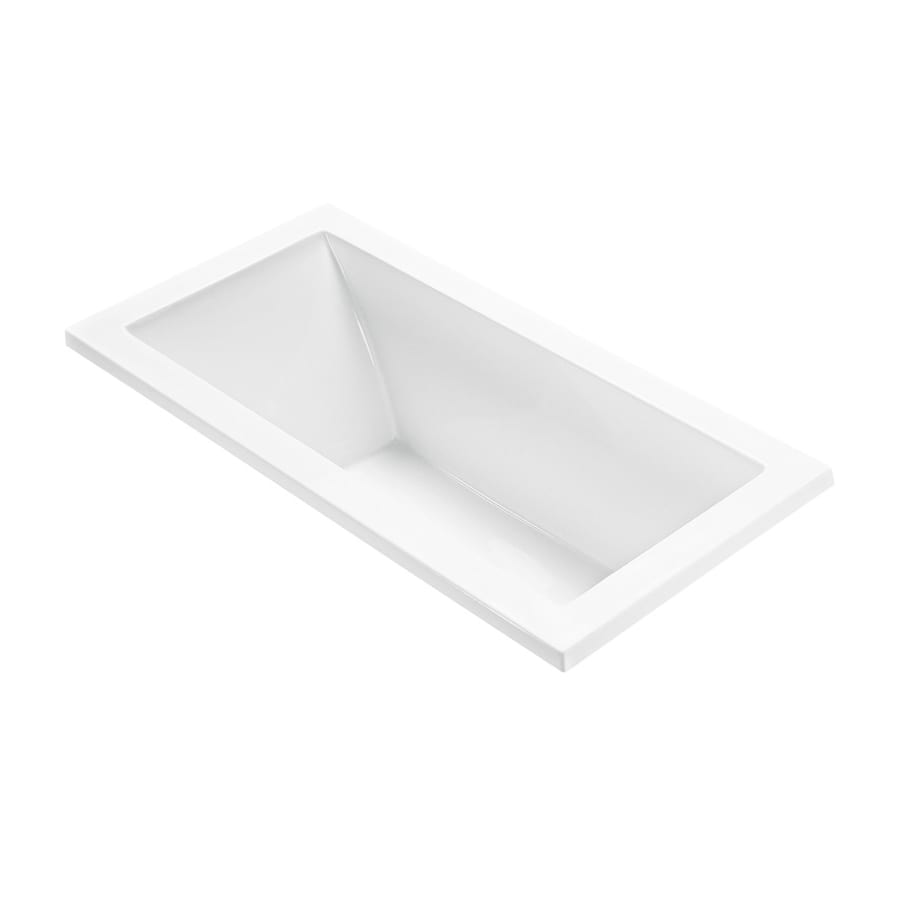

Note: Main image and gallery images depict a soaking tub. This product does include air and whirlpool features mentioned.
Covered under MTI Baths’ limited lifetime warranty and 2 year limited commercial warranty
Acrylic construction maintains heat longer and is easy to clean
Combination air-whirlpool tub provide a relaxing and invigorating bathing experience
Installs in a undermount configuration
Reversible drain placement – drain assembly sold separately
Pump is reversible – can be installed on either side
Includes ultra-quiet blower
Digital controls
Includes overflow assembly
Made in America
MTI Baths AW105-UM Specifications:
Overall Height: 19-1/4″ (bottom to top)
Overall Length: 60″ (left to right)
Overall Width: 30″ (back to front)
Basin Length: 42″ (left to right of bottom basin)
Basin Width: 19″ (front to back of bottom basin)
Basin Depth: 18-1/2″ (bottom of basin to tub rim)
Maximum Water Capacity: 69 gallons
Water Depth: 15-1/2″
Horsepower: 2 HP
Amperage: 15 A
Number of Jets: 26
Additional MTI Baths Links
Browse all MTI Baths Products
MTI Baths Andrea 15 Collection
Specifications
| Height | 19.25 in. |
| Product Weight | 109 lbs. |
| Width | 30 in. |
| Nominal Width | 30 in. |
| Length | 60 in. |
| Depth | 18.5 in. |
| Nominal Length | 60 in. |
| Capacity (Gallons) | 69 |
| Water Depth | 15.5 in. |
| Overflow Height | 15.5 in. |
| Material | Acrylic |
| Thermostat | Modern |
| Insulation Type | Undermount |
| Drain Placement | Left, Reversible, Right |
| Control Type | Electronic, Digital |
| Overflow | Yes |
| Apron Front | No |
| Number Of Bathers | 1 |
| Slip Resistant | No |
| Tub Shape | Rectangular |
| Accepts Deck Mount Faucet | Yes |
| Self Leveling Base | Yes |
| Sound Dampening | No |
| Number of Jets | 26 |
| Pump Placement | Right, Left, Reversible |
| Voltage | 110 |
| Amperage | 15 |
| Horsepower | 2 |
| ADA | No |
| Certifications | ANSI, CSA |
| Collection | Designer |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| ANSI Certification | Z124.1-95 |
| Commercial Warranty | 2 Year Limited |
| Made in America | Yes |
| Drain Assembly Included | No |
| Handshower Included | No |
| Light Included | No |
| Heater Included | No |
| Faucet Included | No |
| Tile Flange | No |
| Color | White |
