Newport Brass offers bath, shower and accessory solutions that perfectly complement your lavatory faucet selection and are built to withstand the rigors of day-to-day, year after year use.

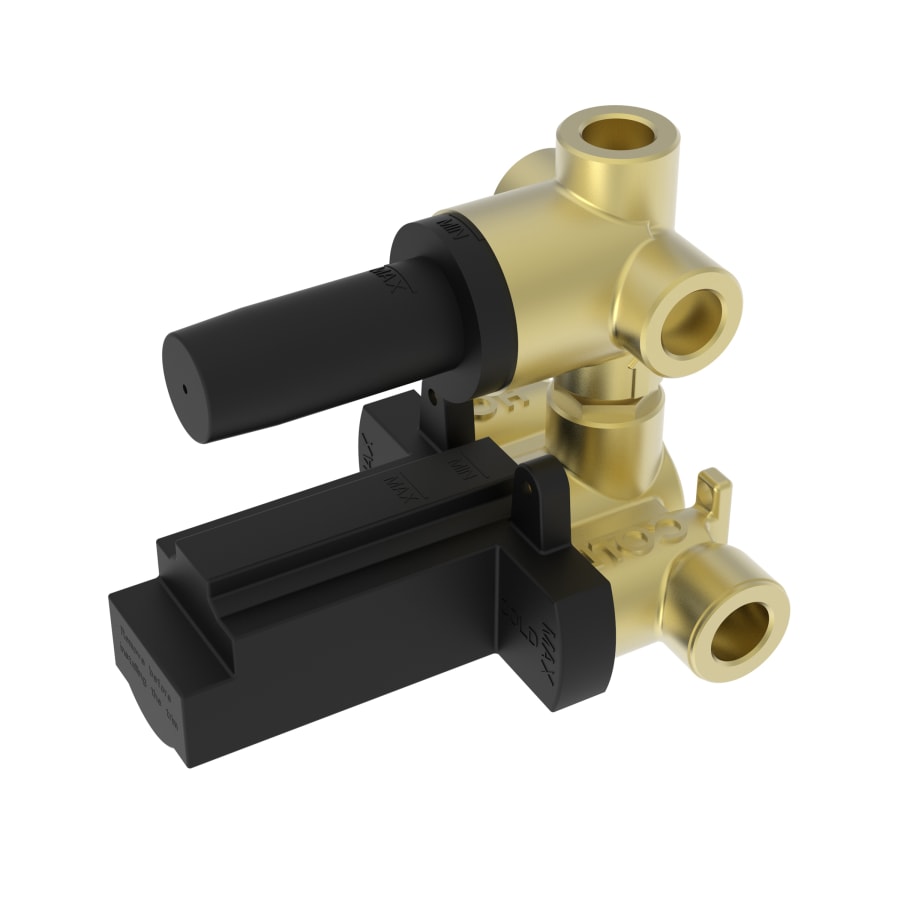

Newport Brass 1-744 Features:
Covered under Newport Brass’ 1 year warranty
Constructed of brass
3 way diverter configuration
Single port flow function with complete shut-off between unused ports
Provides anti-scald protection and temperature regulation
High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
Built in check valves with service stops
1/2″ NPT female thread (inlet and outlet) valve body
Requires Newport Brass LuxTherm trim (many options available, sold-separately)
Flow rate of 6.75 gallons per minute at 60 psi
Newport Brass 1-744 Specifications:
Height: 6-5/16″
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Luxtherm Collection
Specifications
| Height | 6.34 in. |
| Product Weight | 4.25 lbs. |
| Width | 5.43 in. |
| Water Connection | 1/2" |
| Certifications | ASSE, UPC, ASME, CSA |
| Manufacturer Warranty | 1 Year |
| Approved for Commercial Use | Yes |
| Country Of Origin | Italy |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| CSA Code | B125.1 |
| ASSE Code | 1016 |
| Material | Brass |
| Water Connection Type | NPT |
| Valve Type | Thermostatic |
| Scald Guard | Yes |
| Volume Control | No |
| Service Stops Included | Yes |
