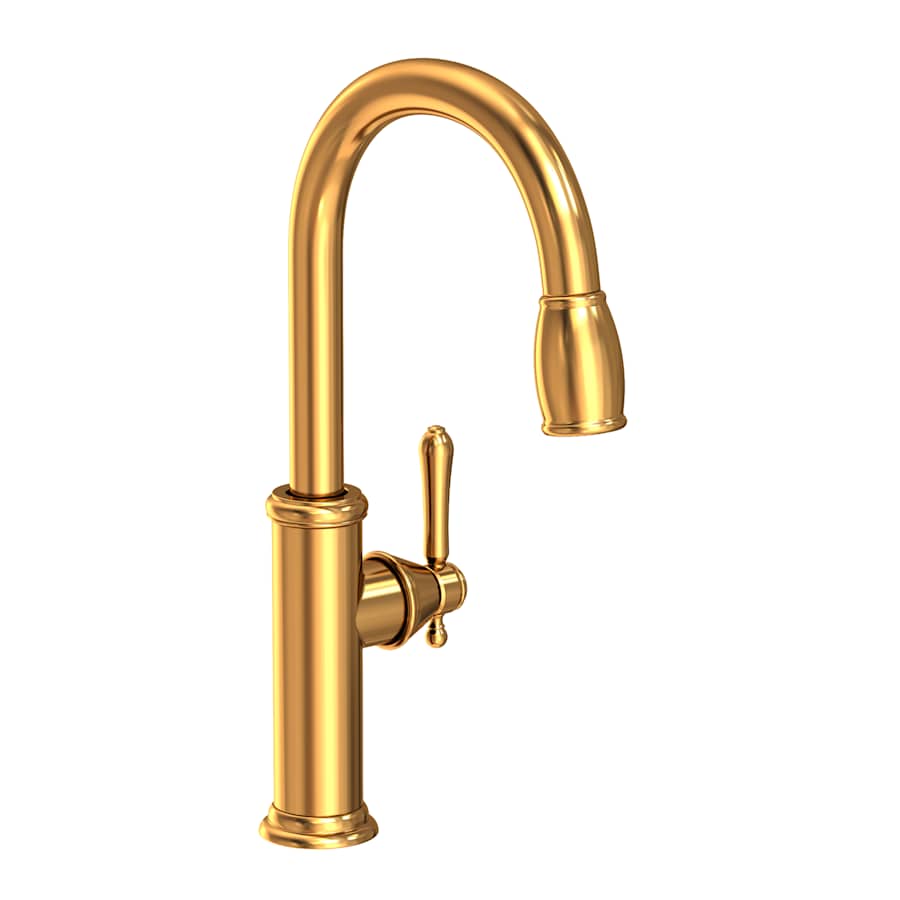

Chesterfield’s ornate, yet elegant design reflects old world craftsmanship and traditional styling; reminiscent of yesteryear.
Newport Brass 1030-5103 Features:
Covered under Newport Brass’s limited lifetime warranty and limited lifetime commercial warranty
Faucet body constructed of brass
Coordinates with products from the Chesterfield line
Single hole mounting type
Deck mounted faucet installs directly to sink or countertop
Pull-down spray with 2 spray functions
Swivel spout allows for greater access to all areas of the sink
Includes cartridge
Mounting hardware included
Low lead compliant
Newport Brass 1030-5103 Specifications:
Height: 17-7/16″ (deck to top of faucet)
Spout Height: 10-5/16″ (deck to spout outlet)
Spout Reach: 8-9/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: 1 (holes needed to install faucet)
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 2-13/16″ (from deck bottom to top of deck)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Chesterfield Collection
Specifications
| Height | 17.43 in. |
| Product Weight | 8.95 lbs. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 1.8 |
| Max Deck Thickness | 2.79 in. |
| Spout Height | 10.31 in. |
| Spout Reach | 8.58 in. |
| Water Connection | 3/8" |
| Faucet Hole Size | 1.38 in. |
| Hose Length | 12 in. |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Filtering | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Thermostat | Traditional |
| Electronic | No |
| Faucet Holes | 1 |
| Handle Material | Brass |
| Mounting Type | Single Hole |
| Number Of Handles | 1 |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Handle Style | Lever |
| Faucet Type | Kitchen Faucet |
| Pre Rinse | No |
| Pullout Spray | Yes |
| Spray Settings | 2 |
| Pullout Direction | Down |
| Water Connection Type | Compression |
| Touchless Faucet | No |
| Smart Home | No |
| Bridge Faucet | No |
| Magnetic Docking | Yes |
| Voice Activated | No |
| Approved for Commercial Use | Yes |
| Collection | Chesterfield |
| Manufacturer Warranty | Limited Lifetime |
| Low Lead Compliant | Yes |
| ADA | No |
| CA Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Certifications | ANSI, ASME, CSA |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| ANSI Certification | A117.1 |
| Commercial Warranty | Limited Lifetime |
| Color | Aged Brass, Antique Brass, Antique Copper, Antique Nickel, Biscuit, English Bronze, Flat Black, Forever Brass (PVD), French Gold (PVD), Gloss Black, Gun Metal, Matte White, Midnight Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze (Hand Relieved), Polished Brass Uncoated (Living), Polished Chrome, Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Satin Brass (PVD), Satin Bronze (PVD), Satin Gold (PVD), Satin Nickel, Satin Vintage Copper (PVD), Stainless Steel (PVD), Venetian Bronze, Vintage Copper (PVD), Weathered Brass, Weathered Copper (Living), White |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Neutrals, Nickel Tones, Silver Tones, Stainless Steel, Whites |
