Chesterfield’s ornate, yet elegant design reflects old world craftsmanship and traditional styling; reminiscent of yesteryear.

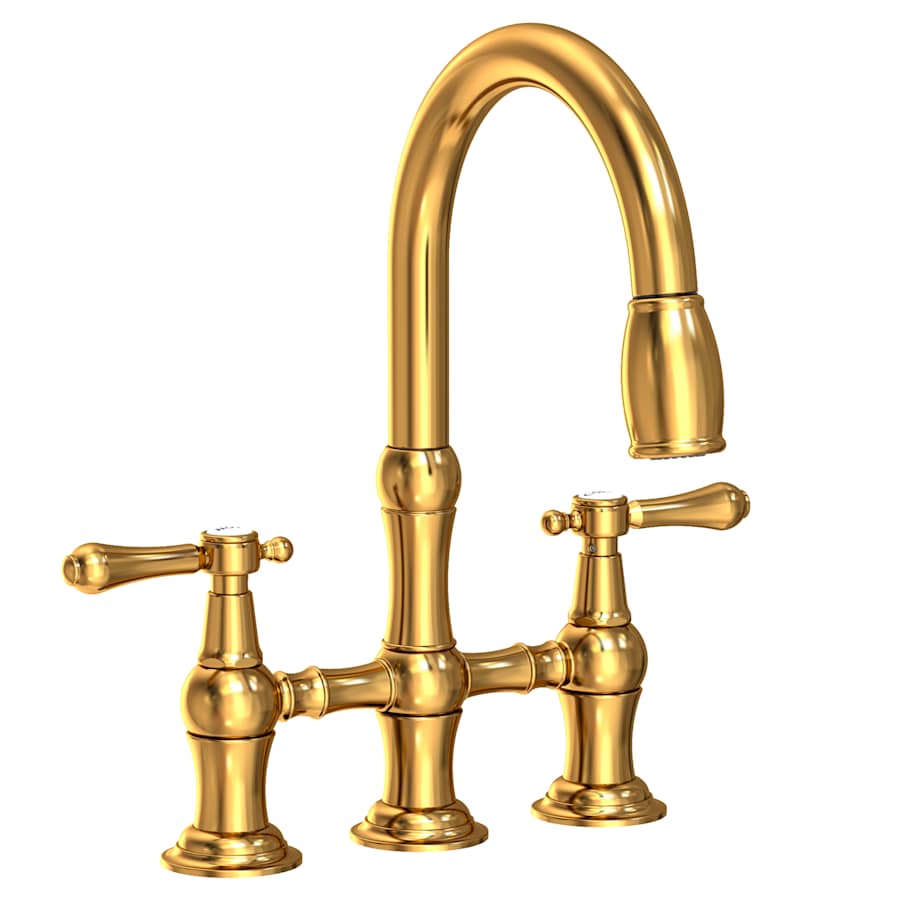

Newport Brass 1030-5463 Features:
Faucet body constructed of brass
Coordinates with products from the Chesterfield line
Widespread bridge-style design
Deck mounted faucet installs directly to sink or countertop
Pull-down spray with 2 spray functions
Swivel spout allows for greater access to all areas of the sink
Double lever handles control the flow and temperature of water
Includes washerless cartridge
Mounting hardware included
Low lead compliant
Newport Brass 1030-5463 Specifications:
Height: 15-7/16″ (deck to top of faucet)
Spout Height: 8-1/4″ (deck to spout outlet)
Spout Reach: 8-9/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: 3 (holes needed to install faucet)
Faucet Centers: 8″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 1-7/16″ (from deck bottom to top of deck)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Chesterfield Collection
Specifications
| Faucet Centers | 8 in. |
| Height | 15.41 in. |
| Product Weight | 10 lbs. |
| Water Connection | 3/8" |
| Flow Rate (GPM) | 1.8 |
| Max Deck Thickness | 1.45 in. |
| Spout Height | 8.28 in. |
| Spout Reach | 8.58 in. |
| Faucet Hole Size | 1.38 in. |
| Faucet Holes | 3 |
| Insulation Type | Deck Mounted |
| Thermostat | Traditional |
| Material | Brass |
| Bridge Faucet | Yes |
| Faucet Type | Kitchen Faucet |
| Handle Style | Lever |
| Mounting Type | Bridge, Widespread |
| Number Of Handles | 2 |
| Pre Rinse | No |
| Pullout Direction | Down |
| Pullout Spray | Yes |
| Spout Type | Swivel |
| Spray Settings | 2 |
| Valve Type | Washerless |
| Water Efficient | Yes |
| Smart Home | No |
| Handle Material | Brass |
| Electronic | No |
| Water Connection Type | Compression |
| Touchless Faucet | No |
| Magnetic Docking | Yes |
| Voice Activated | No |
| ADA | No |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Collection | Chesterfield |
| Country Of Origin | USA |
| Low Lead Compliant | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Certifications | ANSI, ASME, CSA, EPA, NSF, UPC |
| ANSI Certification | A117.1 |
| Made in America | Yes |
| ASSE Code | A112.18.1, A112.18.3 |
| Commercial Warranty | 1 Year Limited |
| CSA Code | B125.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Filtering | No |
| Handshower Included | Yes |
| Installation Hardware Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Color | Aged Brass, Antique Brass, Antique Copper, Antique Nickel, English Bronze, Flat Black, Forever Brass (PVD), French Gold (PVD), Matte White, Midnight Chrome, Oil Rubbed Bronze, Polished Brass Uncoated (Living), Polished Chrome, Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Satin Brass (PVD), Satin Bronze (PVD), Satin Gold (PVD), Satin Nickel (PVD), Stainless Steel (PVD), Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Nickel Tones, Silver Tones, Stainless Steel, Whites |
