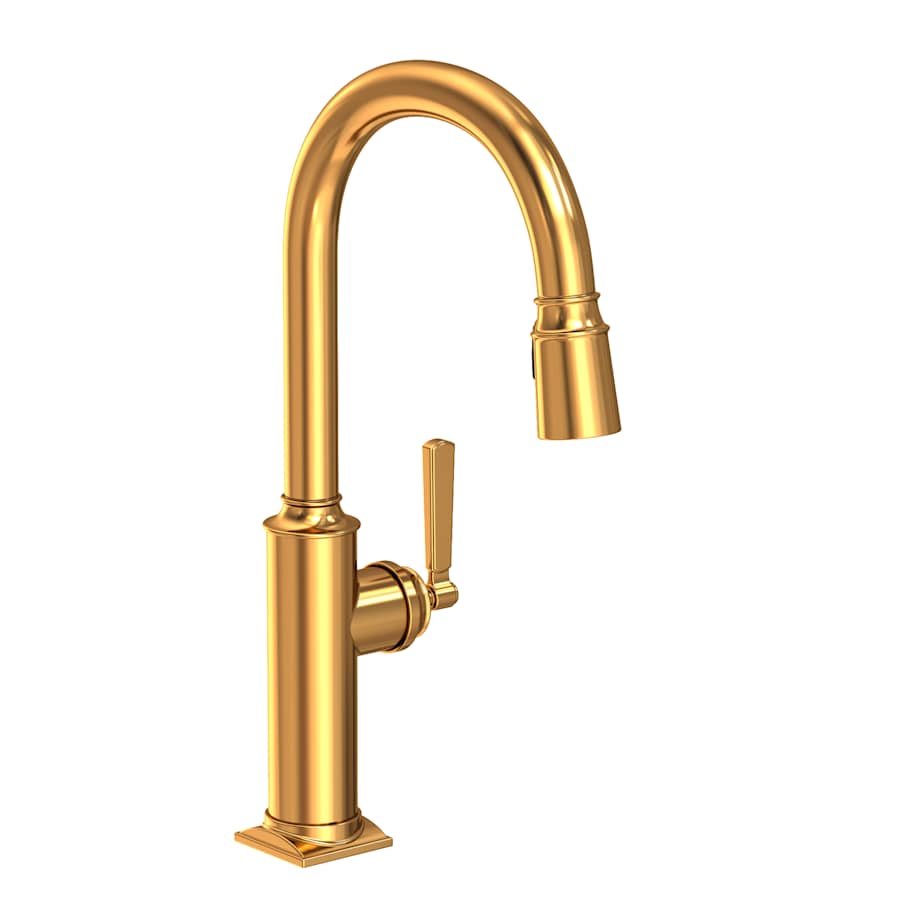

The valiant Adams series delivers a sleek industrial aesthetic by incorporating a decorative blade handle with a uniquely squared base. Each faucet is comprised of solid brass for the utmost in durability and engineered with a durable ceramic disk cartridge to ensure long-lasting performance.
Newport Brass 3170-5103 Features:
Covered under Newport Brass’ limited 10 year functionality warranty; warranties may differ per finish – please review “Warranty” documentation for details
Faucet body constructed of brass
Coordinates with products from the Adams line
Single hole mounting type
Deck mounted faucet installs directly to sink or countertop
Pull-down spray with 2 spray functions
Magnetic docking system secures spray engine to spout
Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
Single lever handle controls the flow and temperature of water
Includes Euromotion ceramic disc valve cartridge
Mounting hardware included
Complies with ADA standards
Low lead compliant
Made in America
NOTE: Uncoated and Living finishes such as Uncoated Polished Brass (03N) and Weathered Copper (08W) naturally weather and change color over time – Living and uncoated finishes are not warranted and are non-returnable
Newport Brass 3170-5103 Specifications:
Height: 17-1/2″ (deck to top of faucet)
Spout Height: 10-1/2″ (deck to spout outlet)
Spout Reach: 8-9/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 2-11/16″ (from deck bottom to top of deck)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Adams Collection
Specifications
| Product Weight | 8.95 lbs. |
| Height | 17.53 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.375 in. |
| Flow Rate (GPM) | 1.8 |
| Hose Length | 12 in. |
| Max Deck Thickness | 2.69 in. |
| Spout Height | 10.5 in. |
| Spout Reach | 8.57 in. |
| Spout Swivel | 360 Degrees |
| Water Connection | 3/8" |
| Thermostat | Transitional |
| Material | Brass |
| Faucet Holes | 1 |
| Faucet Type | Kitchen Faucet |
| Handle Material | Brass |
| Handle Style | Lever |
| Insulation Type | Deck Mounted |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Direction | Down |
| Pullout Spray | Yes |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | Compression |
| Water Efficient | Yes |
| Electronic | No |
| Mounting Type | Single Hole |
| Smart Home | No |
| Spray Settings | 2 |
| Bridge Faucet | No |
| Touchless Faucet | No |
| Voice Activated | No |
| Magnetic Docking | Yes |
| Collection | Adams |
| Certifications | ANSI, ASME, CSA, EPA, NSF, UPC |
| Country Of Origin | USA |
| Manufacturer Warranty | 10 Year Limited, Limited Lifetime Finish |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Made in America | Yes |
| Commercial Warranty | 1 Year Limited |
| ASSE Code | A112.18.1, A112.18.3 |
| CSA Code | B125.1 |
| ANSI Certification | 372, 61, A117.1 |
| Escutcheon Included | No |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Installation Hardware Included | Yes |
| Color | Aged Brass, Antique Brass, Antique Copper, Antique Nickel, English Bronze, Flat Black, Forever Brass, French Gold (PVD), Matte White, Midnight Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze - Hand Relieved, Polished Brass Uncoated (Living), Polished Chrome, Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Satin Brass (PVD), Satin Bronze (PVD), Satin Gold (PVD), Satin Nickel, Stainless Steel - PVD, Venetian Bronze, Weathered Copper (Living) |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Nickel Tones, Silver Tones, Stainless Steel, Whites |
