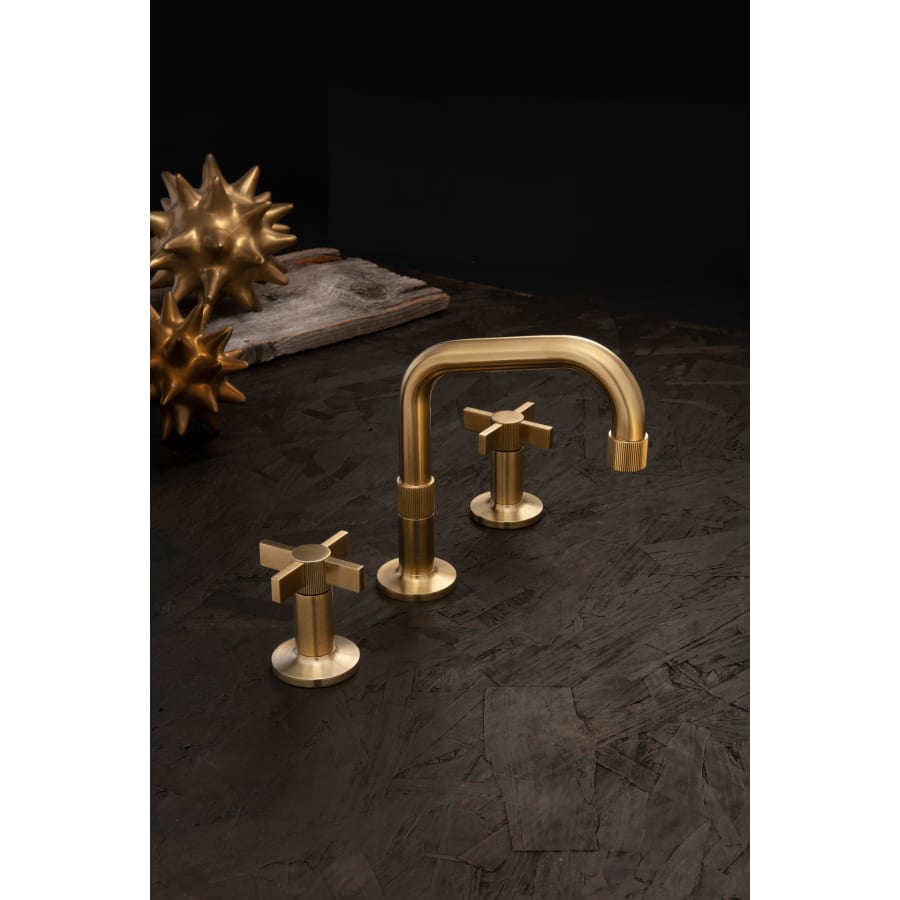

The Pardees collection combines smooth surfaces and coin edged highlights to create a sleek industrial aesthetic. The ridged edges perfectly complement the otherwise minimalist design.

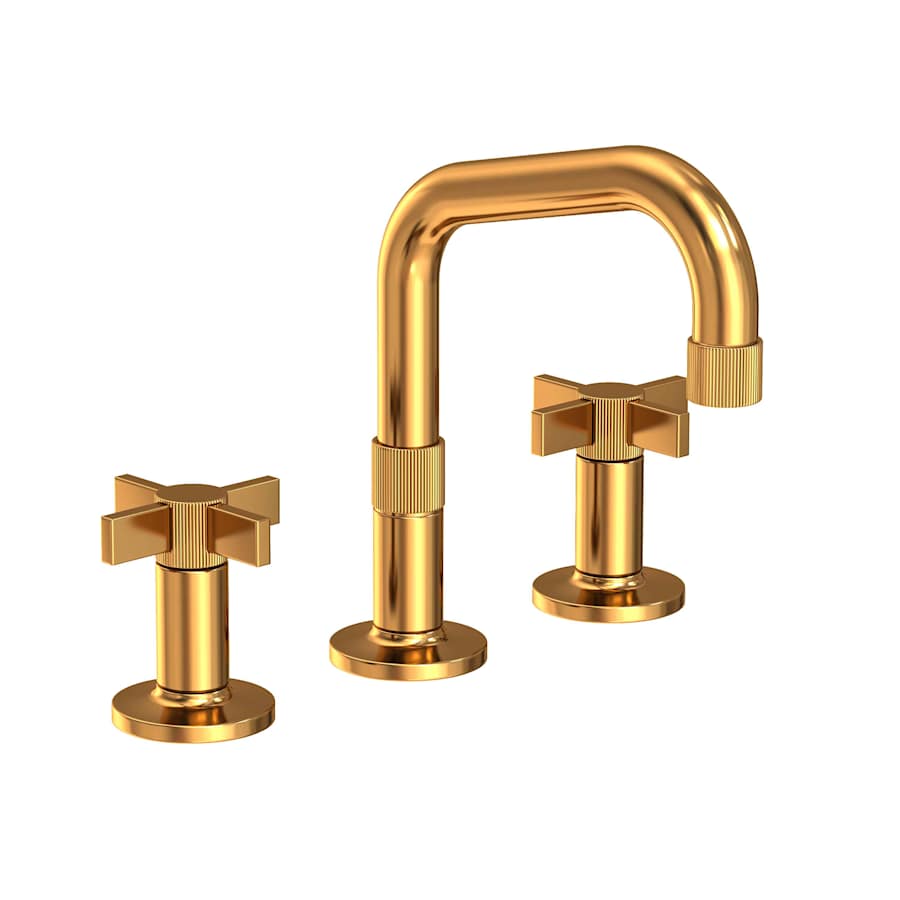

Newport Brass 3240 Features:
Covered under Newport Brass’s limited lifetime warranty and limited lifetime commercial warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the Pardees line
Widespread mounting type – 3 hole faucet with 8″ centers
Deck mounted installation – 3 hole faucet mounts directly to sink or countertop
2 cross handles control the flow and temperature of water
Faucet includes washerless valve
Pop-up drain assembly included
All hardware required for installation is included
Complies with ADA standards
Low lead compliant
Newport Brass 3240 Specifications:
Height: 8-1/8″ (deck to top of faucet)
Spout Height: 5″ (deck to spout outlet)
Spout Reach: 6-1/8″ (faucet base to spout outlet)
Flow Rate: 1.2 gallons-per-minute
Faucet Centers: 8″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 1-5/8″ (cannot mount on thicker decks)
Faucet Hole Size: 1-3/8″
Faucet Holes: 3 (minimum number of holes required for installation)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Pardees Collection
Specifications
| Height | 8.15 in. |
| Product Weight | 8.5 lbs. |
| Flow Rate (GPM) | 1.2 |
| Spout Height | 5 in. |
| Spout Reach | 6.13 in. |
| Faucet Centers | 8 in. |
| Faucet Hole Size | 1.38 in. |
| Max Deck Thickness | 1.63 in. |
| Water Connection | 1/2" |
| Material | Brass |
| Thermostat | Industrial |
| Insulation Type | Deck Mounted |
| Bridge Faucet | No |
| Handle Style | Cross |
| Spout Type | Fixed |
| Valve Type | Washerless |
| Waterfall Faucet | No |
| Handle Material | Brass |
| Number Of Handles | 2 |
| Electronic | No |
| Faucet Holes | 3 |
| Faucet Type | Bathroom Sink Faucet |
| Mounting Type | Widespread |
| Touchless Faucet | No |
| Water Connection Type | NPSM |
| Vessel Faucet | No |
| ADA | Yes |
| Certifications | ANSI, ASME, CSA, NSF, UPC |
| Collection | Pardees |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Commercial Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| CA Drought Compliant | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| WaterSense Certified | Yes |
| Low Lead Compliant | Yes |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Escutcheon Included | Yes |
| Valve Included | Yes |
| Pop-Up Included | Yes |
| Drain Assembly Included | Yes |
| Color | Aged Brass, Antique Brass, Antique Copper, Antique Nickel, English Bronze, Flat Black, Forever Brass (PVD), French Gold (PVD), Gloss Black, Gun Metal, Matte White, Midnight Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze (Hand Relieved), Polished Brass Uncoated (Living), Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Satin Brass (PVD), Satin Bronze (PVD), Satin Gold (PVD), Satin Nickel (PVD), Stainless Steel (PVD), Venetian Bronze, Polished Chrome, White |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Neutrals, Nickel Tones, Silver Tones, Stainless Steel, Whites |
