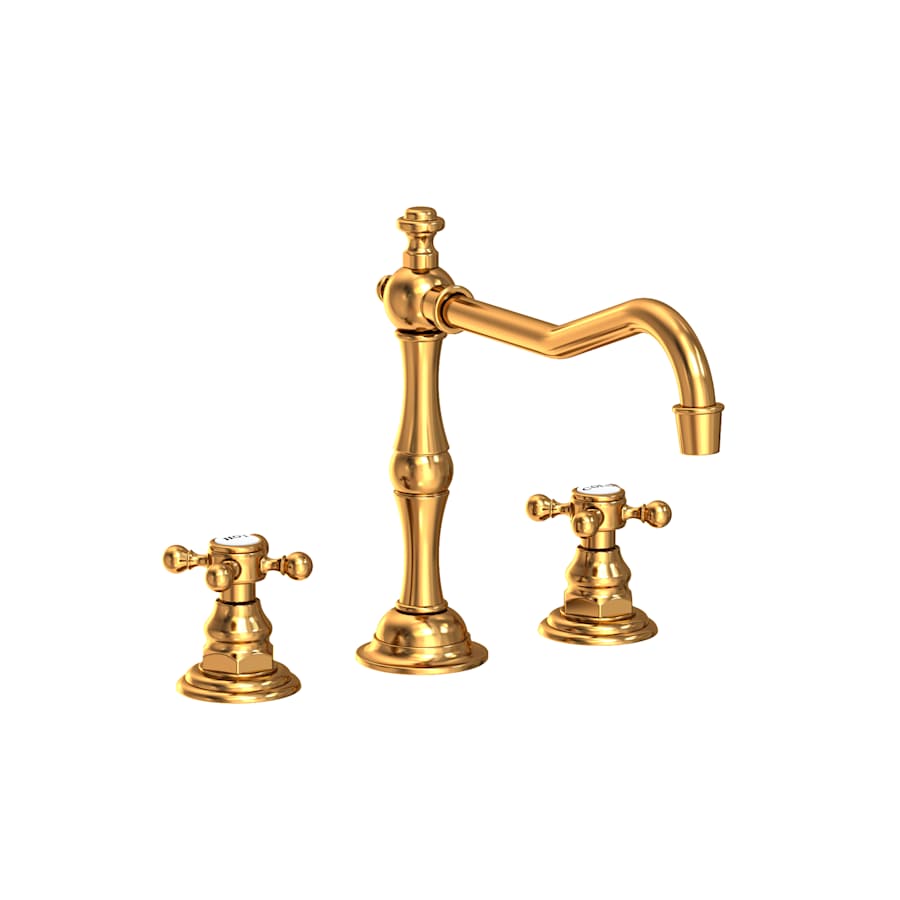

Chesterfield’s ornate, yet elegant design reflects old world craftsmanship and traditional styling; reminiscent of yesteryear.
Newport Brass 942 Features:
Covered under Newport Brass’s limited lifetime warranty and limited lifetime commercial warranty
Faucet body constructed of brass
Coordinates with products from the Chesterfield line
Widespread faucet mounting type – 3 hole faucet with 8″ centers
Deck mounted faucet installs directly to sink or countertop
Swivel spout allows for greater access to all areas of the sink
2 cross handles control the flow and temperature of water
Includes cartridge
Mounting hardware included
Complies with ADA standards
Low lead compliant
Newport Brass 942 Specifications:
Height: 8-3/4″ (deck to top of faucet)
Spout Height: 5-13/16″ (deck to spout outlet)
Spout Reach: 9-7/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: 3 (holes needed to install faucet)
Faucet Centers: 8″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 1-1/8″ (from deck bottom to top of deck)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Chesterfield Collection
Specifications
| Height | 8.74 in. |
| Product Weight | 11.25 lbs. |
| Faucet Centers | 8 in. |
| Flow Rate (GPM) | 1.8 |
| Faucet Hole Size | 1.38 in. |
| Max Deck Thickness | 1.13 in. |
| Spout Height | 5.83 in. |
| Spout Reach | 9.46 in. |
| Spout Swivel | 360 Degrees |
| Water Connection | 1/2" |
| Overflow Height | 8.5 in. |
| Material | Brass |
| Thermostat | Traditional |
| Faucet Holes | 3 |
| Insulation Type | Deck Mounted |
| Water Efficient | Yes |
| Bridge Faucet | No |
| Electronic | No |
| Faucet Type | Kitchen Faucet |
| Handle Style | Cross |
| Magnetic Docking | No |
| Mounting Type | Widespread |
| Number Of Handles | 2 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Touchless Faucet | No |
| Valve Type | Ceramic Disc |
| Voice Activated | No |
| Water Connection Type | NPSM |
| Handle Material | Brass |
| Smart Home | No |
| Approved for Commercial Use | Yes |
| Collection | Chesterfield |
| Commercial Warranty | Limited Lifetime |
| Manufacturer Warranty | Limited Lifetime |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Eco Friendly | No |
| ANSI Certification | A117.1 |
| Installation Hardware Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Color | Aged Brass, Almond, Antique Brass, Antique Copper, Antique Nickel, Biscuit, Bone, English Bronze, Flat Black, Forever Brass (PVD), French Gold (PVD), Gloss Black, Gun Metal, Hammered Antique Copper, Matte White, Midnight Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze (Hand Relieved), Polished Brass Uncoated (Living), Polished Copper, Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Polished Silver, Red, Satin Brass (PVD), Satin Bronze (PVD), Satin Chrome, Satin Gold (PVD), Satin Silver, Satin Vintage Copper (PVD), Simulated Wrought Iron, Stainless Steel (PVD), Venetian Bronze, Verde Green, Vintage Copper (PVD), Weathered Brass, Weathered Copper (Living), Polished Chrome, Satin Nickel, White |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Greens, Neutrals, Nickel Tones, Reds, Silver Tones, Stainless Steel, Whites |
Reviews
There are no reviews yet.
