Chesterfield’s ornate, yet elegant design reflects old world craftsmanship and traditional styling; reminiscent of yesteryear.

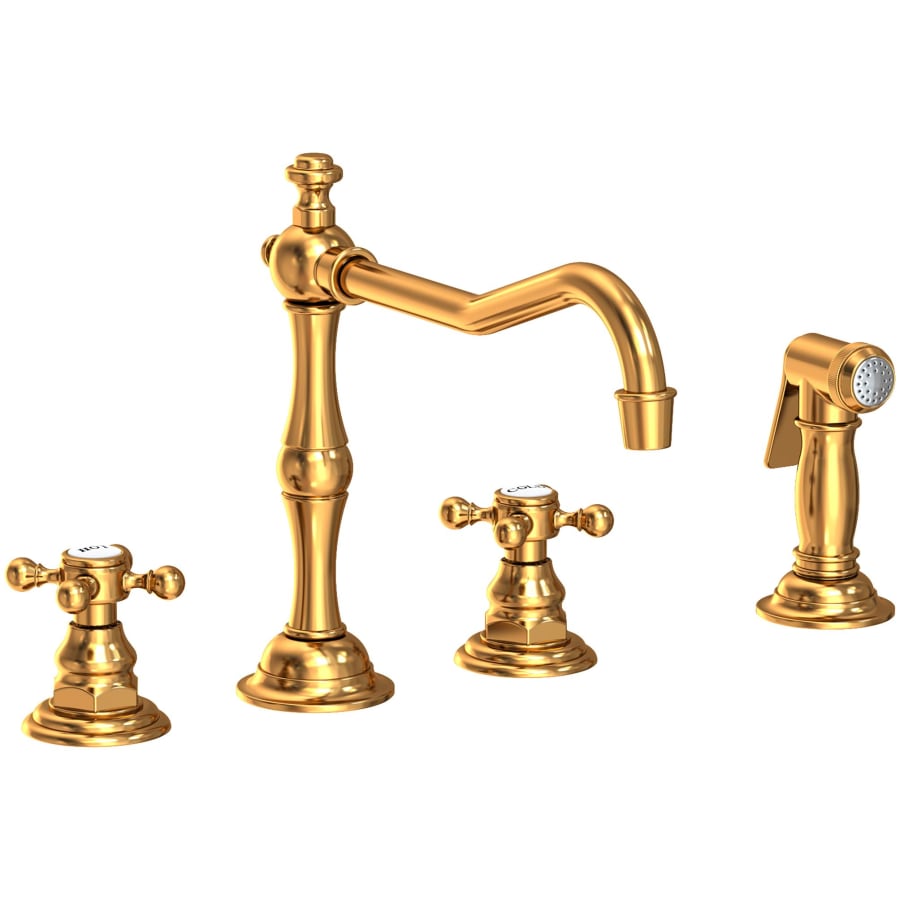

Newport Brass 943 Features:
Covered under Newport Brass’s limited lifetime warranty and limited lifetime commercial warranty
Faucet body constructed of brass
Coordinates with products from the Chesterfield line
Widespread faucet mounting type – 3 hole faucet with 8″ centers
Deck mounted faucet installs directly to sink or countertop
Swivel spout allows for greater access to all areas of the sink
2 cross handles control the flow and temperature of water
Includes cartridge
Mounting hardware included
Low lead compliant
Newport Brass 943 Specifications:
Height: 8-1/2″ (deck to top of faucet)
Spout Height: 5-9/16″ (deck to spout outlet)
Spout Reach: 9-1/2″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: 3 (holes needed to install faucet)
Faucet Centers: 8″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-1/4″
Max Deck Thickness: 1-7/16″ (from deck bottom to top of deck)
Additional Newport Brass Links
View the Manufacturer Warranty
Browse all Newport Brass Products
Newport Brass Chesterfield Collection
Specifications
| Height | 8.5 in. |
| Product Weight | 9.05 lbs. |
| Faucet Centers | 8 in. |
| Flow Rate (GPM) | 1.8 |
| Water Connection | 1/2" |
| Faucet Hole Size | 1.25 in. |
| Max Deck Thickness | 1.41 in. |
| Spout Height | 5.56 in. |
| Spout Reach | 9.49 in. |
| Spout Swivel | 360 Degrees |
| Overflow Height | 8.5 in. |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Thermostat | Traditional |
| Faucet Holes | 3 |
| Handle Material | Brass |
| Handle Style | Cross |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Spout Type | Swivel |
| Mounting Type | Widespread |
| Faucet Type | Kitchen Faucet |
| Water Connection Type | NPSM |
| Water Efficient | Yes |
| Pre Rinse | No |
| Pullout Spray | No |
| Smart Home | No |
| Bridge Faucet | No |
| Electronic | No |
| Touchless Faucet | No |
| Voice Activated | No |
| Magnetic Docking | No |
| ADA | No |
| Collection | Chesterfield |
| Approved for Commercial Use | Yes |
| Commercial Warranty | Limited Lifetime |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.18.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Eco Friendly | No |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Sidespray | Yes |
| Soap Dispenser Included | No |
| Color | Aged Brass, Almond, Antique Brass, Antique Copper, Antique Nickel, Biscuit, Bone, English Bronze, Flat Black, Forever Brass (PVD), French Gold (PVD), Gloss Black, Gun Metal, Hammered Antique Copper, Matte White, Midnight Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze (Hand Relieved), Polished Brass Uncoated (Living), Polished Chrome, Polished Copper, Polished Gold (PVD), Polished Nickel, Polished Nickel (PVD), Polished Silver, Red, Satin Brass (PVD), Satin Bronze (PVD), Satin Chrome, Satin Gold (PVD), Satin Nickel, Satin Silver, Satin Vintage Copper (PVD), Simulated Wrought Iron, Stainless Steel (PVD), Venetian Bronze, Verde Green, Vintage Copper (PVD), Weathered Brass, Weathered Copper (Living), White |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Greens, Neutrals, Nickel Tones, Reds, Silver Tones, Stainless Steel, Whites |
