Features:
Easy to install and adjust
Consistent and dependable door control
Ease of use with a smooth operationÂ
Adjustable to use with most door conditions and environments
Storefront uses: convenience stores, warehouse doors and retail/outlet malls
Aftermarket uses: office doors, utility doors and storage doors
Independent latch, sweep and backcheck intensity valves

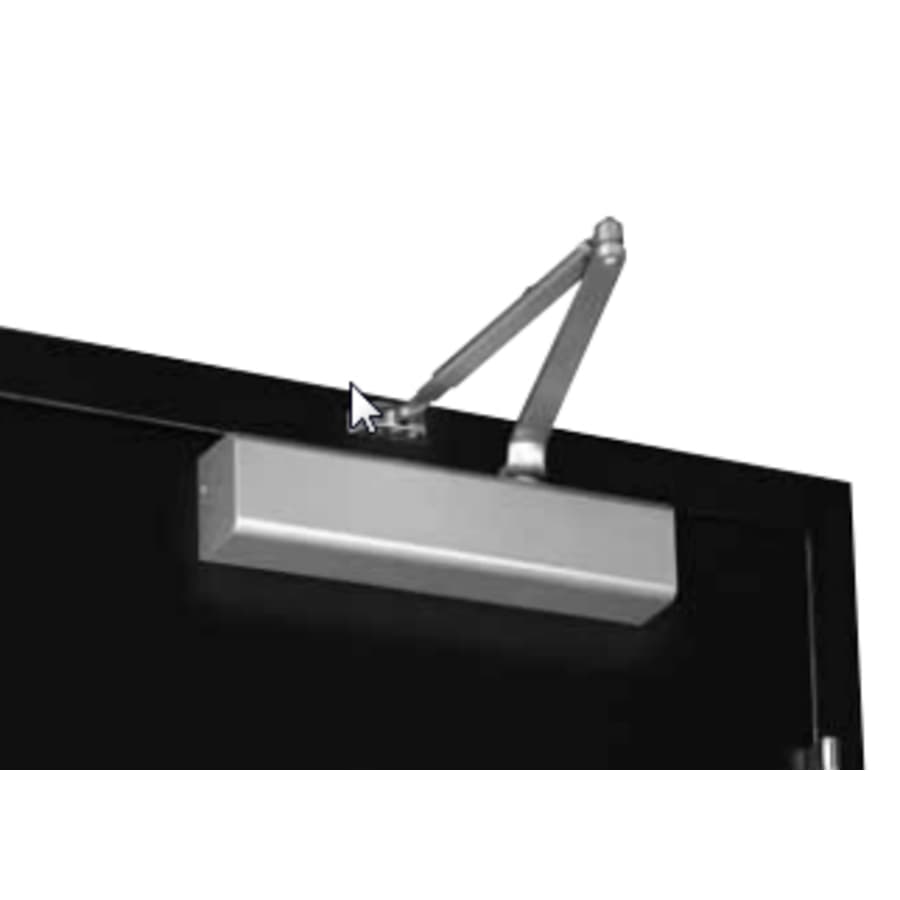

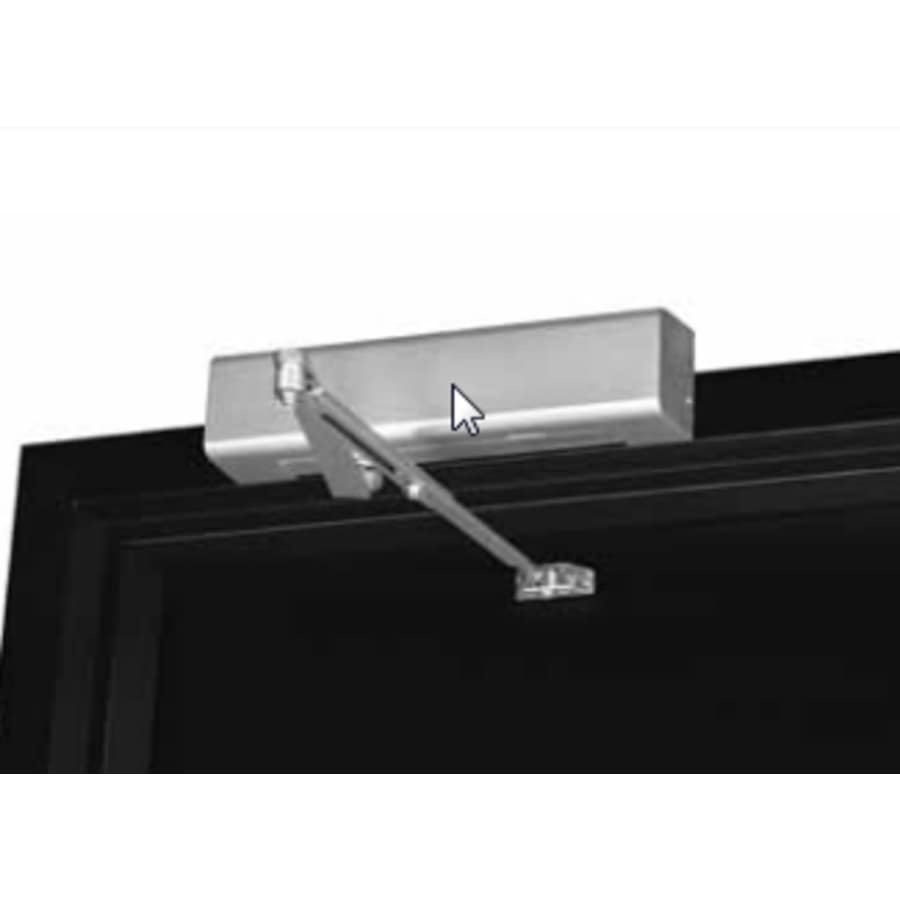

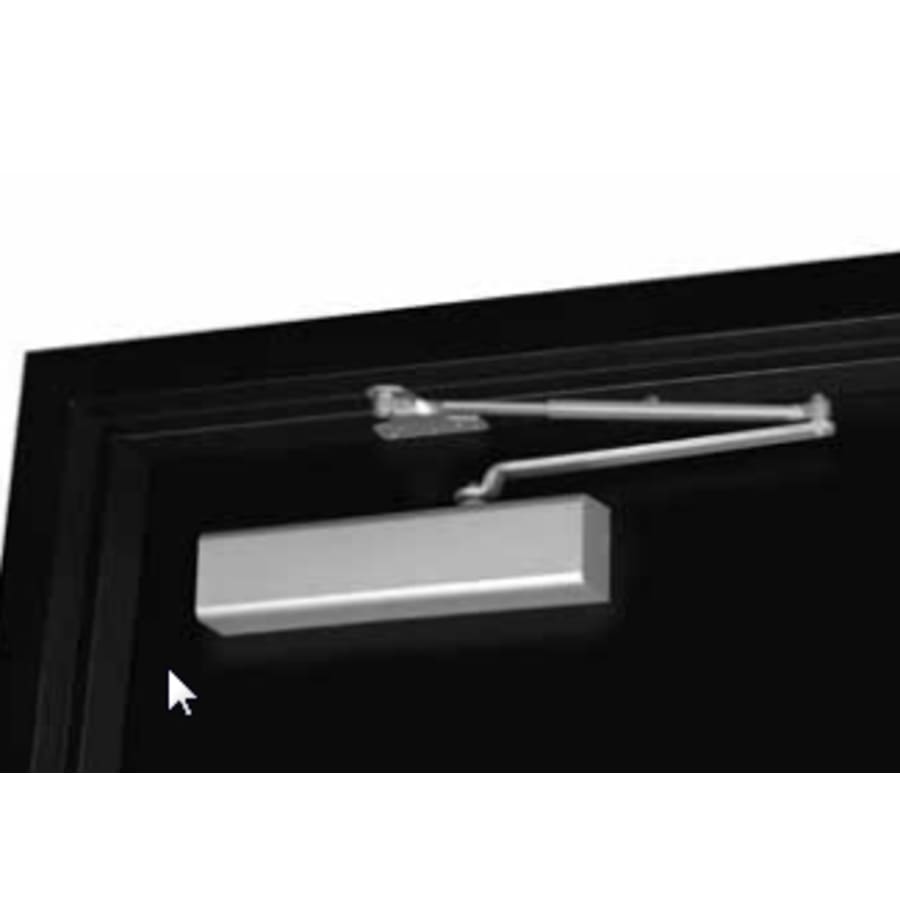

Choose from Regular, Parallel, or Top Jamb mounting applications (all three included)
Adjustable spring size 1 through 6
Cast aluminum body with plastic cover
Rack-and-pinion design
Non-hold open mechanism keeps door from remaining open after use
Meet requirements for Americans with Disabilities Act (ADA)
UL and cUL Listed for use on fire rated doors
UL10C listed for positive pressure fire test
SN-134 nuts included
Specifications:
Handing: Non-handed
Material: Aluminum, Plastic
Closer footprint: 3/4″ x 12″
Projection: 2-1/8″
Cover dimensions: 2-15/16″ high x 2-1/8″ deep x 13-1/16″ long
Mounting: Regular, Parallel, Top Jamb
ANSI Rating: A156.4, A117.1
BHMA Grade: Grade 1
ADA Compliant: Yes
Manufacturer Warranty: 10-year limited warranty
Additional Norton Links
View the Manufacturer Warranty
Browse all Norton Products
Norton 210 Collection
Specifications
| Height | 2 in. |
| Projection | 2.125 in. |
| Closer Body Length | 12 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 12 in. |
| Spud Size | 1-6 |
| Vertical Mounting Holes | .75 in. |
| Material | Aluminum, Plastic |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Arm Type | Standard |
| Barrier Free | Yes |
| Handshower | Reversible |
| Hold Open | No |
| Mounting | Regular, Parallel, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| ADA | Yes |
| Certifications | ANSI, UL10C, UL |
| Collection | 210 |
| Manufacturer Warranty | 15 Year |
| Approved for Commercial Use | Yes |
| Series | 210 |
| ANSI Certification | A156.4, A117.1 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Usage Level | Standard Duty |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Statuary Bronze |
