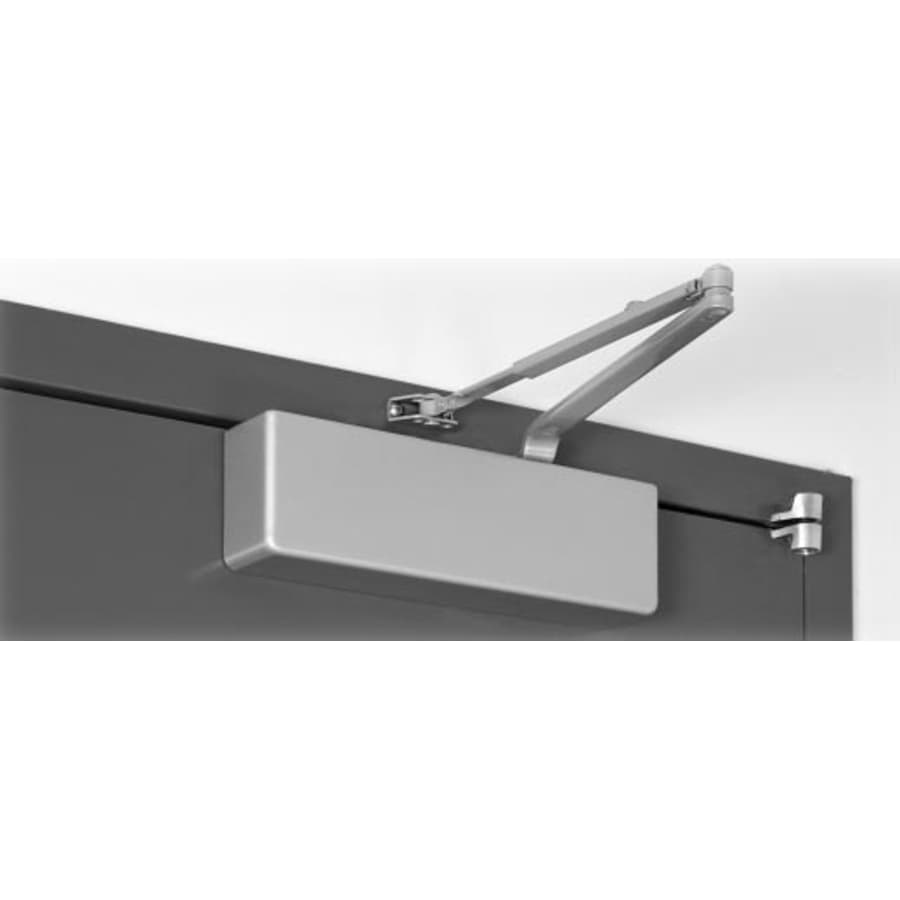

7500 Collection Delayed Action Door Closer Body
Need to replace a part on your door closer, but don’t want to buy the whole thing? Norton makes it quick and easy by selling replacement parts such as this. This delayed action door closer body can turn costly into affordable in an instant.
The series 7500 door closers are designed to comply with requirements of the Americans with Disabilities Act (A.D.A.) and ANSI standard A117.1. All series 7500/7700 door closers are ANSI/BHMA A156.4 Grade 1 certified. Those with non-hold open arms are UL listed for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies.
Features:
Aluminum Construction
Designed for 7500 Series Door Closers
Delayed Action Function
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability.
Additional Norton Links
View the Manufacturer Warranty
Browse all Norton Products
Norton 7500 Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | 7500 |
| Manufacturer Warranty | 25 Year |
| Certifications | ANSI, UL10C, UL |
| ANSI Certification | A156.4 |
| Series | 7500 |
| BHMA Certification | Grade 1 |
| Usage Level | Standard Duty |
| Fire Rated | Yes |
| Height | 3.875 in. |
| Projection | 2.125 in. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Max Door Width | 54 in. |
| Closer Body Length | 13.625 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 6.75 in. |
| Max Door Opening | 180 Degrees |
| Vertical Mounting Holes | 6.75 in. |
| Material | Aluminum |
| Handshower | Left, Reversible, Right |
| Hold Open | Yes |
| Barrier Free | Yes |
| Arm Type | Hold Open |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Delay Action | Yes |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| Cushion Stop | No |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
