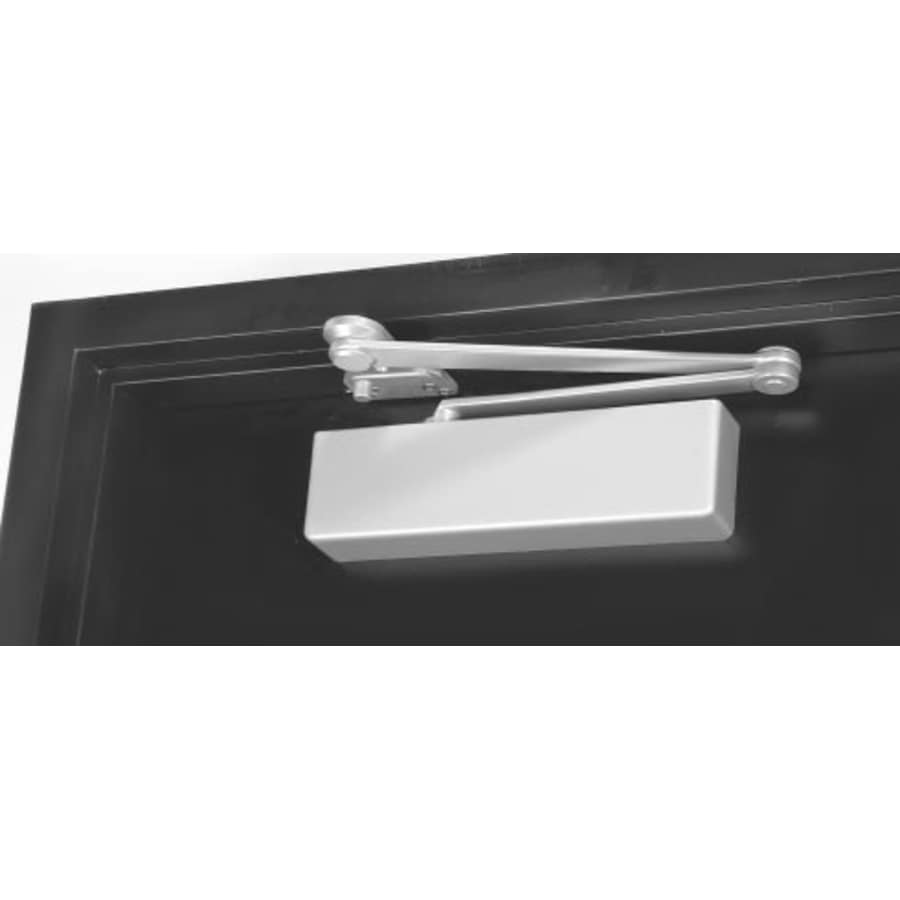

7500 Collection CloserPlus Spring Arm Door Closer
Always looking to improve upon greatness? This CloserPlus Spring Arm system is the prefect way to improve on an already great product. The spring arm contained in this model is state-of-the-art and will not disappoint.
The series 7500 door closers are designed to comply with requirements of the Americans with Disabilities Act (A.D.A.) and ANSI standard A117.1. All series 7500/7700 door closers are ANSI/BHMA A156.4 Grade 1 certified. Those with non-hold open arms are UL listed for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies.
Features:
Aluminum Construction
CloserPlus Spring Arm Function
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability.
Additional Norton Links
View the Manufacturer Warranty
Browse all Norton Products
Norton 7500 Collection
Specifications
| Height | 3.875 in. |
| Projection | 2.125 in. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Closer Body Length | 13.625 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 6.75 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 54 in. |
| Vertical Mounting Holes | 6.75 in. |
| Material | Aluminum |
| Handshower | Left, Reversible, Right |
| Barrier Free | Yes |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Arm Type | CloserPlus |
| Delay Action | No |
| Hold Open | No |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| Approved for Commercial Use | Yes |
| Collection | 7500 |
| Manufacturer Warranty | 25 Year |
| ADA | Yes |
| Series | 7500 |
| Certifications | ANSI, UL10C, UL |
| BHMA Certification | Grade 1 |
| Usage Level | Standard Duty |
| ANSI Certification | A156.4 |
| Fire Rated | Yes |
| Cushion Stop | No |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Statuary Bronze |
| Color Tone | Bronze Tones, Neutrals |
