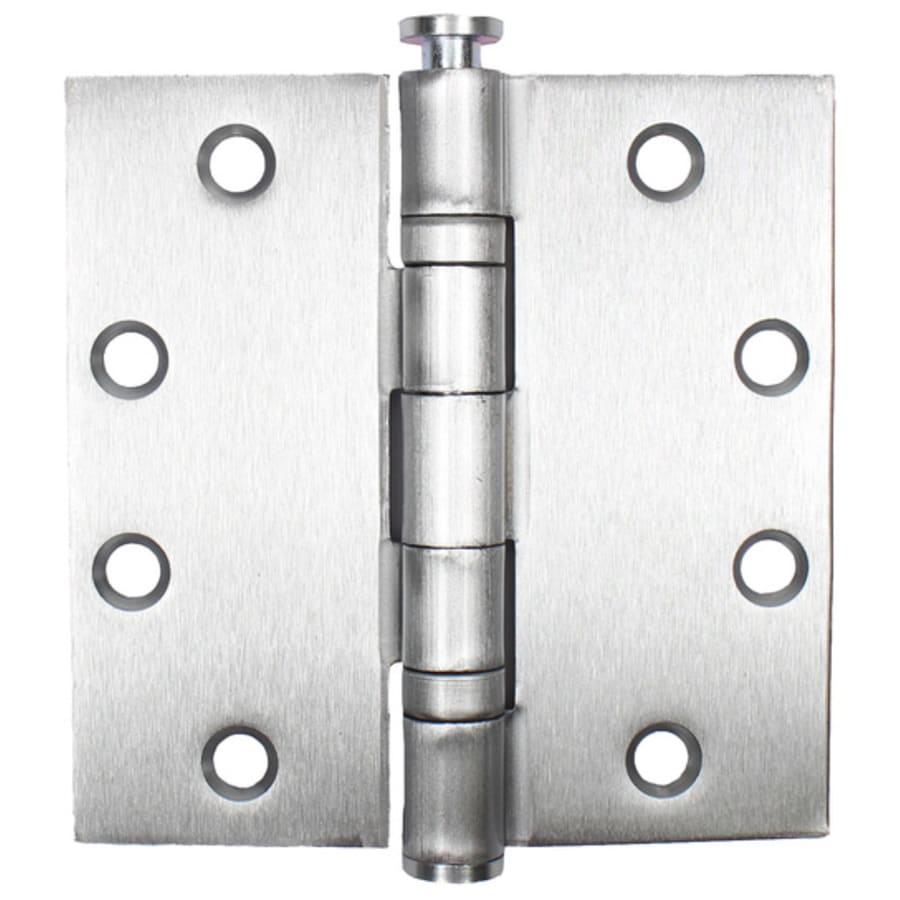

Pamex 4 Inch x 4 Inch Ball Bearing Square Corner Mortise Hinge – Single Hinge

Features:

Includes a single hinge in each order
Features precisely machined square corners
Features a removable pin, allowing you to easily remove your door without having to uninstall the hinges
Constructed with 8 screw holes in an arc hole pattern arrangement for maximum mounting strength
Tested for commercial strength application, ideal for your home or business
Includes a pack of phillips flat-head screws for simple, out of the box installation

Product Technologies:

Ball Bearing Hinge: Ball bearing hinges are designed to handle the extra stress brought on by high traffic doorways. The greased bearings reduce the rotational friction extending the life of a hinge in heavy use situations. These hinges tend to be more durable than standard, or plain bearing hinges.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

Height: 4″
Width: 4″
Material: Steel
Mount Type: Mortise
Gauge: 0.13″
Number of Knuckles: 5
Number of Screw Holes: 8
Hole Pattern: Arc
Hinge Strength: Commercial
Removable Pin: Yes
Self Closing: No
Quantity: 1
ANSI Certification: A 156.1
UL Listed: No
