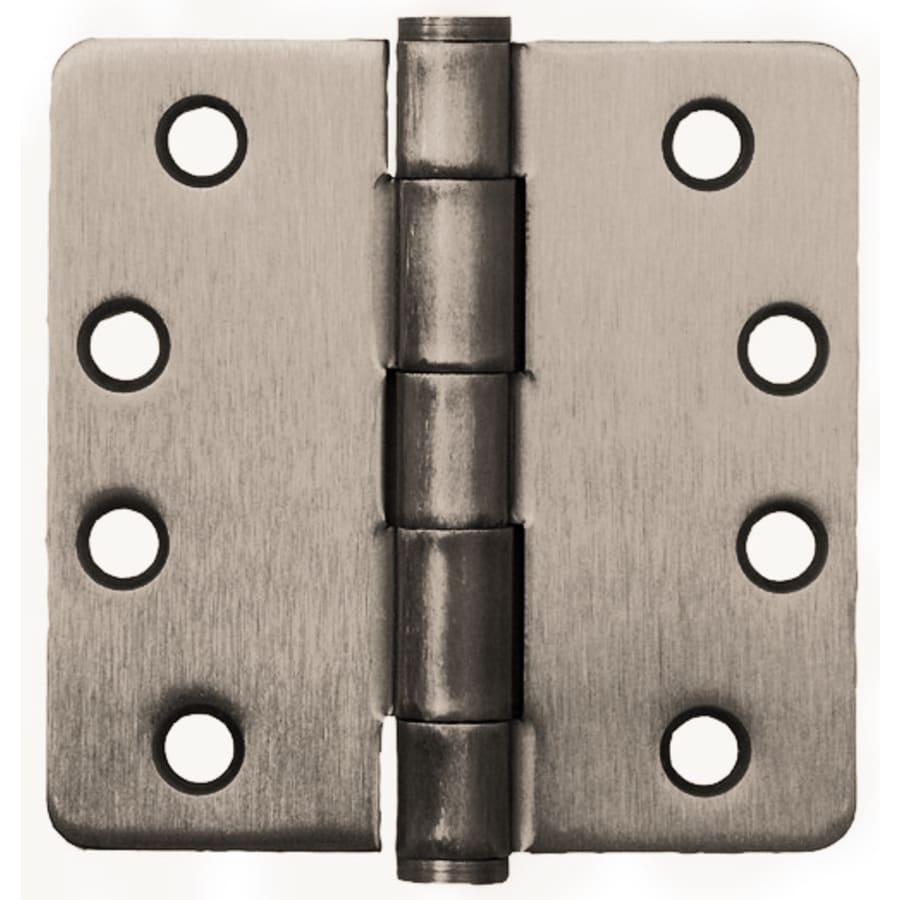

Features:
Includes a single hinge in each order
Features precisely machined 1/4″ radius corners
Constructed with 8 screw holes in an arc hole pattern arrangement for maximum mounting strength
Tested for commercial strength application, ideal for your home or business
Includes a pack of phillips flat-head screws for simple, out of the box installation
Product Technologies:
Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.
Specifications:
Height: 4″
Width: 4″
Material: Steel
Mount Type: Mortise
Gauge: 0.13″
Number of Knuckles: 5
Number of Screw Holes: 8
Hole Pattern: Arc
Hinge Strength: Commercial
Removable Pin: No
Self Closing: No
Quantity: 1
ANSI Certification: A 156.1
Additional Pamex Links
Browse all Pamex Products
Pamex H44 Collection
Specifications
| Width | 4 in. |
| Height | 4 in. |
| Corners | 1/4" Radius Corner |
| Quantity | 1 |
| Gauge | 0.13 |
| Hinge Height | 4 in. |
| Hinge Size | 4 x 4 in. |
| Hinge Width | 4 in. |
| Thermostat | Traditional |
| Material | Steel |
| Mounting Type | Mortise |
| Hinge Type | Plain Bearing |
| Number Of Hooks | 8 |
| Number of Knuckles | 5 |
| Self Closing | No |
| Hole Pattern | Arc |
| Removable Pin | No |
| Approved for Commercial Use | Yes |
| Collection | H44 |
| ANSI Certification | A156.1 |
| Certifications | ANSI |
| Usage Level | Commercial Grade |
| Color | Satin Nickel |
| Color Tone | Nickel Tones |
