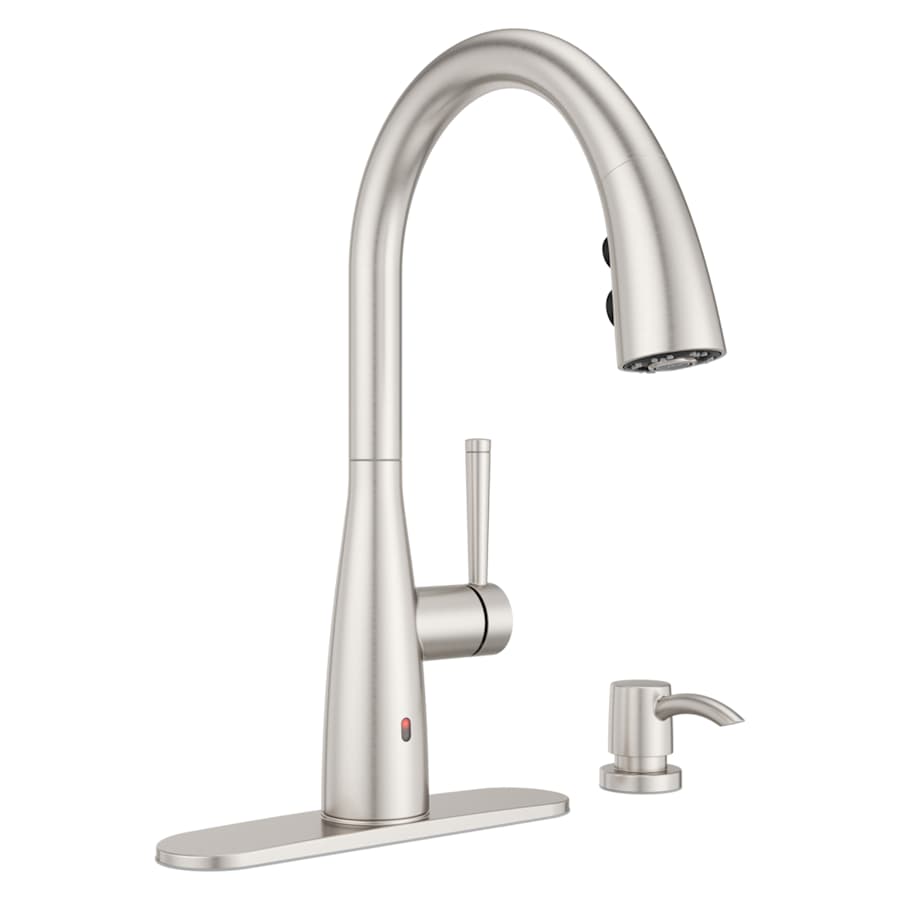

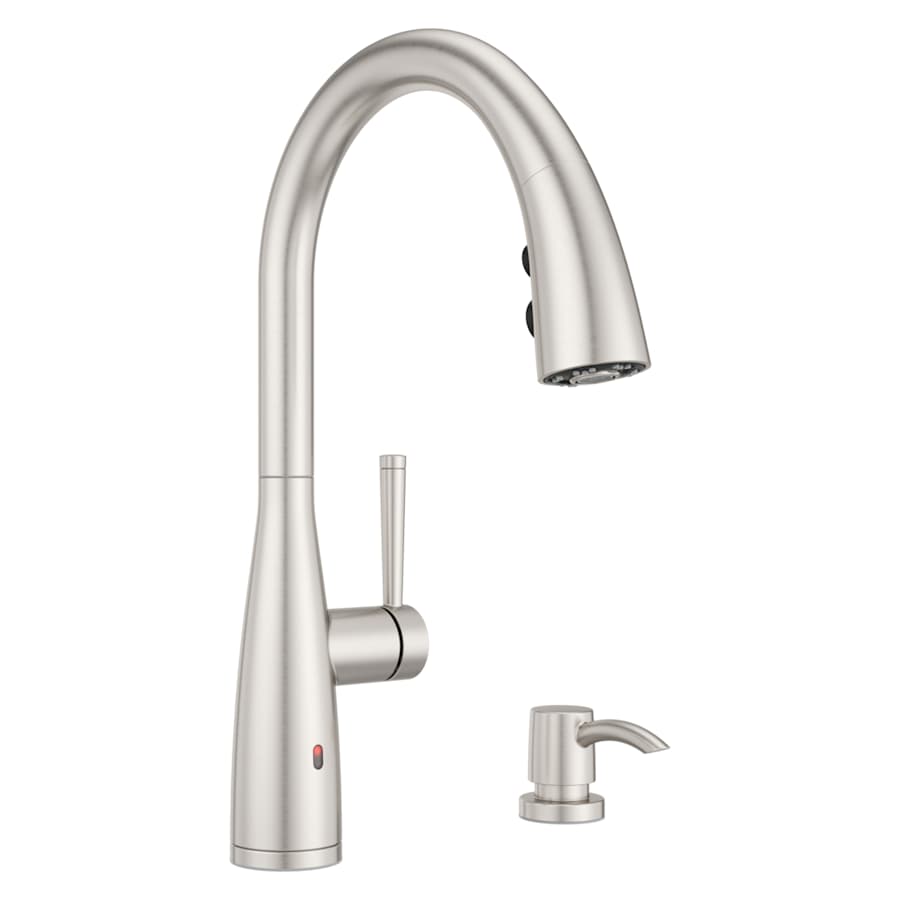

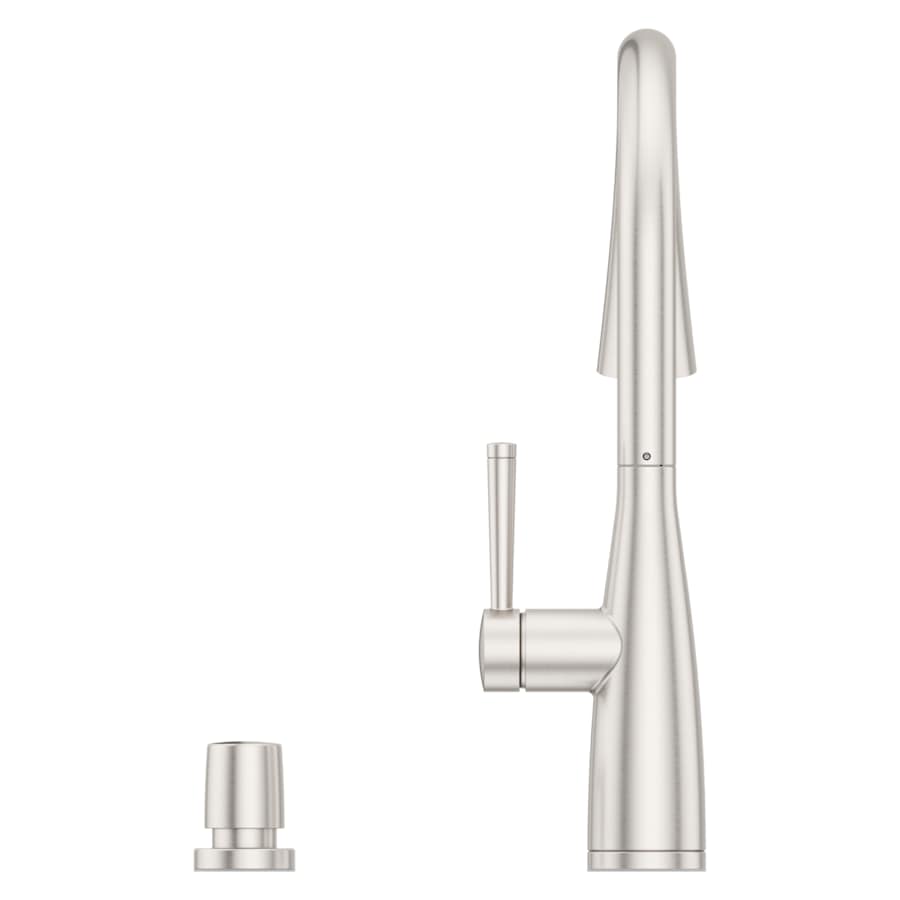

The sleek, versatile Raya is the ergonomic sink topper that generates faucet envy with style, function and performance. It’s thoughtfully designed and packed with all the features you expect from Pfister. You’ll soon understand what an exceptional faucet can do for your favorite room in the house.
Pfister F-529-ERY Features:
Covered under Pfister’s limited lifetime warranty
Faucet body constructed of metal
Coordinates with products from the Raya line
Touchless, motion-activated faucet
Single hole mounting type
Deck mounted faucet installs directly to sink or countertop
Pull-down spray with 3 spray functions
Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
Single lever handle controls the flow and temperature of water
Soap dispenser included – requires an additional faucet hole
Includes Pforever Seal ceramic disc cartridge

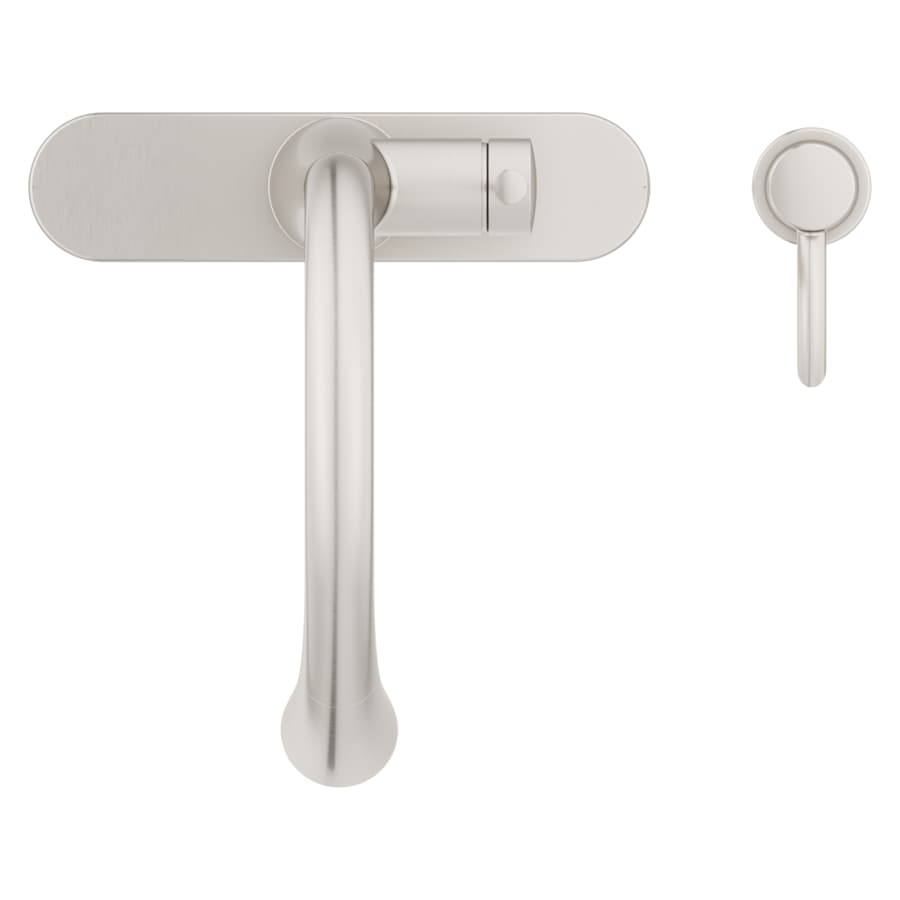

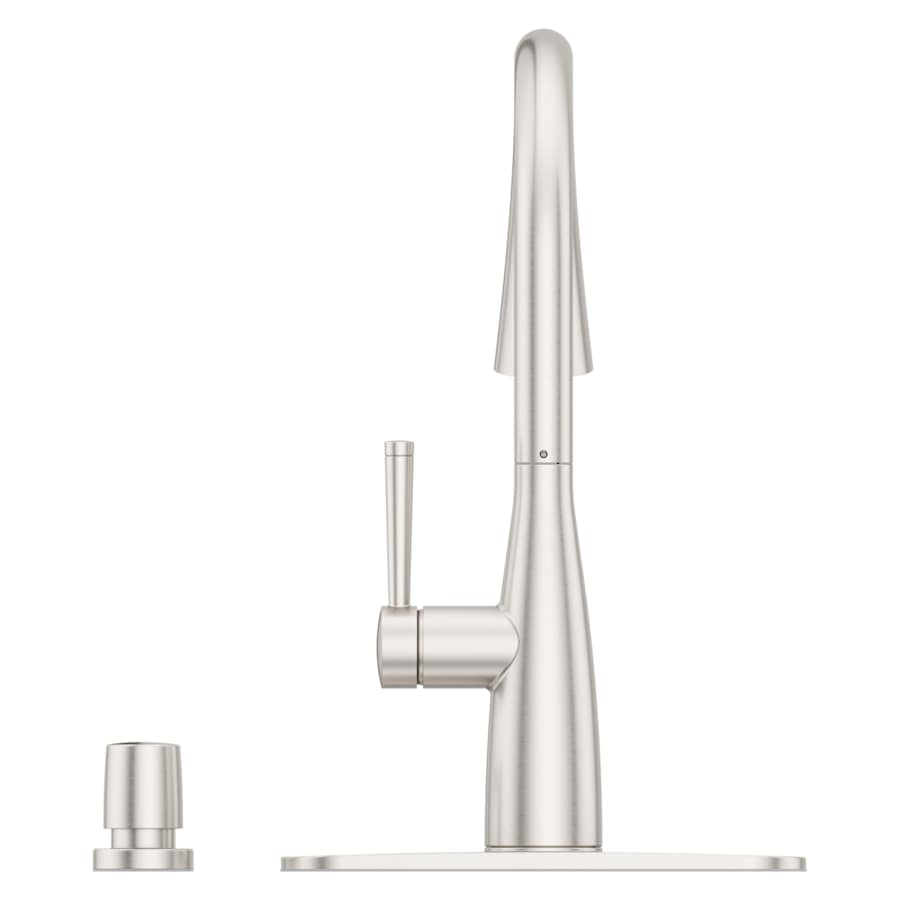

Faucet includes an optional escutcheon plate to cover unused faucet holes
Mounting hardware included
Complies with ADA standards
Low lead compliant
Pfister F-529-ERY Specifications:
Height: 16-7/8″ (deck to top of faucet)
Spout Height: 9-7/8″ (deck to spout outlet)
Spout Reach: 8-13/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.8 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 3″ (from deck bottom to top of deck)
Escutcheon Width: 2-1/2″ (left to right)
Additional Pfister Links
View the Manufacturer Warranty
Browse all Pfister Products
Pfister Raya Collection
Specifications
| Height | 16.84375 in. |
| Product Weight | 10.4 lbs. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.5 in. |
| Flow Rate (GPM) | 1.8 |
| Max Deck Thickness | 3 in. |
| Spout Height | 9.84375 in. |
| Spout Reach | 8.8125 in. |
| Water Connection | 3/8" |
| Hose Length | 14 in. |
| Spout Swivel | 360 Degrees |
| Escutcheon Width | 2.53125 in. |
| Material | Metal |
| Thermostat | Contemporary |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Faucet Type | Kitchen Faucet |
| Handle Style | Lever |
| Mounting Type | Single Hole |
| Number Of Handles | 1 |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Handle Material | Metal |
| Smart Home | No |
| Spray Settings | 3 |
| Water Efficient | Yes |
| Electronic | Yes |
| Bridge Faucet | No |
| Pre Rinse | No |
| Pullout Direction | Down |
| Pullout Spray | Yes |
| Water Connection Type | Compression |
| Touchless Faucet | Yes |
| Battery Quantity | 4 |
| Magnetic Docking | No |
| Voice Activated | No |
| Collection | Raya |
| Approved for Commercial Use | No |
| Certifications | ANSI, ASME, CSA, NSF |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| ANSI Certification | A117.1 |
| ADA | Yes |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Handshower Included | Yes |
| Installation Hardware Included | Yes |
| Escutcheon Included | Yes |
| Valve Included | Yes |
| Filtering | No |
| Sidespray | No |
| Soap Dispenser Included | Yes |
| Battery Included | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Battery Type | Alkaline |
| Color | Spot Defense Stainless Steel |
