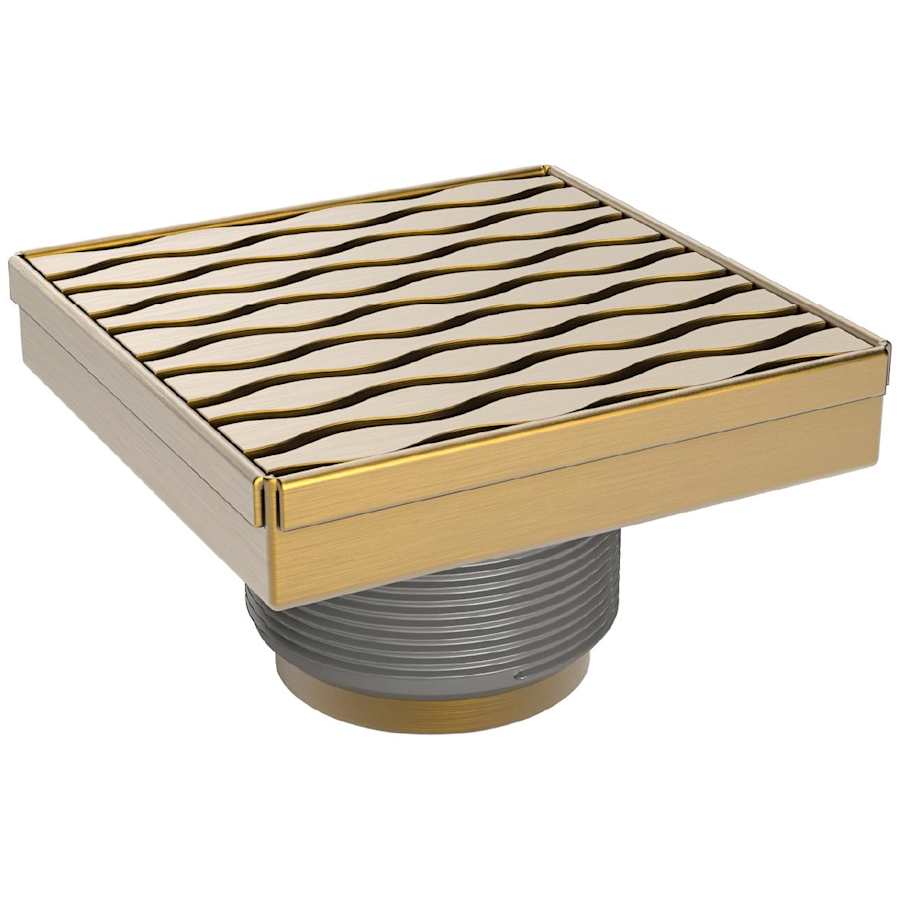

QuickDrain SD04-STREAM Features:
4 in. SquareDrain cover and drain body

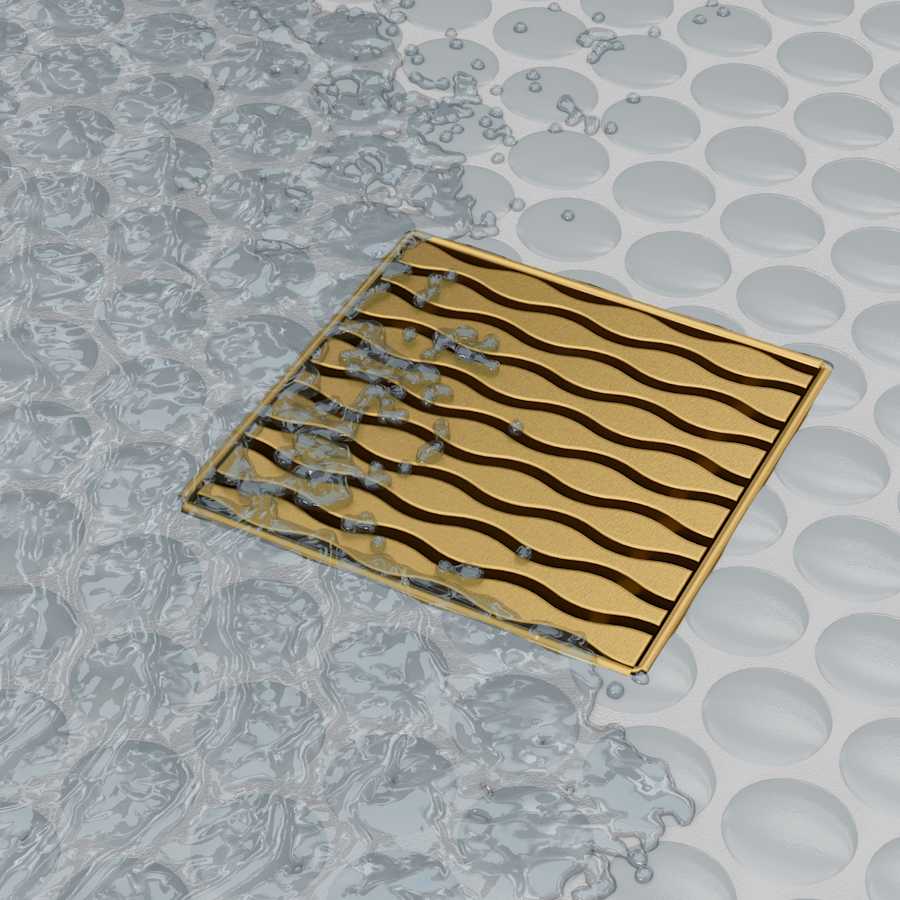

Stream cover design adds a clean, industrial aesthetic
Compatible with topical liquid, sheet membrane, PVC/CPE shower pan liner and hot mop waterproofing methods
Made of 18-gauge 304 stainless steel, ADA compliant

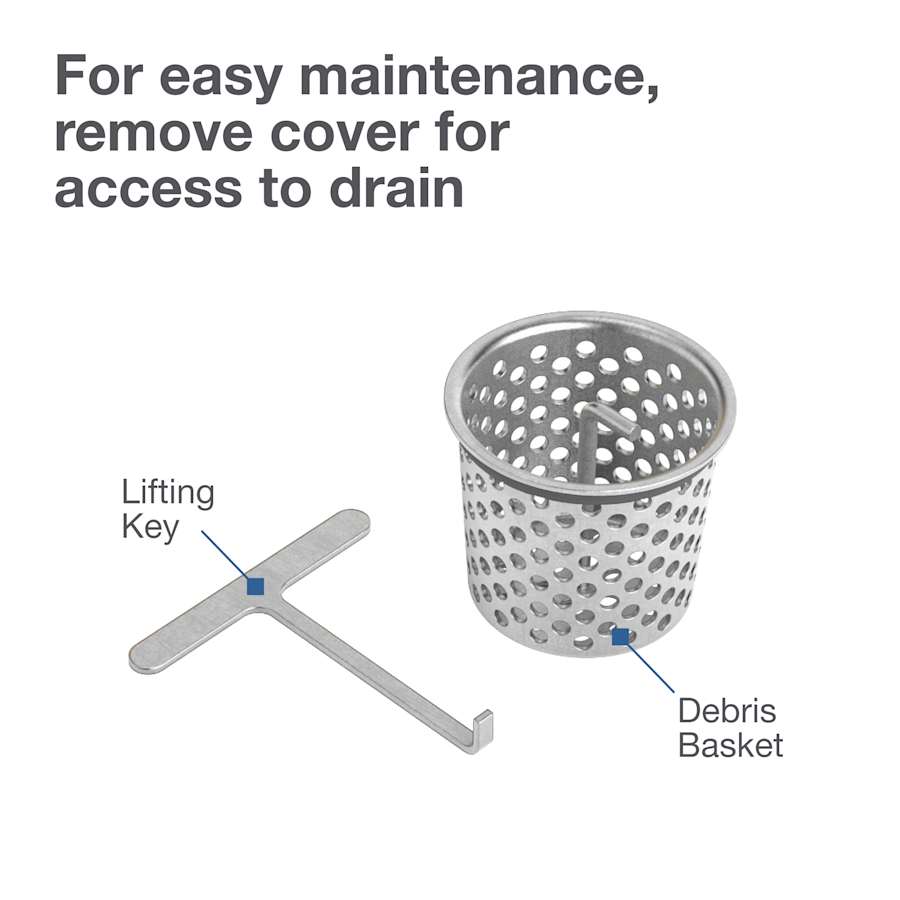

Debris basket and cover removal key allow for easy maintenance

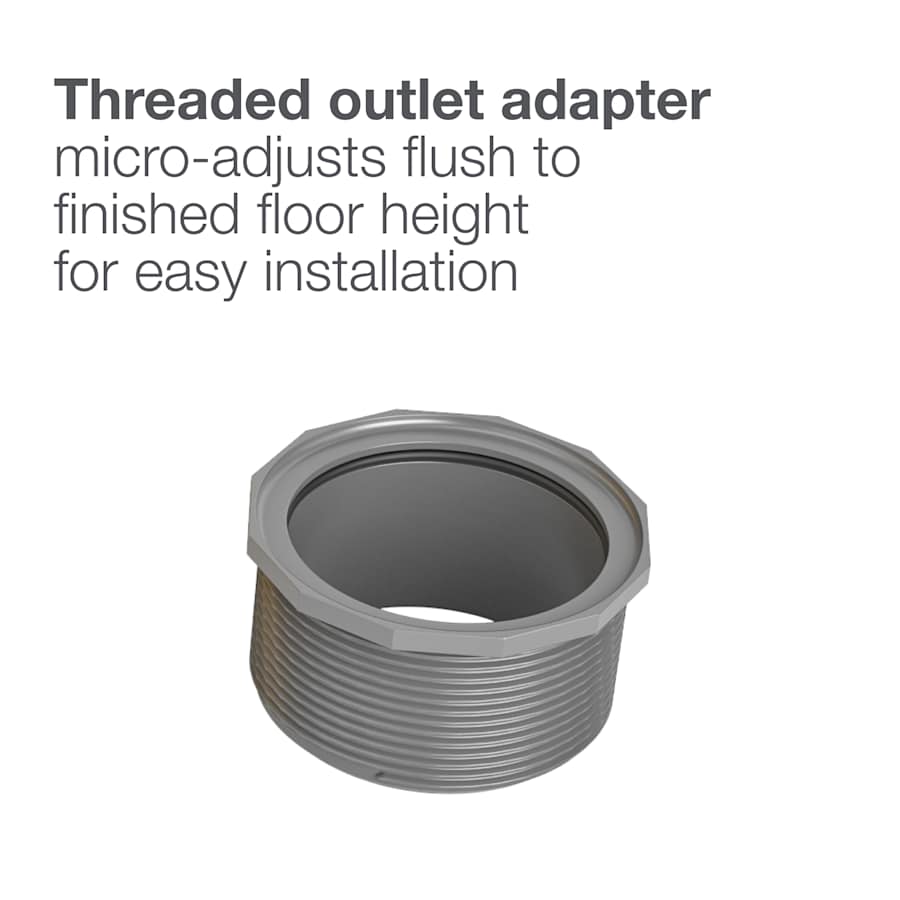

Threaded outlet adapter micro-adjusts for easy installation flush to finished floor height
Compatible with 2 in. drain pipe; handles up to 12 GPM (actual volume is limited by the plumbing lines and P-trap)

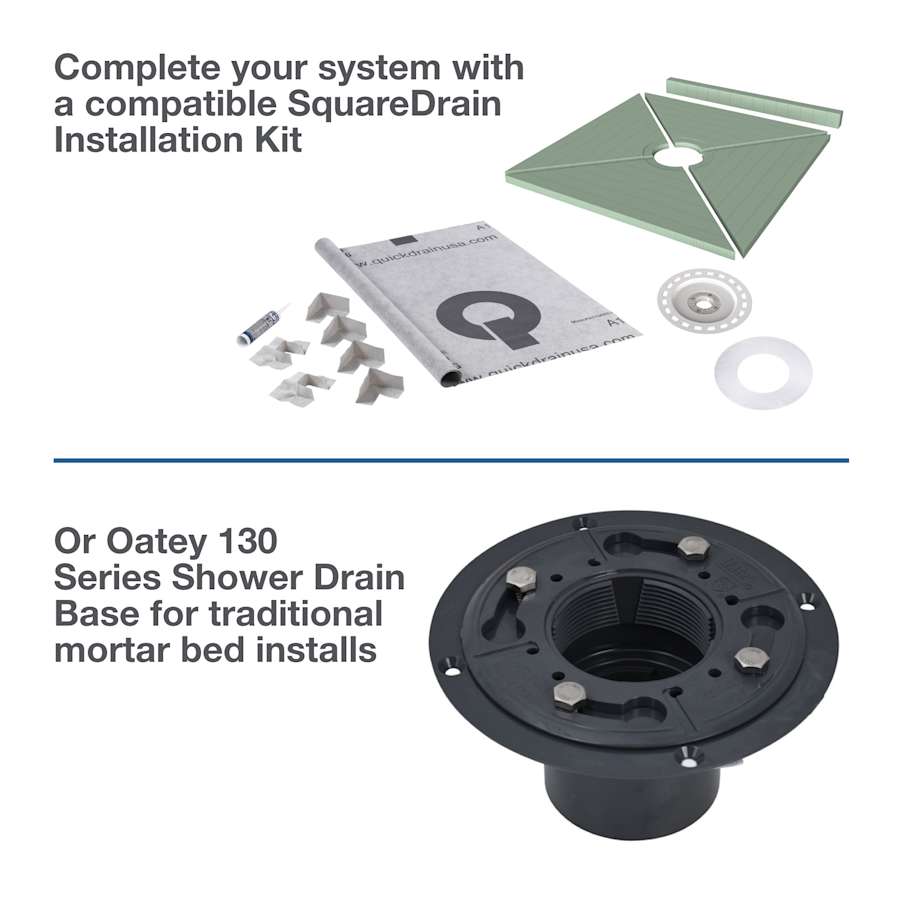

Complete your shower system with a SquareDrain Installation Kit, which includes a pre-sloped shower pan, drain flange and waterproofing accessories
Kit includes: (1) 4 in. SquareDrain stream drain cover; (1) 4 in. SquareDrain body in matching finish; (1) 2 in. threaded outlet adapter; (1) cover removal key; and (1) debris basket
Specifications:
Width: 4″
Length: 4″
Height: 2-1/2″
Additional QuickDrain Links
Browse all QuickDrain Products
Specifications
| Height | 2.5 in. |
| Width | 4 in. |
| Length | 4 in. |
| Product Weight | 1.1 lbs. |
| Nominal Length | 4 in. |
| Gauge | 18 |
| Drain Connection | 2 in. |
| Material | Stainless Steel |
| Thermostat | Transitional |
| Shape | Square |
| ADA | No |
| Collection | QuickDrain SquareDrain Stream Kits |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |

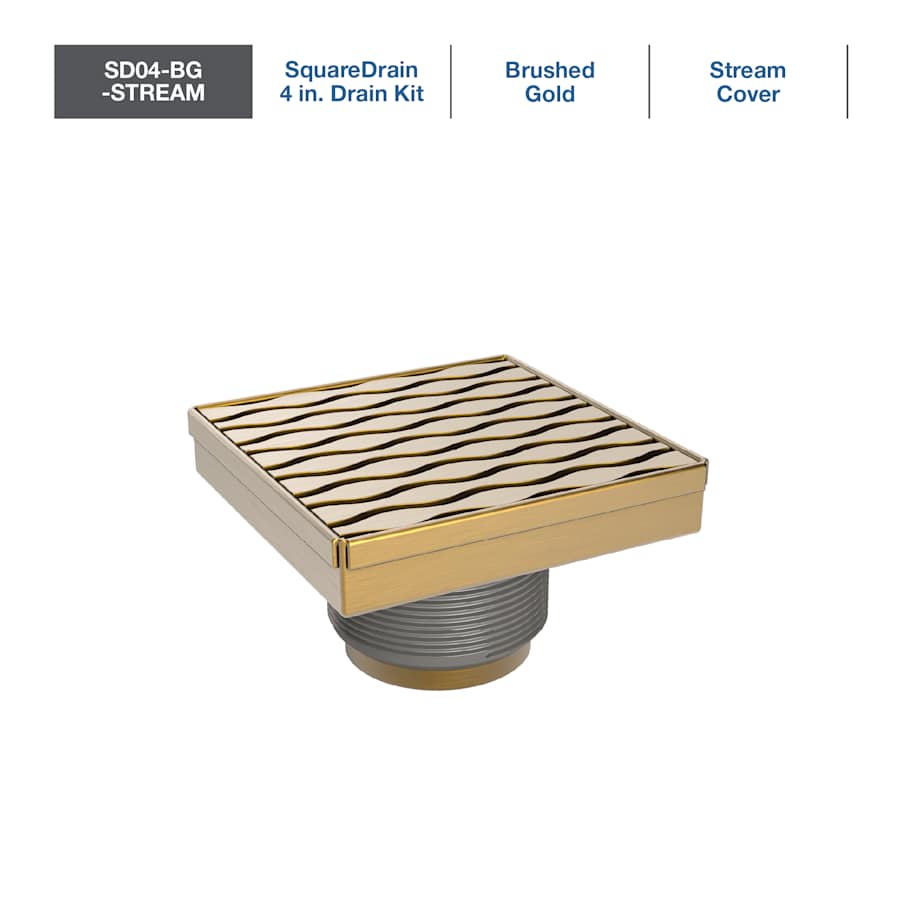

| Color | Brushed Gold |
