QuickDrain WallDrain Assembly 26-72 in. Vertical Waste Outlet Centered

QuickDrain WallDrain Body Kit for 26 in. to 72 in. Rough opening, vertical waste outlet centered.

Quickdrain WALLD72 Features:

Covered under Quickdrains limited lifetime warranty

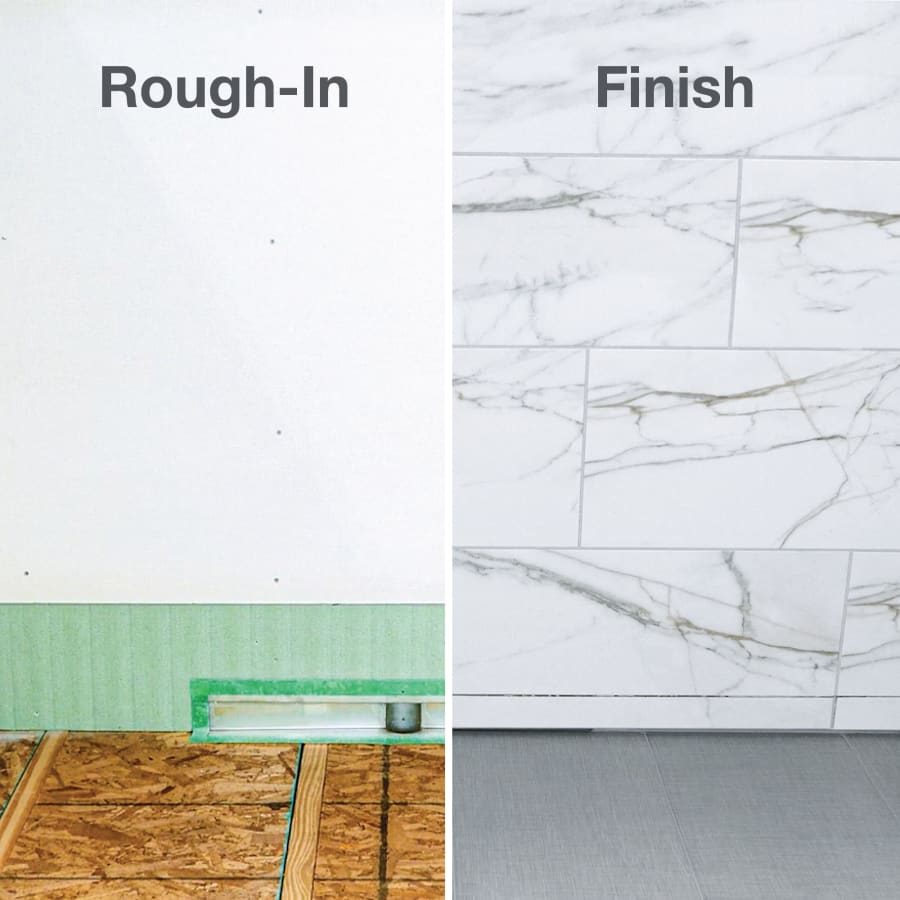

WallDrain linear shower drain body gets concealed into the wall for a sleek look
The ultimate in shower luxury with endless shower design possibilities

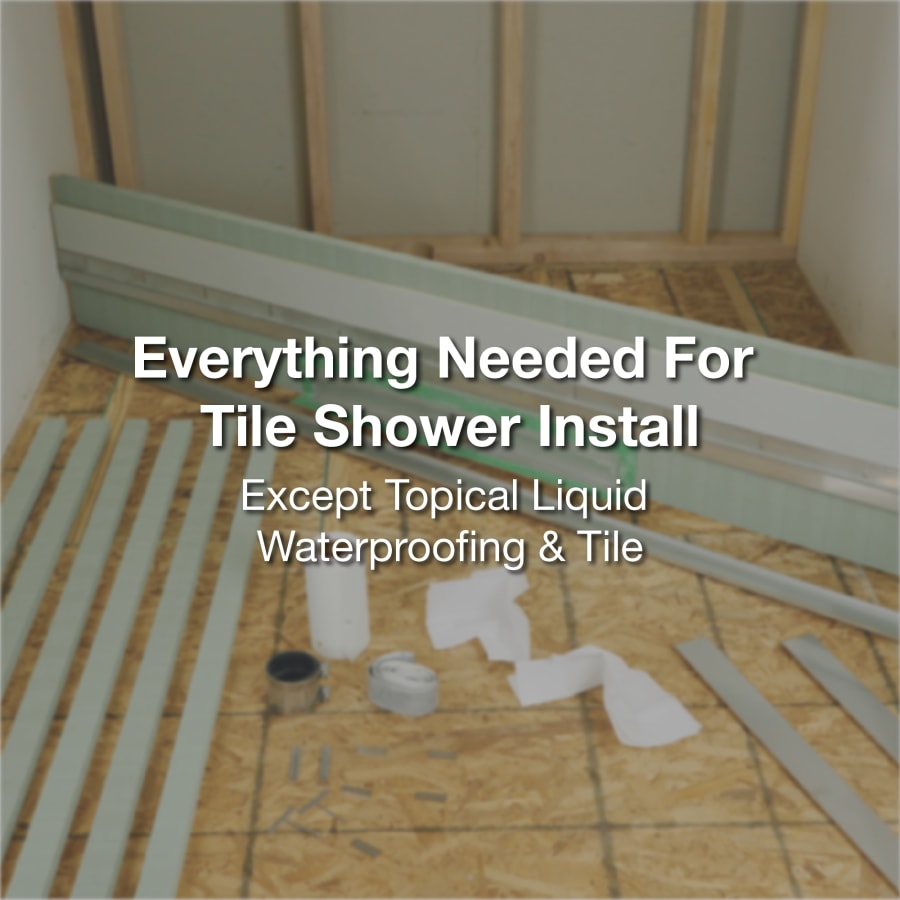

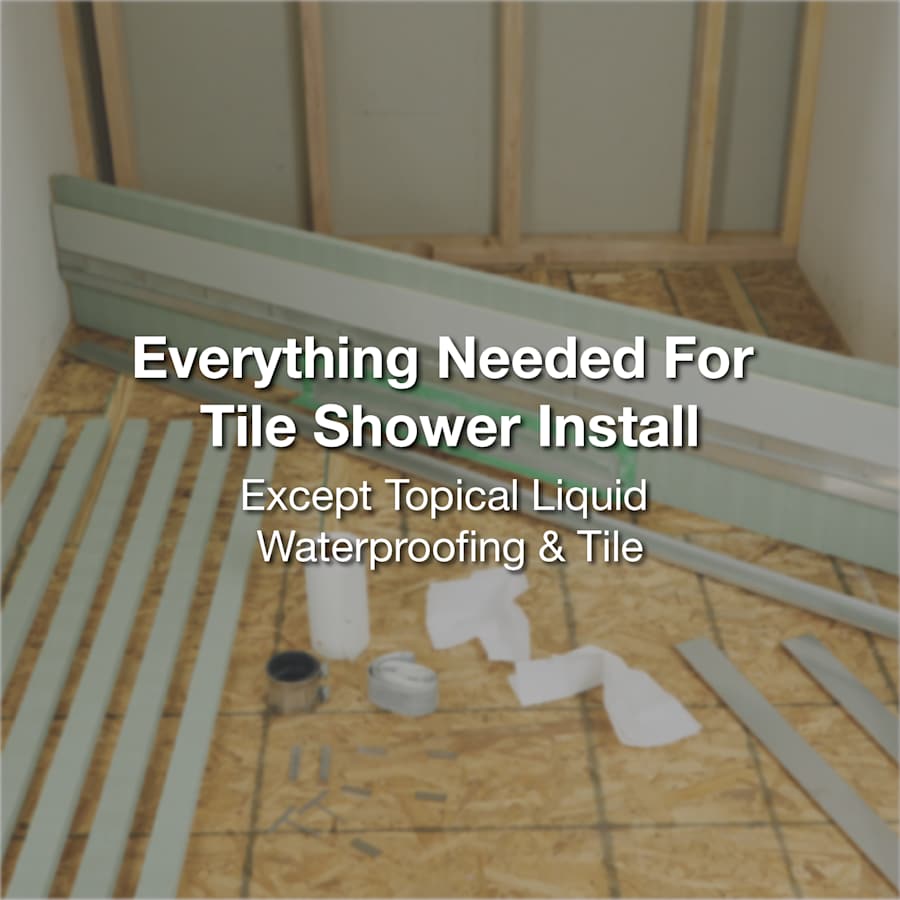

All-in-one assembly kit has everything needed for placing the drain in a curbed or curbless shower

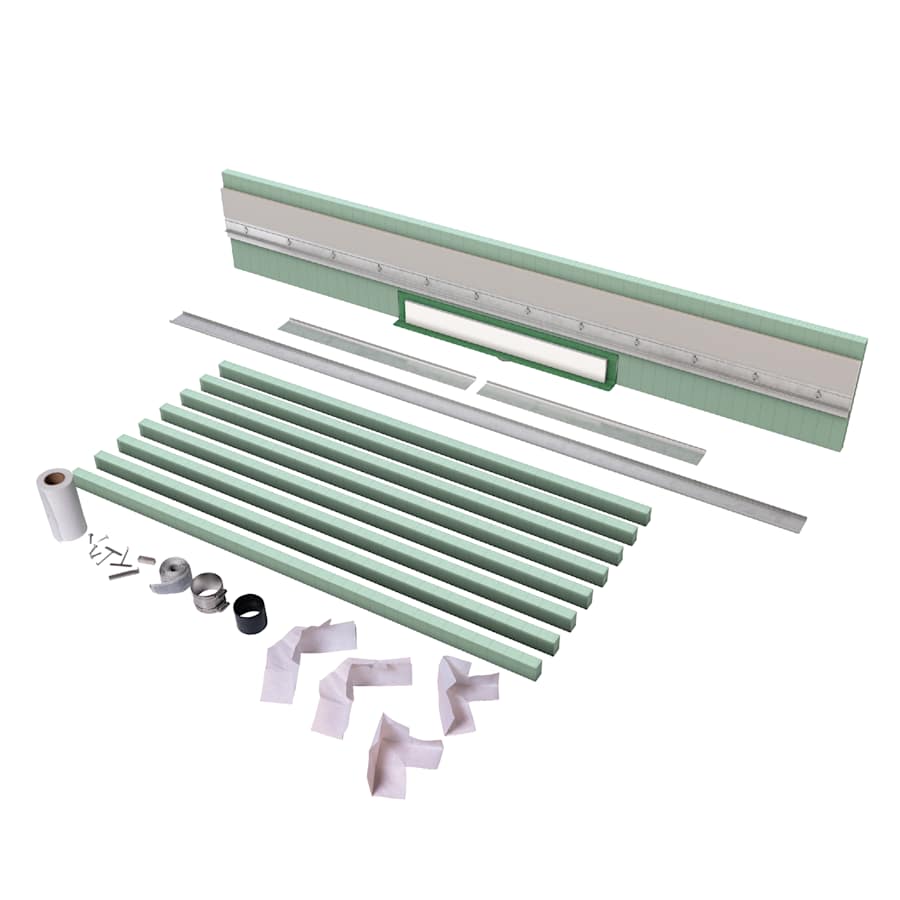

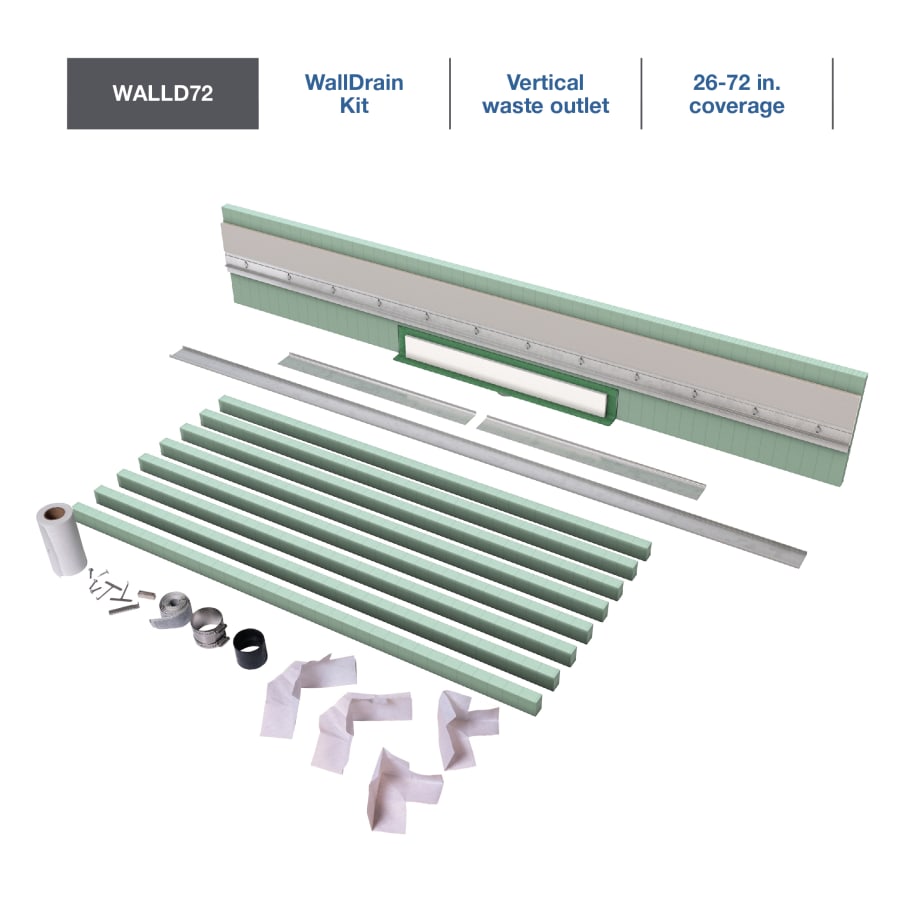

Includes linear drain body with centered vertical waste outlet; tile-in cover; PET vertical installation panel and furring strips; drain extensions; two-band coupling to connect to the DWV system; reinforcing fabric and corners for liquid waterproofing applications (liquid waterproofing not included)

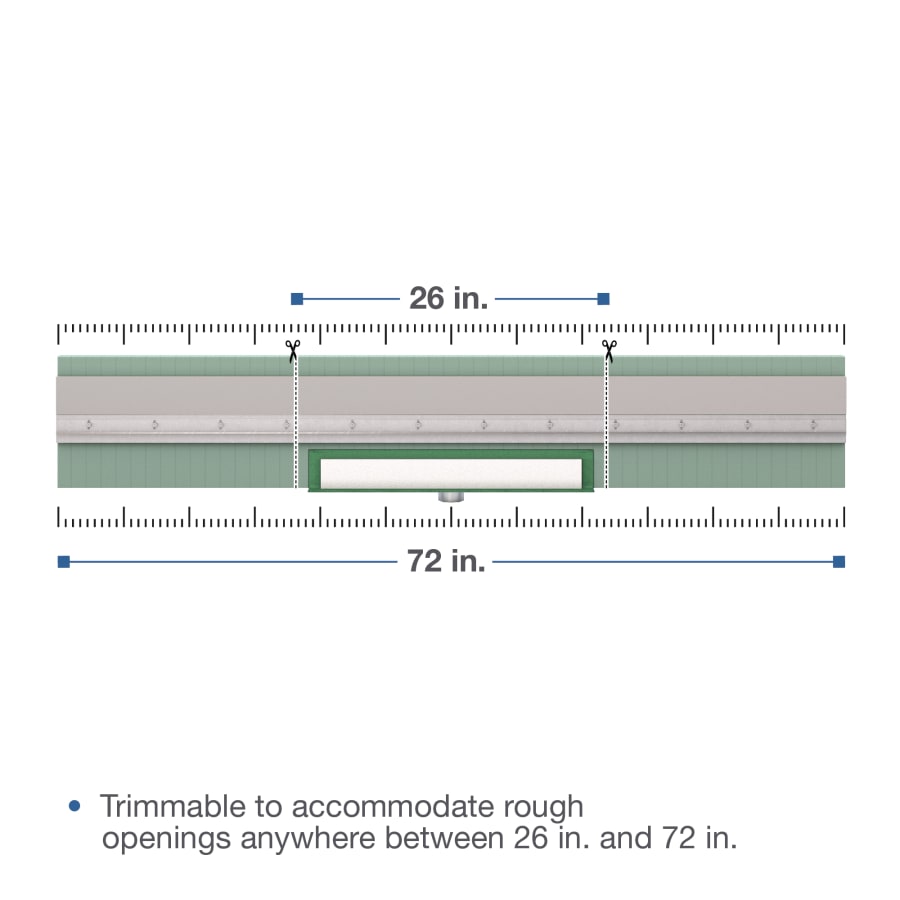

WallDrain72 accommodates rough openings measuring anywhere between 26 in. and 72 in. (wallboard to wallboard), with tile-in covers and drain extensions that can be trimmed to size to achieve wall-to-wall coverage

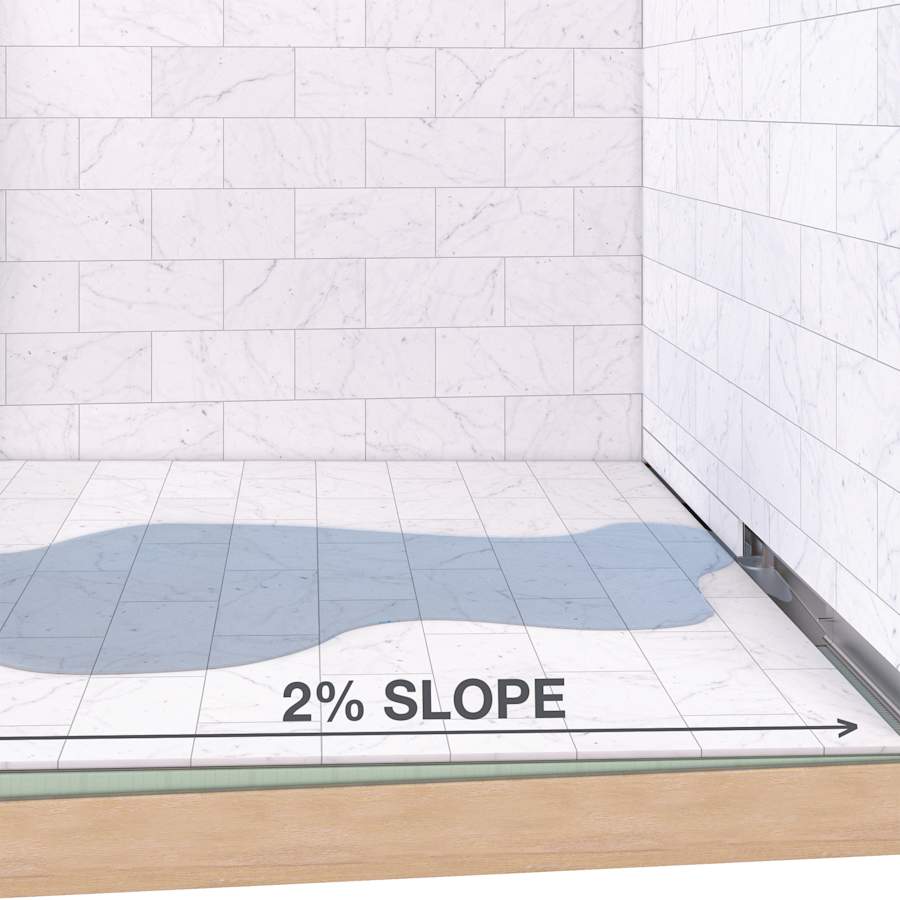

Wall-to-wall coverage promotes effective drainage, eliminates need for centered drain outlet and ensures a visually pleasing installation
Drain body made of 18-gauge, 316L marine-grade stainless steel
Requires 2 in. drain outlet with a capacity of 12 GPM (the actual volume is limited by the plumbing lines and P-trap)
PET components are made of 100% recycled plastic, minimizing their environmental footprint and helping projects qualify for LEED points
Waterproof with liquid waterproofing or hot mop using a cast iron or ABS drain, sold separately
Side waste outlet also available for rear (horizontal) discharge

Quickdrain WALLD72Specifications:

Height: 5″ to 10″
Length: 26″ to 72″
Width: 15″
