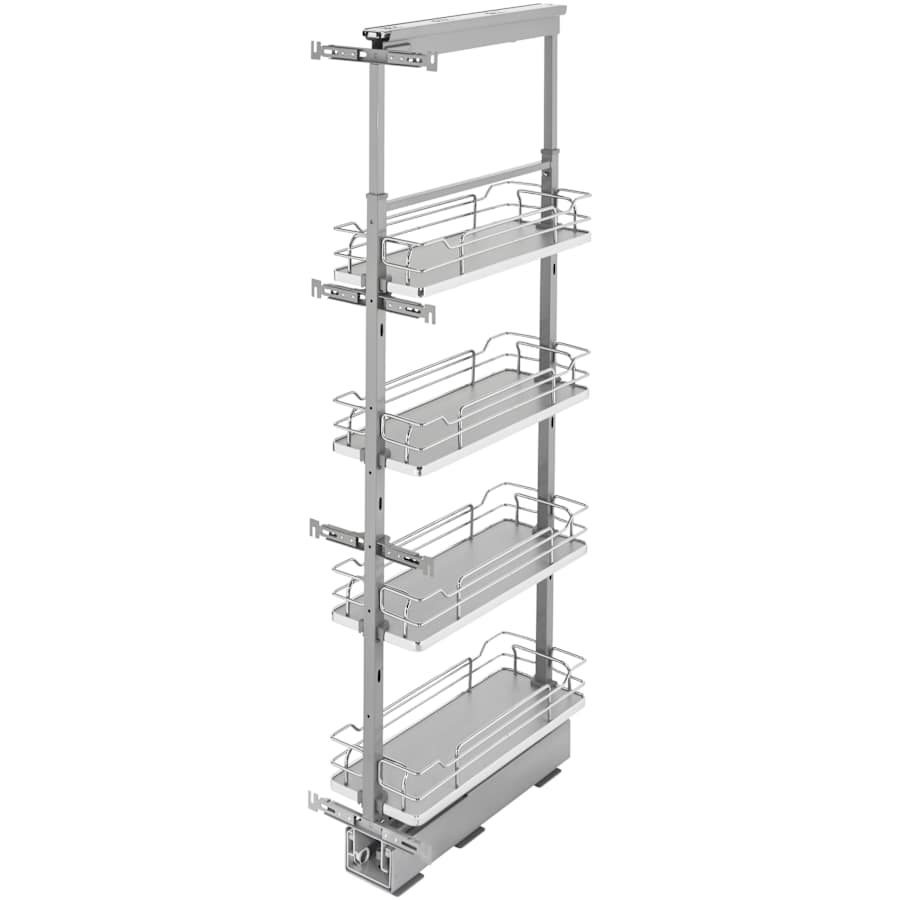

Rev-A-Shelf’s 5300 pull out pantry series is the answer to your full access (frameless) cabinetry needs. The series now offers increased basket depths for 24″ deep cabinetry and comes in five different widths and four height ranges. The 5300 series glides quietly on a 250 lb. rated full-extension soft-close slide system. Features micro-adjustable door mounting and all kits are packaged with frame, baskets and hardware.
Features:
3-piece heavy duty soft close full extension progressive slide system
Basket dimensions of 8″ W x 20-4/5″ D x 3-2/3″ H
Adjustable frame height of 50-3/4″ to 58-1/4″
Due to size/weight, item normally ships via LTL carrier
Optional extender brackets (57-EXTEND-1) allows you to move top basket all the way up (sold separately)
Designed for a cabinet opening of 8-1/2″ to 12″

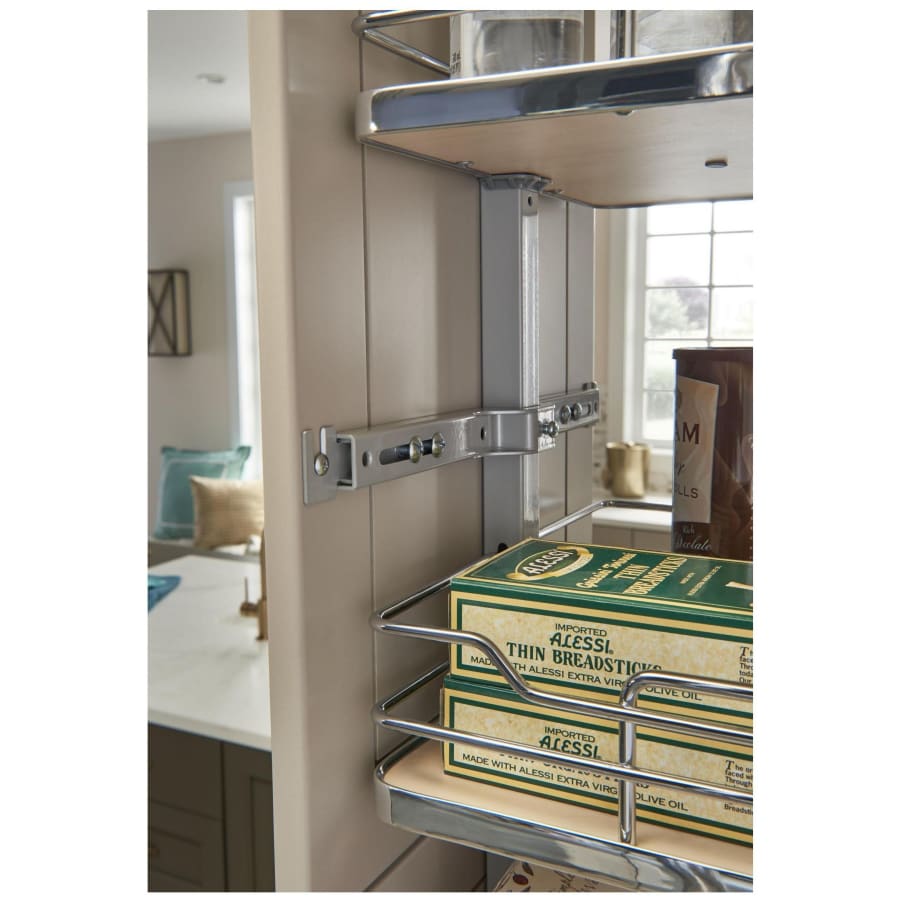

Adjustable door mount brackets are included and required for operation
Constructed with a heavy-duty metal frame with solid bottom surface
Professional installation recommended
200 lb full-extension progressive slides with soft close
Covered by Rev-A-Shelf’s limited lifetime warranty
Specifications:
Height: 50-3/4″
Width: 9-5/8″
Depth: 21-11/16″
Weight Capacity: 200 lb
Minimum Opening Width: 9-7/8″
Minimum Opening Height: 50-3/4″
Includes:
Four (4) solid bottom baskets

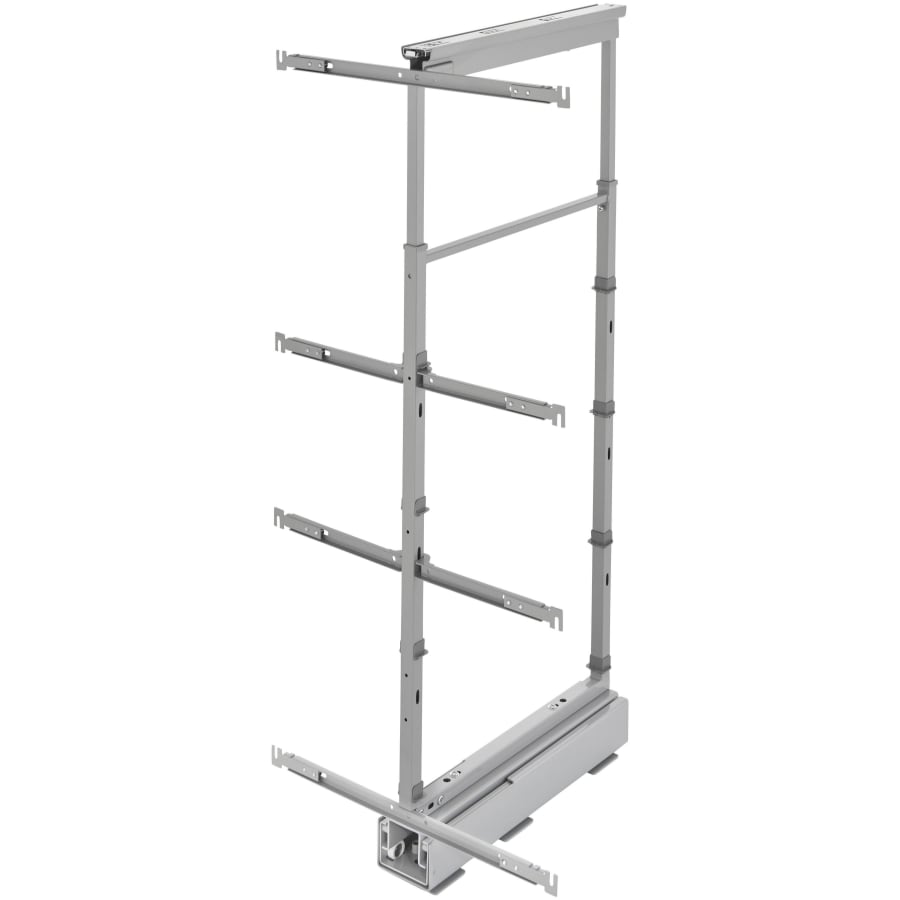

One (1) frame
One (1) 200 lb. slide system
Two (2) door mount brackets
Mounting hardware
Additional Rev-A-Shelf Links
View the Manufacturer Warranty
Browse all Rev-A-Shelf Products
Rev-A-Shelf Contemporary Collection
Specifications
| Height | 50.75 in. |
| Width | 9.61 in. |
| Depth | 21.69 in. |
| Product Weight | 64.4 lbs. |
| Minimum Opening Width | 9.86 in. |
| Cabinet Fit Size | 9.86 in. |
| Max Capacity (Pounds) | 200 lbs. |
| Minimum Opening Depth | 21.75 in. |
| Minimum Opening Height | 50.75 in. |
| Collection | Contemporary |
| Country Of Origin | Taiwan |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Material | Steel |
| Insulation Type | Cabinet Door, Cabinet Top and Bottom |
| Number Of Shelves | 4 |
| Assembly Required | Yes |
| Adjustable | Yes |
| Cabinet Type | Panel (Frameless) |
| Soft Close | Yes |
| Extension Type | Full Extension |
| Installation Hardware Included | Yes |
| Color | Gray, Maple |
| Color Tone | Greys, Light Wood Finishes |
