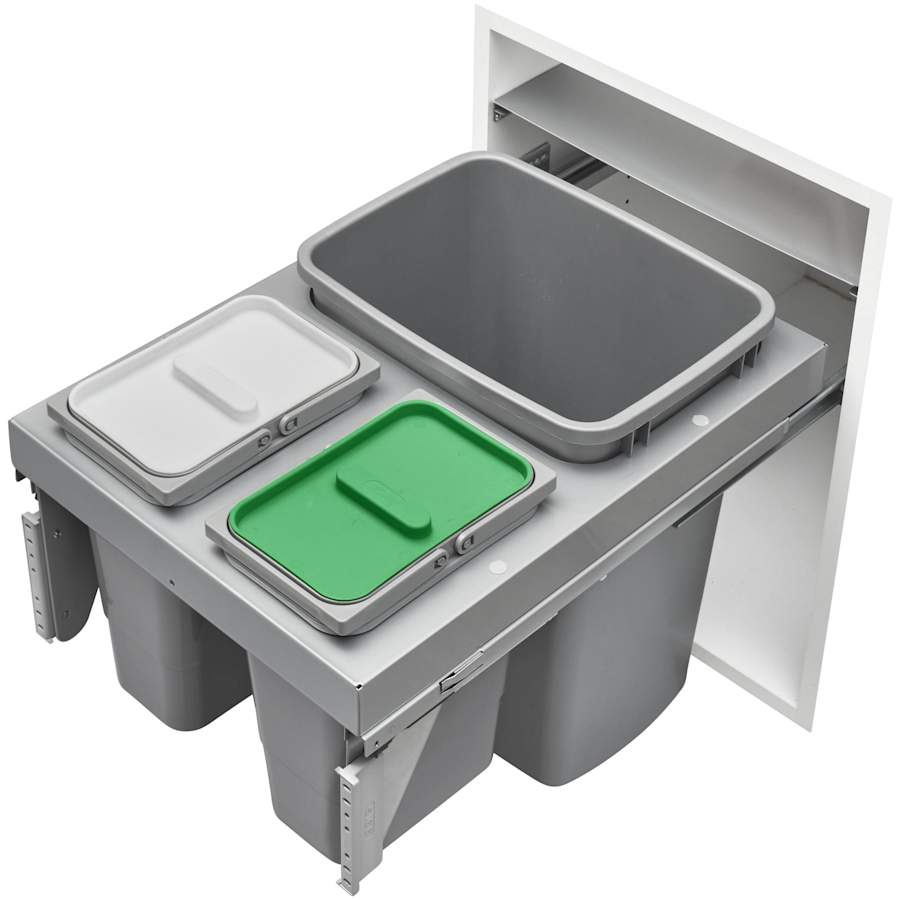

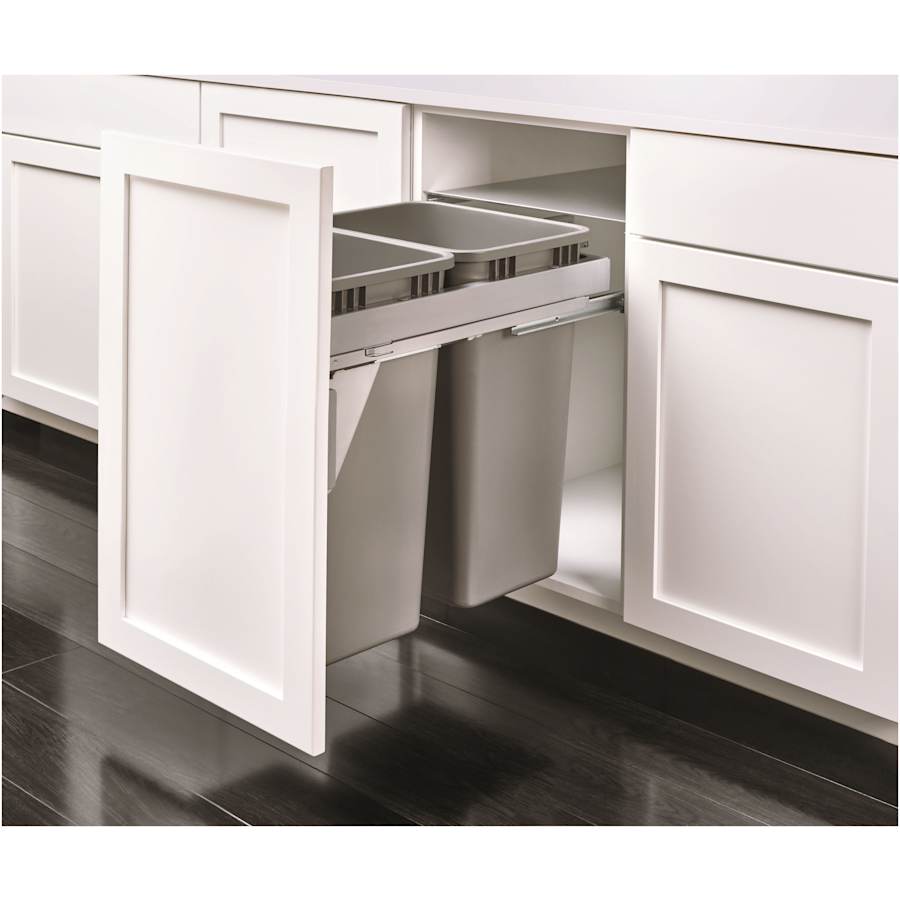

Rev-A-Shelf’s 53TM series built-in waste container was crafted with convenience and style in mind. Designed for full access (frameless) 18″ full height base cabinets for both 5/8″ and 3/4″ side walls, the series includes multiple waste container configurations and sizes with a sleek metal lid. Units feature 90 lb. rated, 1-1/2″ over-travel Grass slides, and a sturdy door mountable frame.
Features:
Undermount soft close full extension concealed slide system
Mounts to the side of the cabinet
Stationary lid cover conceals trash when inside cabinet and can be used as a extra shelf
Adjustable installation width of 16-1/2″ to 16-3/4″
Once installed, bins can be removed for easy cleaning
Designed for cabinet opening width of 16-1/4″ to 17″

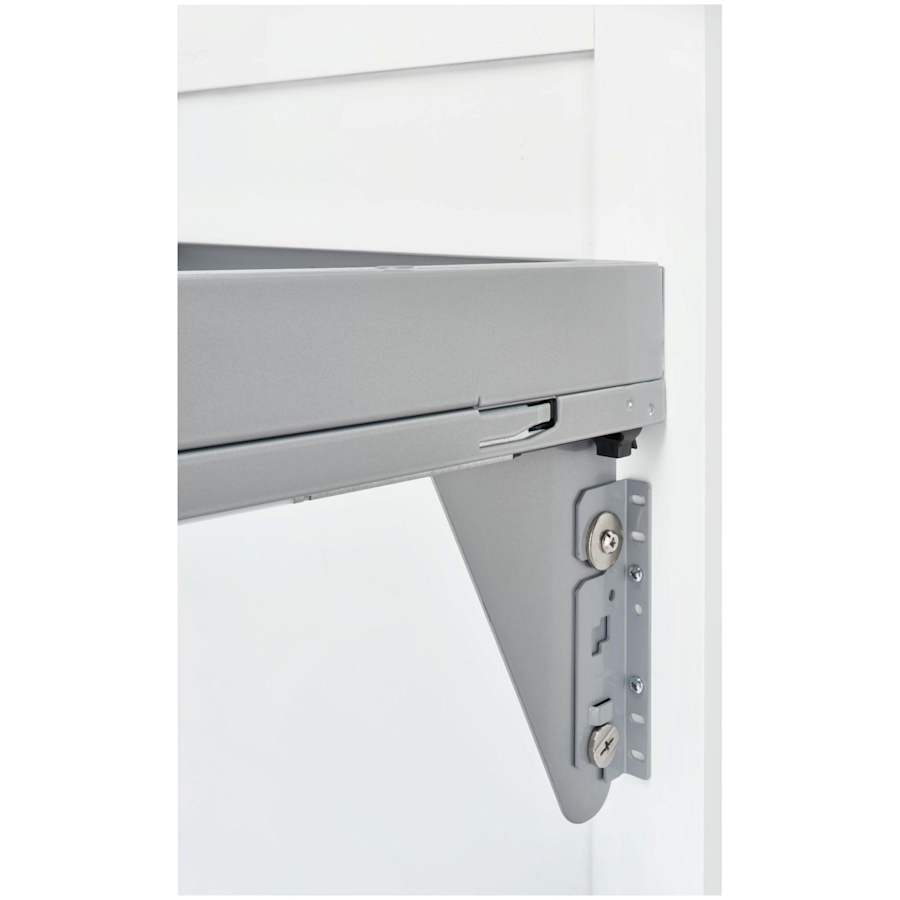

Adjustable door mount brackets are included and required for operation
Optional 35 quart lids sold separately (RV-35-LID-17-1)
Heavy-duty metal frame construction for durability
90 lb full-extension GRASS slides with soft-close
Covered by Rev-A-Shelf’s limited lifetime warranty
Specifications:
Depth: 21-5/8″
Height: 18-13/16″
Width: 16-1/4″
Minimum Opening Width: 16-1/4″
Minimum Opening Height: 19″
Includes:
One (1) 35 quart waste containers
Two (2) 8 quart waste containers
One (1) metal frame
One (1) pair of slides
Door mount brackets
Mounting hardware
Â
Â
Pull Out Recycle, Pull Out Trash, Slide Out Recycle, Built in Trash and Recycle
Additional Rev-A-Shelf Links
View the Manufacturer Warranty
Browse all Rev-A-Shelf Products
Rev-A-Shelf Modern Collection
Specifications
| Depth | 21.65 in. |
| Height | 18.81 in. |
| Product Weight | 22.5 lbs. |
| Width | 16.22 in. |
| Max Capacity (Pounds) | 90 lbs. |
| Cabinet Fit Size | 16.22 in. |
| Minimum Opening Depth | 21.75 in. |
| Minimum Opening Height | 19 in. |
| Minimum Opening Width | 16.22 in. |
| Capacity (Quarts) | 35 |
| Material | Steel |
| Insulation Type | Cabinet Door, Cabinet Side |
| Assembly Required | Yes |
| Adjustable | No |
| Soft Close | Yes |
| Cabinet Type | Panel (Frameless) |
| Number of Bins | 3 |
| Collection | Modern |
| Approved for Commercial Use | No |
| Country Of Origin | Italy |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Lid Included | Yes |
| Color | Gray, Metallic Silver |
| Color Tone | Greys, Silver Tones |
