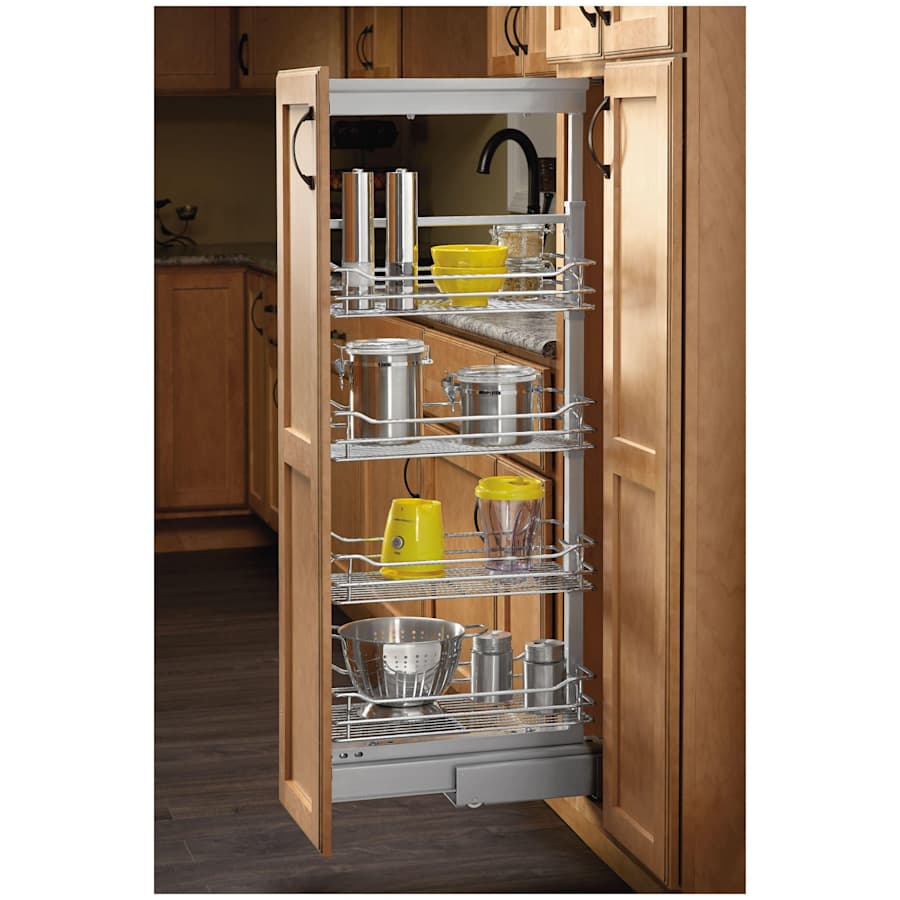

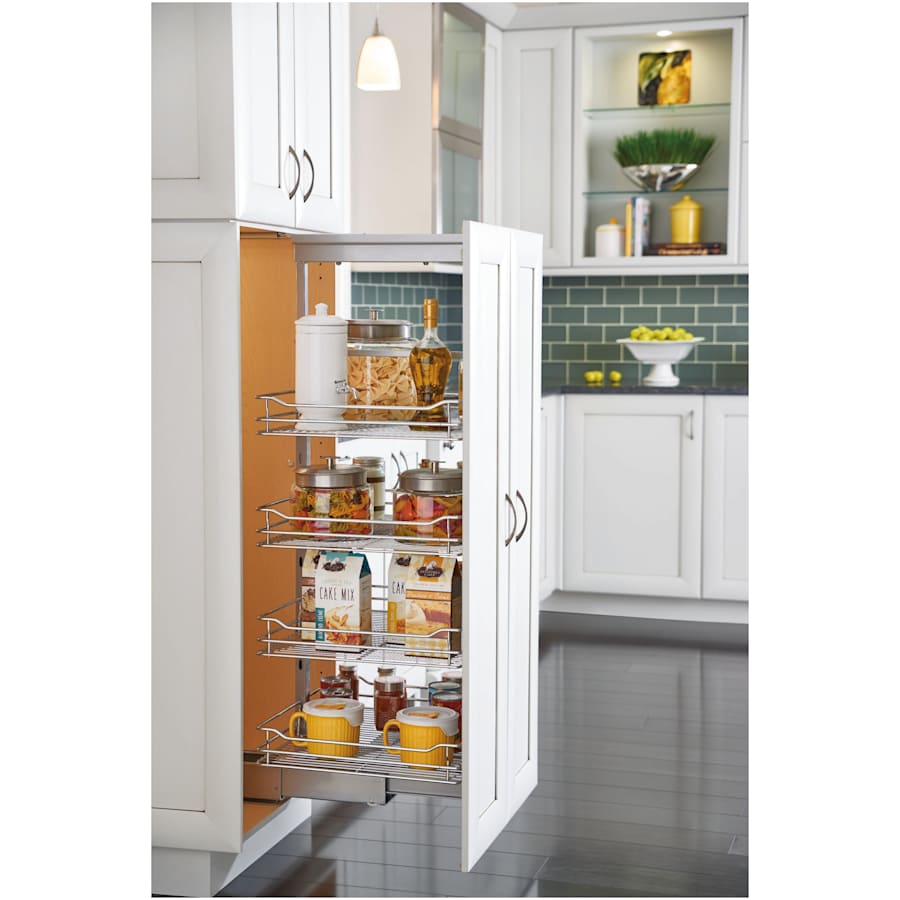

Enhance functionality and preserve a stylish image with Rev-A-Shelf’s pull out pantry. The 5700 CR series is available in a plentiful selection of sizes and is designed with a 250 lb. rated slide system for a quiet glide out function. This accessory features micro-adjustment door mounting brackets and top and bottom slide covers for a finished look. The pull out pantries are kit packaged with frame, baskets, and door mounting brackets in one carton.
Features:

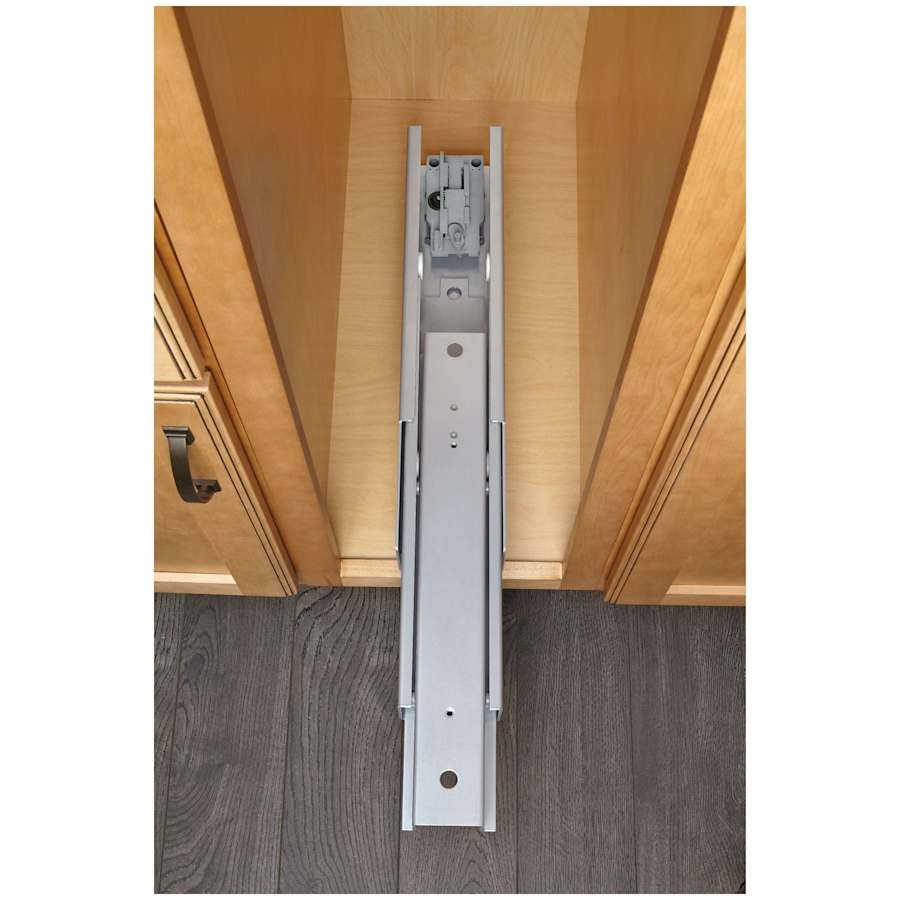

Three (3) piece heavy duty soft close full extension progressive slide system

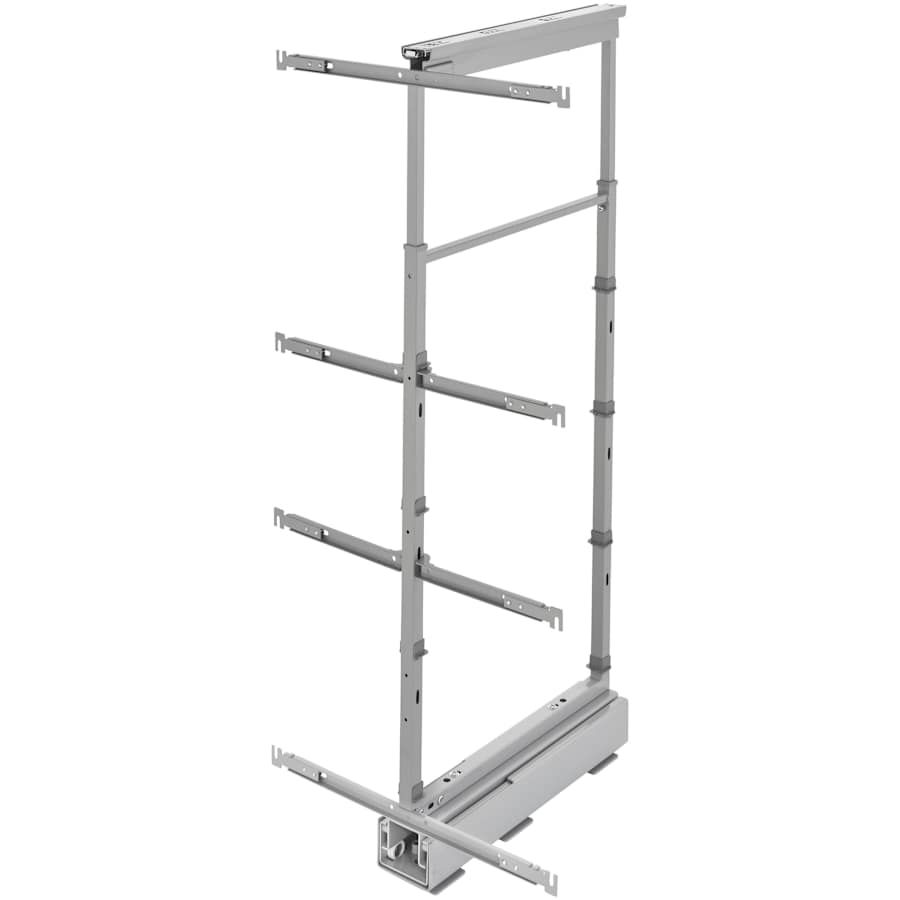

Adjustable frame height of 58-1/4″ to 65-3/4″
Basket width of 14 inches
Due to size/weight item normally ships via LTL carrier
Optional extender brackets (57-EXTEND-1) allows you to move top basket all the way up (Sold separately)
Designed for a cabinet with 14-1/2″ or greater opening

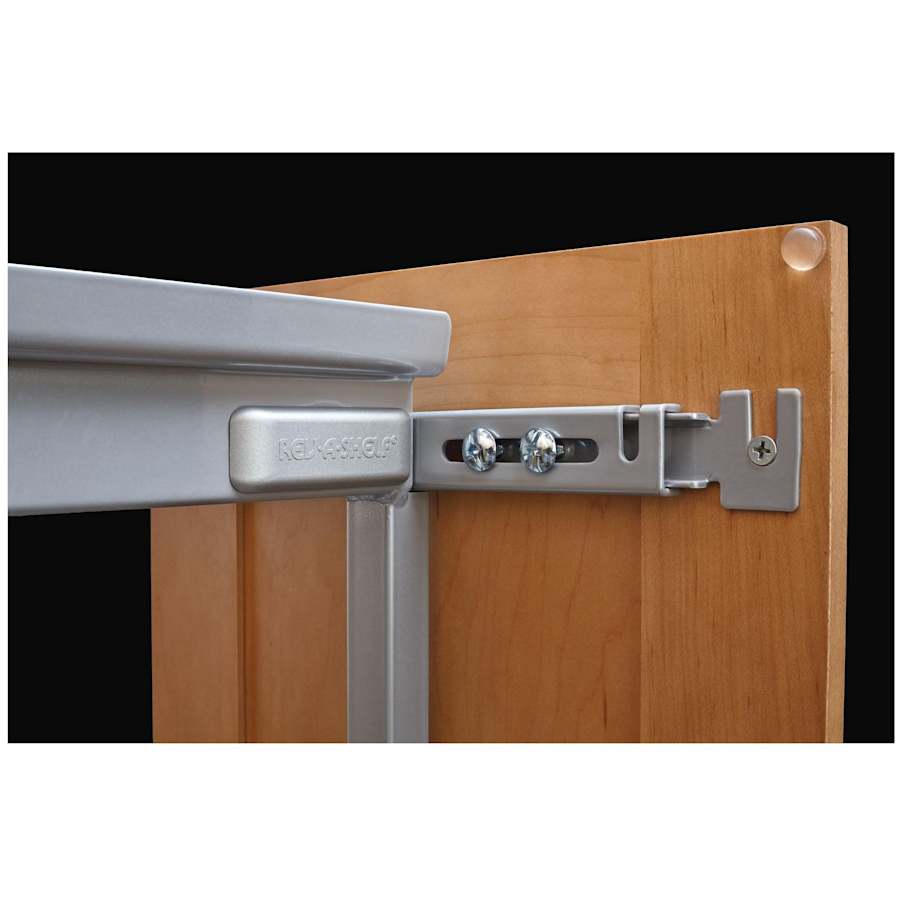

Adjustable door mount brackets are included and required for operation
Heavy gauge plated metal wire construction for durability
250 lb full-extension progressive slides with soft close
Covered by Rev-A-Shelf’s limited lifetime warranty
Specifications:
Height: 58-1/4″
Width: 14-1/4″
Depth: 21-11/16″
Weight Capacity: 250 lb
Minimum Opening Width: 14-1/2″
Minimum Opening Height: 58-1/4″
Includes:

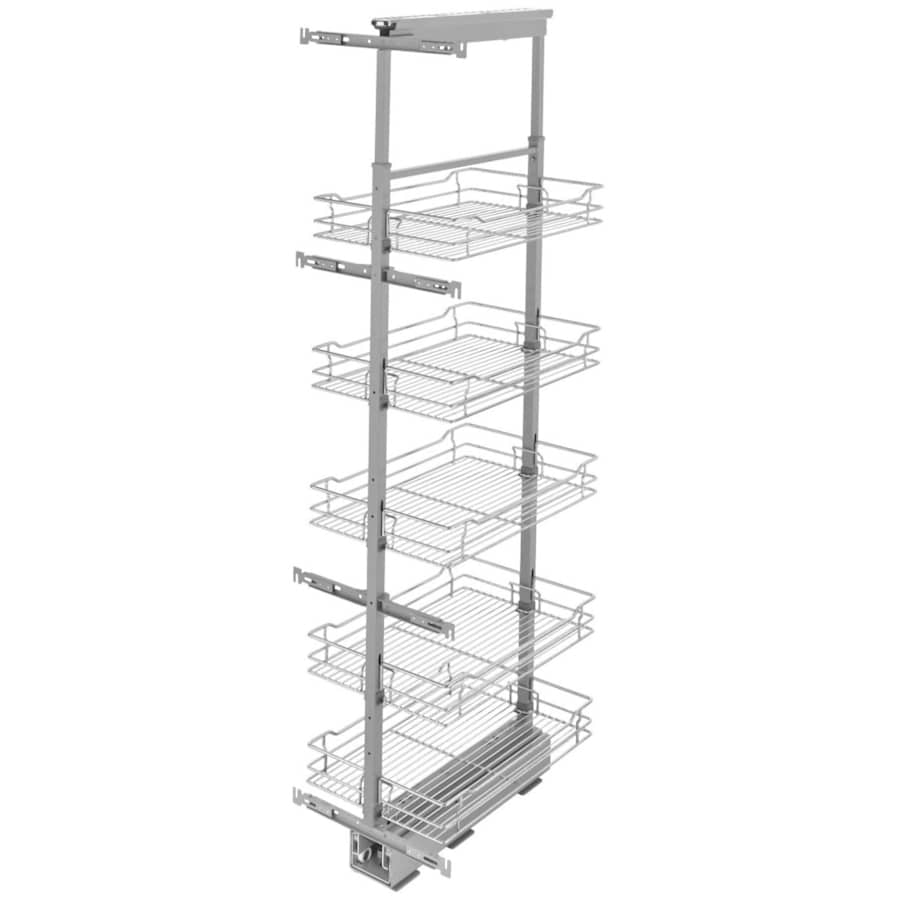

One (1) chrome pantry
Five (5) baskets
Mounting hardware
Additional Rev-A-Shelf Links
View the Manufacturer Warranty
Browse all Rev-A-Shelf Products
Rev-A-Shelf Modern Collection
Specifications
| Depth | 21.69 in. |
| Height | 58.25 in. |
| Product Weight | 69 lbs. |
| Width | 14.25 in. |
| Cabinet Fit Size | 14.5 in. |
| Minimum Opening Depth | 21.75 in. |
| Minimum Opening Height | 58.25 in. |
| Minimum Opening Width | 14.5 in. |
| Max Capacity (Pounds) | 250 lbs. |
| Insulation Type | Cabinet Door, Cabinet Top and Bottom |
| Material | Steel |
| Adjustable | Yes |
| Assembly Required | Yes |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Number Of Shelves | 5 |
| Approved for Commercial Use | No |
| Collection | Modern |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
