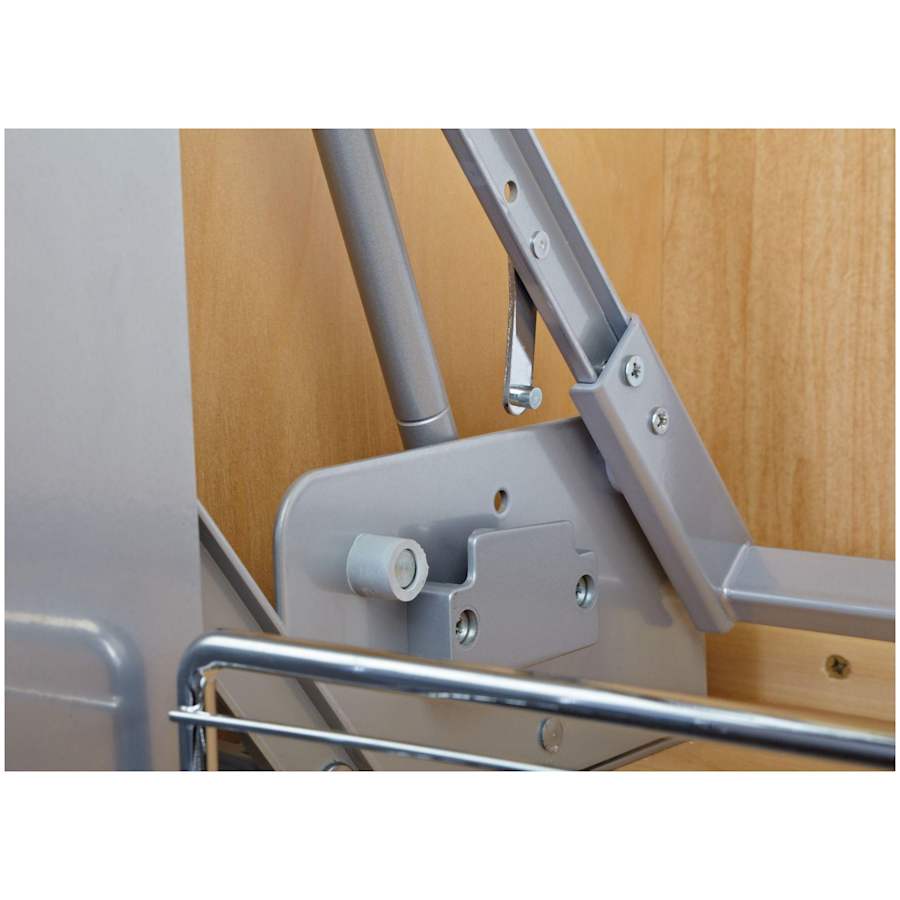

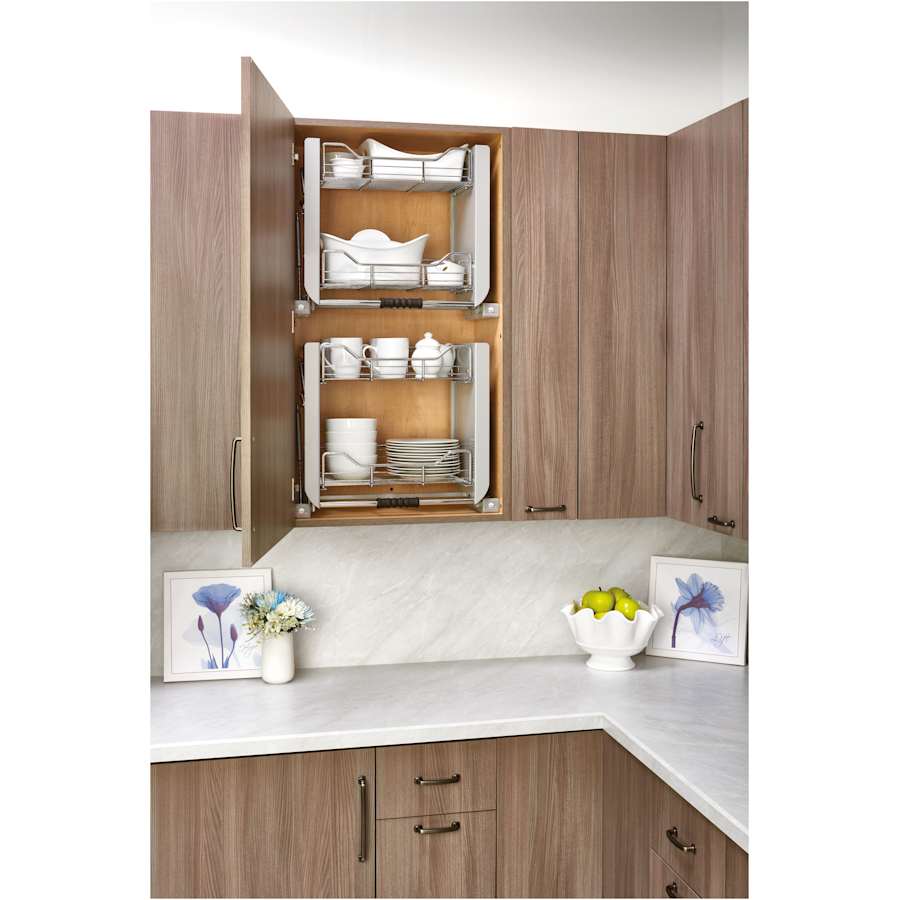

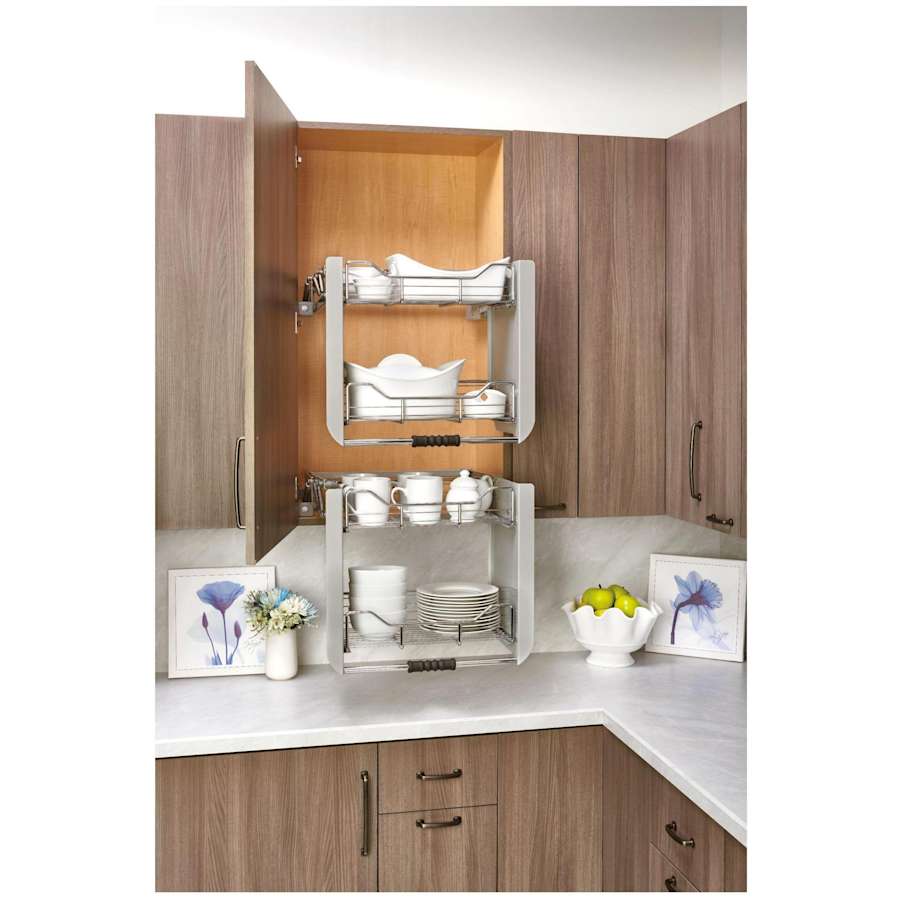

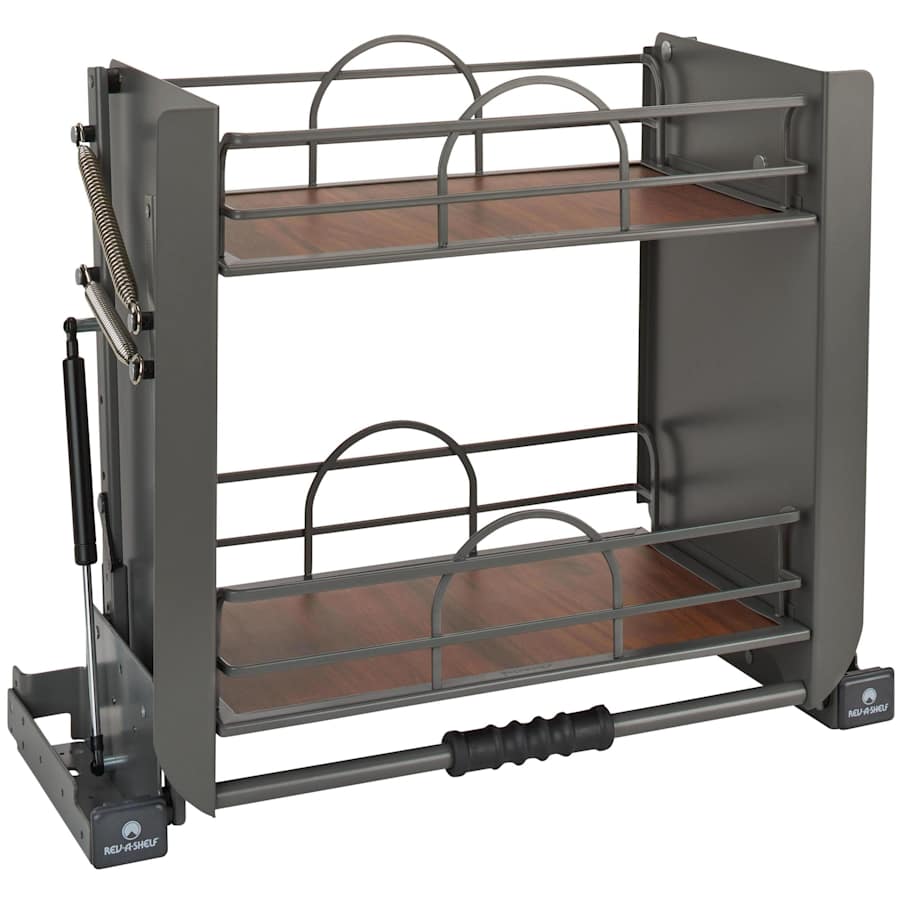

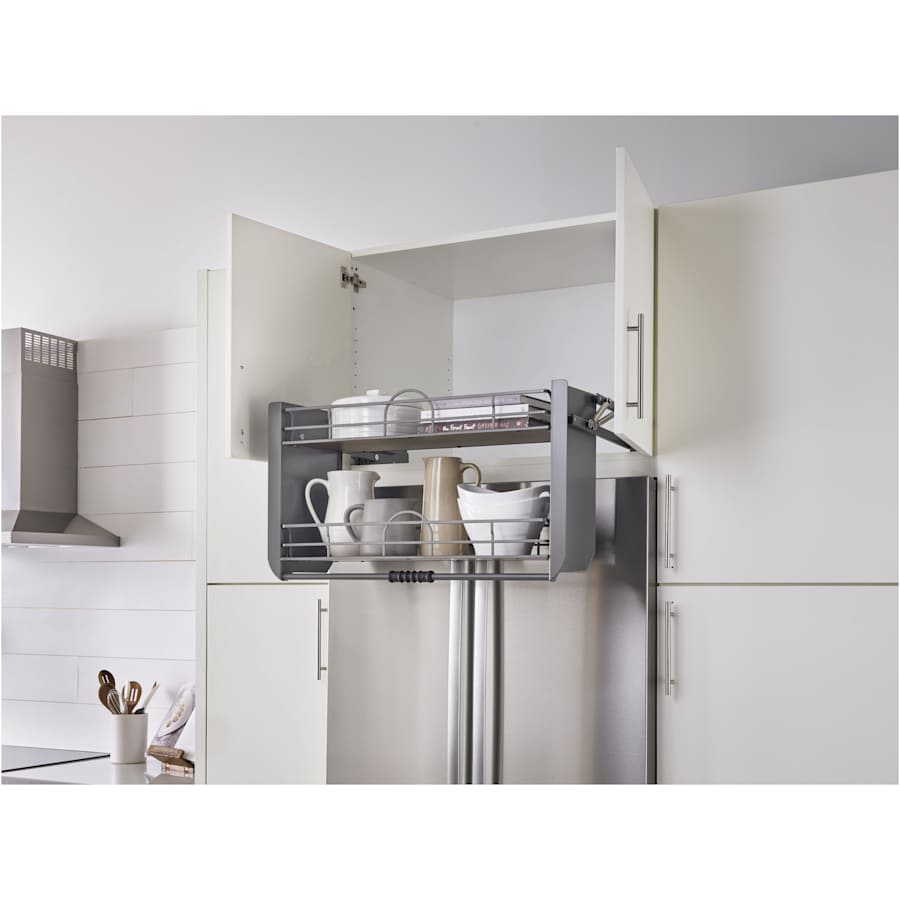

Tired of dragging the dining room chair into the kitchen to reach everything in your wall cabinet? Introducing Rev-A-Shelf’s magnificent pull-down shelving system. The 5PD series is a two-tiered pull-down shelf that brings hard-to-reach items down 11-1/2″, while pulling out 16-3/4″ from the cabinet. This functional pull out features a unique gas assisted lifting/lowering mechanism that provides unparalleled stability through the entire range of motion. The pull-down shelving system includes both side and bottom mount brackets and is available for wall 24″ and 36″ cabinets.
Features:
Brings items down 11-1/2″ and 16-3/4″ out of cabinet with a gas assisted piston
Has a minimum and maximum width of 22-1/4″ to 23-2/3″
Locks in the down position for hands free use
Perfect for taller cabinets and can use more than one

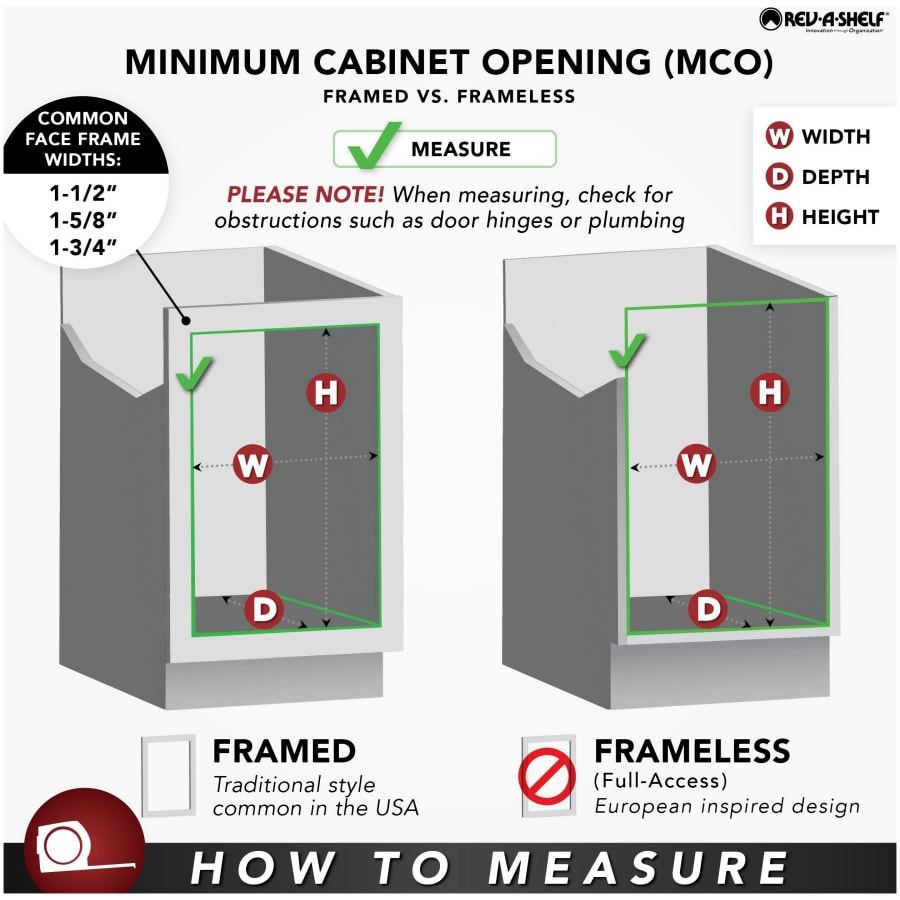

Designed for a wall cabinet with at least a 21″ opening on face frame cabinet and 22-1/2″ on frameless
Constructed with a heavy-duty metal frame with solid bottom surface

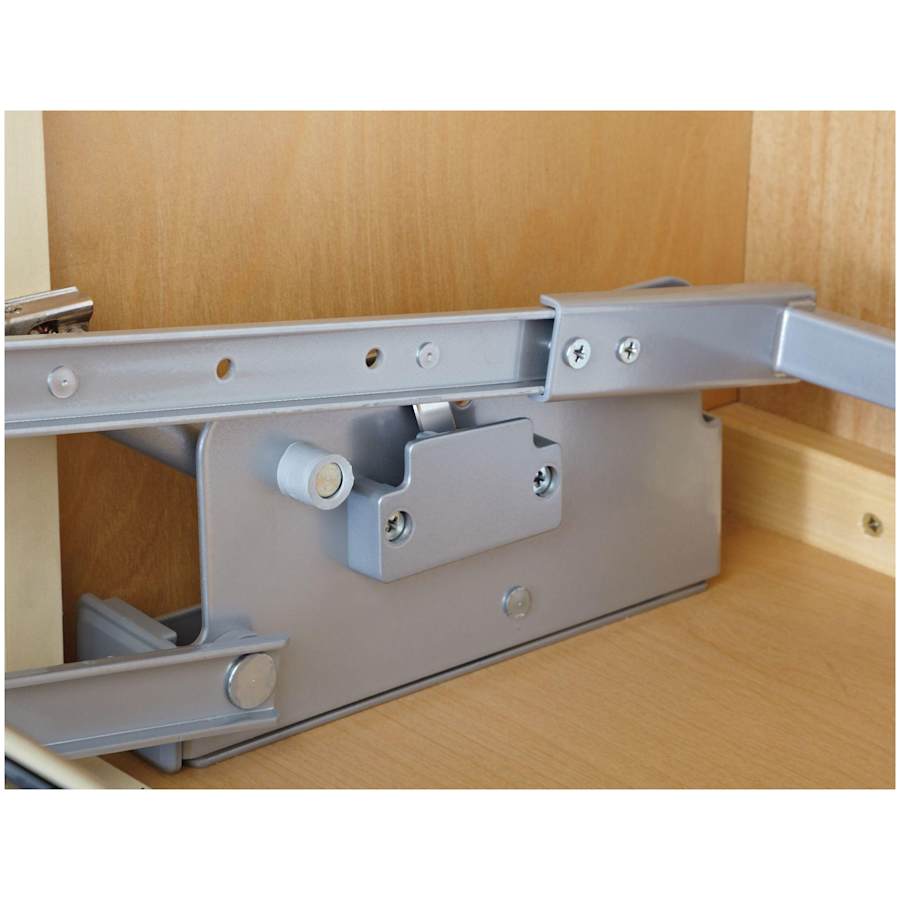

Can be mounted to the floor or interior side of cabinet
Covered by Rev-A-Shelf’s limited lifetime warranty
Specifications:
Height: 18-1/4″
Width: 22-3/16″
Depth: 10-1/8″
Weight Capacity: 17 lb
Minimum Opening Width: 21″
Minimum Opening Height: 18-1/2″
Includes:
One (1) pull down shelving system
Mounting hardware
Additional Rev-A-Shelf Links
View the Manufacturer Warranty
Browse all Rev-A-Shelf Products
Rev-A-Shelf Modern Collection
Specifications
| Height | 18.22 in. |
| Product Weight | 20.7 lbs. |
| Depth | 10.11 in. |
| Width | 22.2 in. |
| Max Capacity (Pounds) | 17 lbs. |
| Cabinet Fit Size | 21 in. |
| Minimum Opening Depth | 10.75 in. |
| Minimum Opening Height | 18.5 in. |
| Minimum Opening Width | 21 in. |
| Minimum Opening | 20.25 in. |
| Material | Steel |
| Insulation Type | Cabinet Bottom, Cabinet Side |
| Adjustable | No |
| Soft Close | No |
| Assembly Required | Yes |
| Number Of Shelves | 2 |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Modern |
| Approved for Commercial Use | No |
| Installation Hardware Included | Yes |
| Color | Orion Gray, Polished Chrome |
| Color Tone | Greys, Silver Tones |
