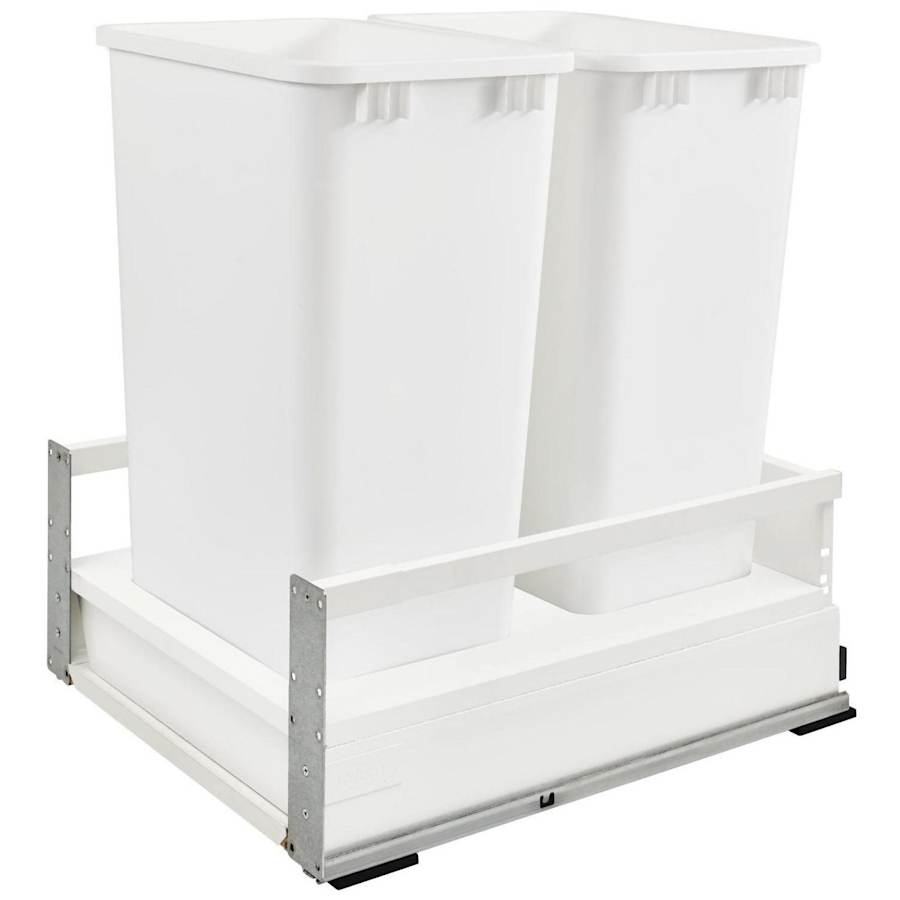

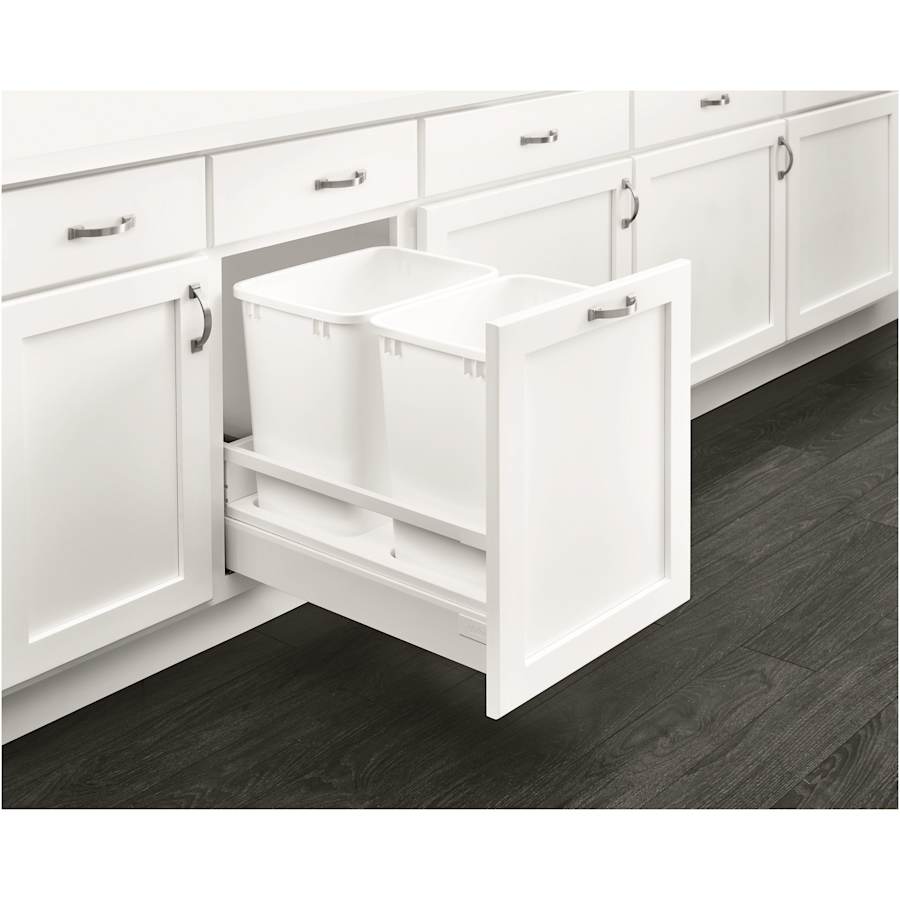

Rev-A-Shelf brings another complete waste container designed for base cabinets. Complete with Blum Servo-Drive touch-to-open technology, they come preassembled with TANDEMBOX, and heavy duty full extension soft-close slide system.
Features:

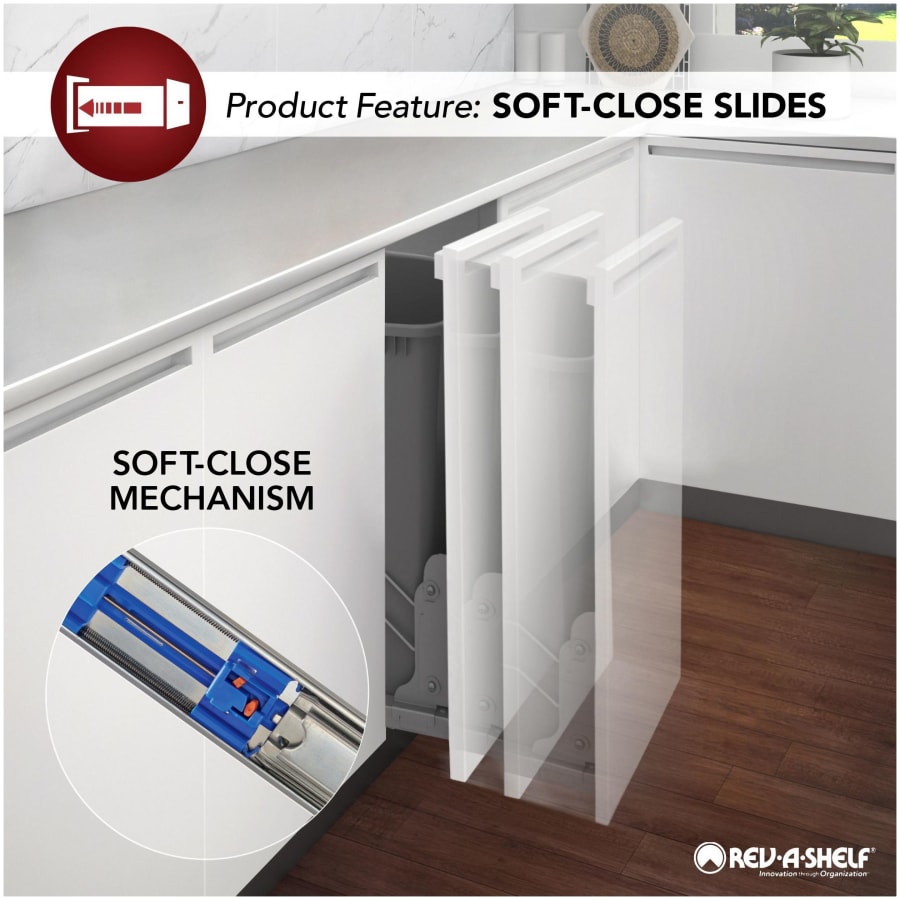

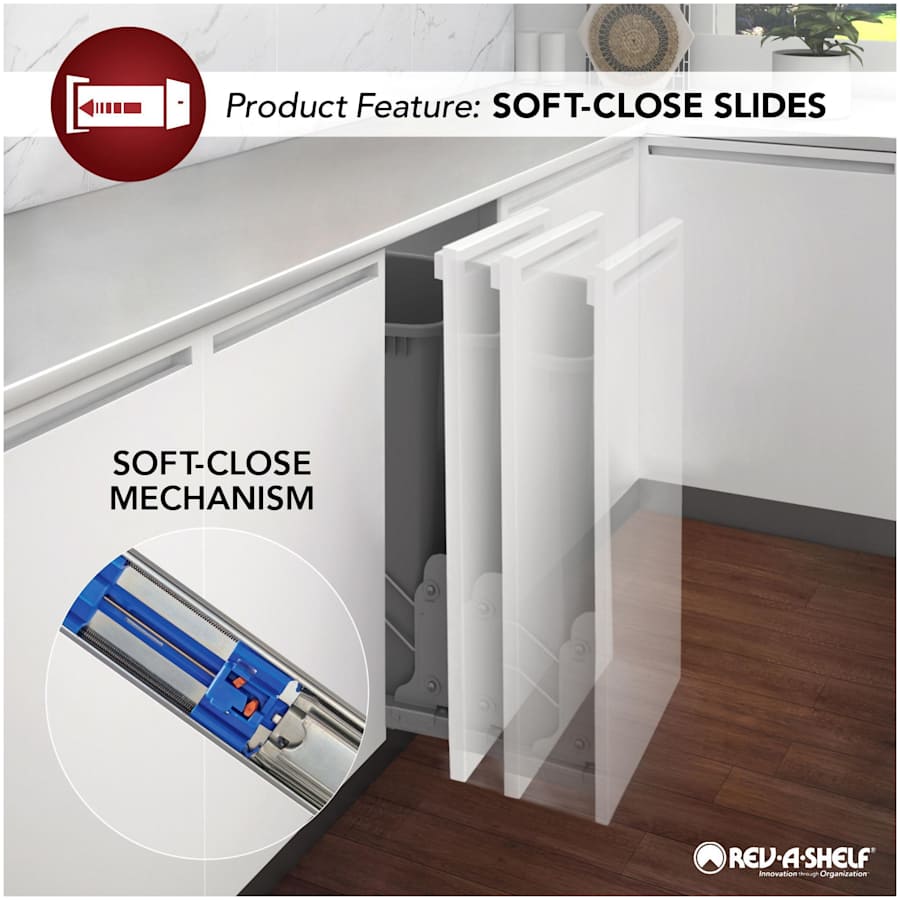

Undermount soft close full extension concealed slide system
Overall product is 18-1/2″ wide, but only requires an 18″ opening to function properly
Servo-Drive electrical system has a motor that will push waste container out of the cabinet
Must have electrical outlet on inside of cabinet
This requires a full-height cabinet (no drawer above door)
Designed for cabinet opening width of 18″ to 21″
Adjustable door mount brackets are included and required for operation
Optional Rev-A-Shelf lids available, (sold separately) however the rear lid may be limited to use due to variety of countertops and/or handles
Constructed with a heavy-duty metal frame with solid bottom surface
Mount existing cabinet door to unit for an easy open and close process
110 lb full-extension BLUMOTION slides with soft close
BLUM – Bump to open Servo Drive system
Covered by Rev-A-Shelf’s limited lifetime warranty
Servo Drive:
Electrical outlet required
One touch mechanical open
Touch to close then engages soft close slides
System can be de-activated via a switched outlet
Voltage: 100-240v
Wattage: 12
Specifications:
Depth: 22-5/8″
Height: 23″
Width: 18-1/2″
Minimum Opening Width: 18″
Minimum Opening Height: 23-1/4″
Includes:
Two (2) 50 quart waste containers
One (1) metal frame
One (1) pair of slides
One (1) servo drive
Door mount brackets
Mounting hardware
Additional Rev-A-Shelf Links
View the Manufacturer Warranty
Browse all Rev-A-Shelf Products
Rev-A-Shelf TANDEMBOX Collection
Specifications
| Depth | 22.6 in. |
| Height | 23 in. |
| Width | 18.5 in. |
| Product Weight | 30.6 lbs. |
| Cabinet Fit Size | 18 in. |
| Minimum Opening Depth | 22.75 in. |
| Minimum Opening Height | 23.25 in. |
| Minimum Opening Width | 18 in. |
| Capacity (Quarts) | 50 |
| Material | Steel |
| Insulation Type | Cabinet Bottom |
| Assembly Required | Yes |
| Soft Close | Yes |
| Adjustable | No |
| Extension Type | Full Extension |
| Number of Bins | 2 |
| Approved for Commercial Use | No |
| Collection | TWCSD |
| Country Of Origin | Austria |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Lid Included | No |
| Color | White |
| Color Tone | Whites |
