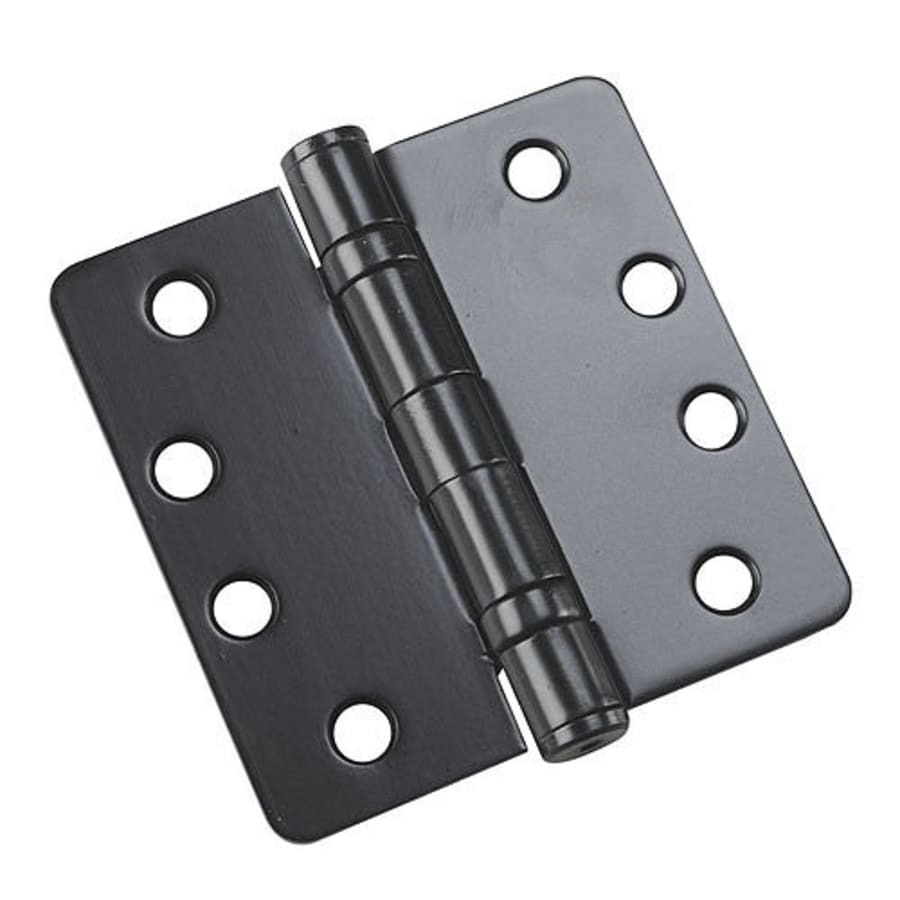

Features:
Includes three hinges (3) in each order
Features precisely machined 1/4″ radius corners
Tested for residential and commercial strength application
Packaged with 8 wood screws and 8 machine screws for simple, out of the box installation
Constructed with 8 screw holes in an arc arrangement for maximum mounting strength
Product Technologies:
Ball Bearing Hinge: Ball bearing hinges are designed to handle the extra stress brought on by high traffic doorways. The greased bearings reduce the rotational friction extending the life of a hinge in heavy use situations. These hinges tend to be more durable than standard, or plain bearing hinges.
Material Type: Steel is cheap, strong, and durable, making it a favorite for hinges of all types, despite it being slightly more prone to rusting than solid brass or stainless steel.
Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.
Specifications:
Height: 4″
Width: 4″
Material: Steel
Mounting Type: Mortise
Gauge: 0.125″
Number of Knuckles: 8
Number of Screw Holes: 5
Additional Richelieu Links
Browse all Richelieu Products
Specifications
| Height | 4 in. |
| Width | 4 in. |
| Gauge | 0.125 |
| Quantity | 3 |
| Corners | 1/4" Radius Corner |
| Hinge Size | 4 x 4 in. |
| Max Capacity (Pounds) | 55 lbs. |
| Material | Steel |
| Thermostat | Traditional |
| Mounting Type | Mortise |
| Hinge Type | Ball Bearing |
| Hole Pattern | Arc |
| Number Of Hooks | 8 |
| Number of Knuckles | 5 |
| Removable Pin | Yes |
| Approved for Commercial Use | Yes, No |
| Installation Hardware Included | Yes |
| Color | Black, Brushed Nickel |
| Color Tone | Blacks, Nickel Tones |
