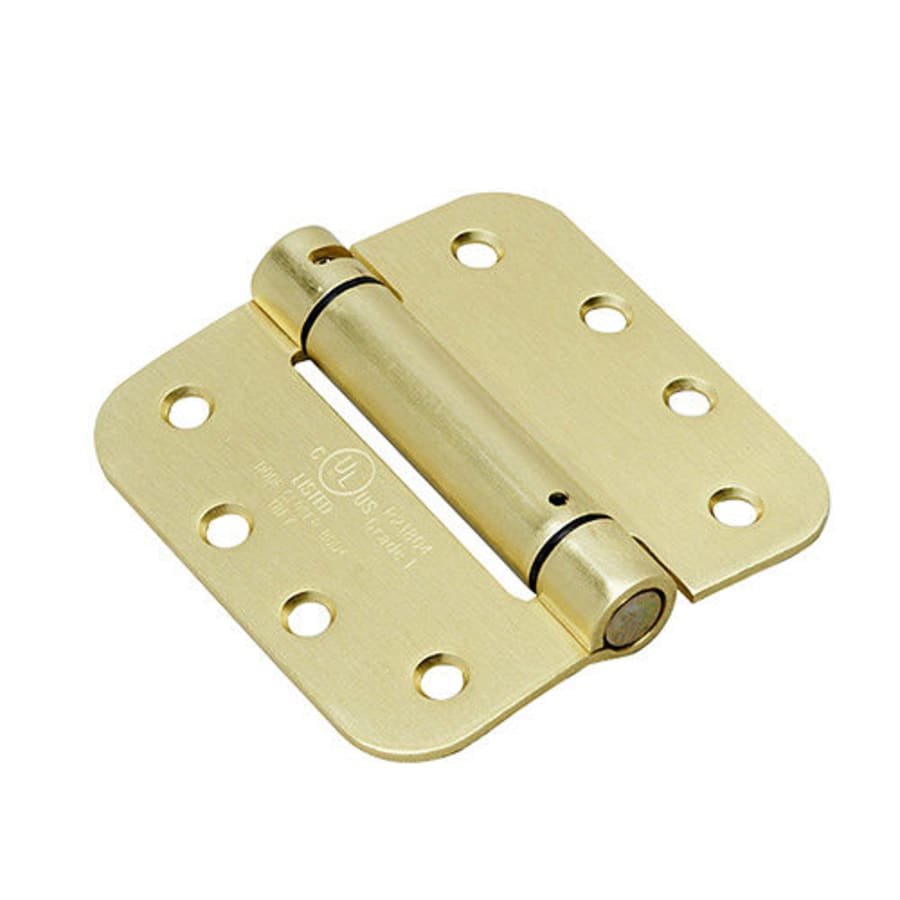

Features:
Includes a single hinge in each order
Features precisely machined 5/8″ radius corners
Tested for residential and commercial strength application
Packaged with 8 wood screws and 8 machine screws for simple, out of the box installation
Constructed with 8 screw holes in an arc arrangement for maximum mounting strength
Product Technologies:
Spring Hinge: These single action hinges are fitted with springs in the barrel to bring an open door back to a closed position automatically. Great where door space is at a premium and door closers are impractical. With double action hinges, the door is able to move in either direction.
Material Type: Steel is cheap, strong, and durable, making it a favorite for hinges of all types, despite it being slightly more prone to rusting than solid brass or stainless steel.
Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.
Specifications:
Height: 4″
Width: 4″
Material: Steel
Mounting Type: Mortise
Gauge: 0.0938″
Number of Knuckles: 3
Number of Screw Holes: 8
Additional Richelieu Links
Browse all Richelieu Products
Specifications
| Height | 4 in. |
| Width | 4 in. |
| Quantity | 1 |
| Corners | 5/8" Radius Corner |
| Gauge | 0.0938 |
| Hinge Size | 4 x 4 in. |
| Max Capacity (Pounds) | 35 lbs. |
| Material | Steel |
| Mounting Type | Mortise |
| Thermostat | Transitional |
| Hinge Type | Spring |
| Hole Pattern | Arc |
| Number Of Hooks | 8 |
| Number of Knuckles | 3 |
| Removable Pin | No |
| Approved for Commercial Use | Yes, No |
| Installation Hardware Included | Yes |
| Color | Brass, Brushed Nickel |
| Color Tone | Brass Tones, Nickel Tones |
