The balance of profile, proportion, and performance: this is the equation that defines the Ode Collection. The geometric meeting of circle and square is calculated to equal measurements, for a design with the look of modernist art. A round base merges with a rectangular spout, for a seamless form. Light and shadow on curve and line create subtle reflections. The whole is juxtaposed by the angled handle. Form mirrors function, as each element has a purpose to enhance performance as well as elegance.

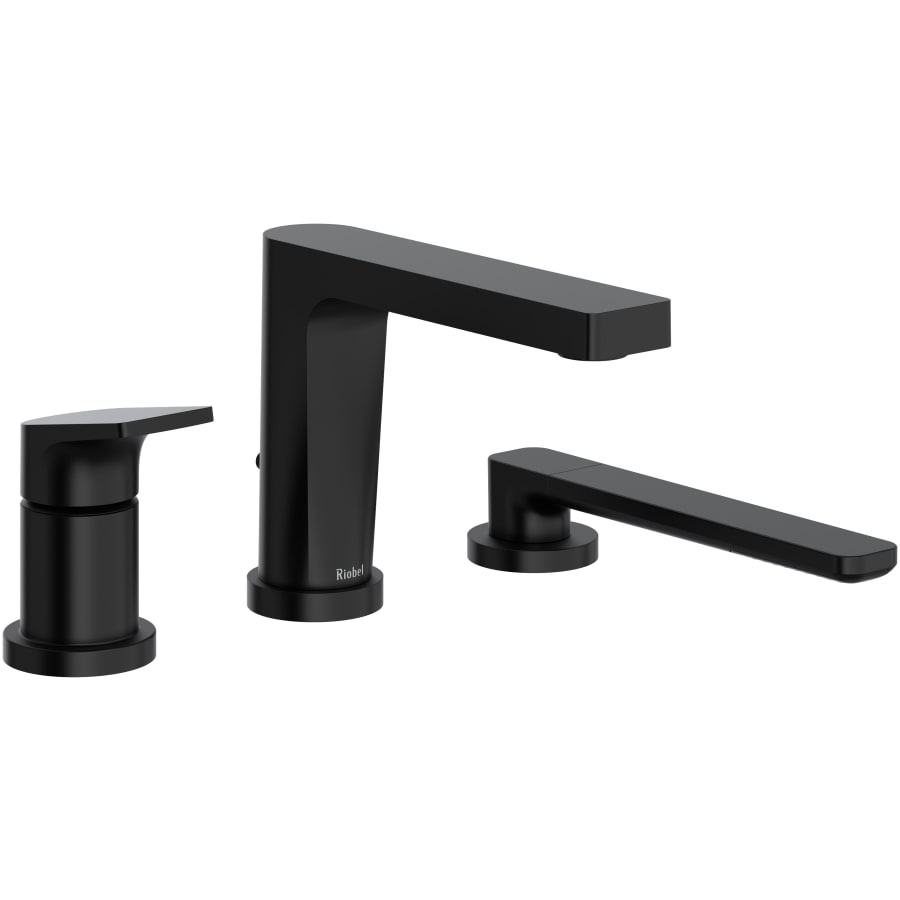

Riobel TOD10 Features:
Covered under Riobel’s limited lifetime warranty
Constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the Ode line
Includes hand shower – 1 function hand shower handy for rinsing down the tub or just rinsing off after a bath
Widespread deck mounted installation – 2 hole faucet with 8″ faucet centers
Smooth single handle operation
1 handle included with faucet
Rough in valve not included – options will be presented at check-out
Integrated diverter included – located on the tub spout
Riobel TOD10 Specifications:
Height: 5-3/8″ (bottom to top of faucet)
Spout Height: 4-5/8″ (deck to spout outlet)
Spout Reach: 9″ (center of faucet body to center of spout outlet horizontally)
Flow Rate: 4.6 gallons-per-minute
Hand Shower Flow Rate: 1.8 gallons-per-minute
Hose Length: 59″ (deck to spout outlet)
Max Deck Thickness: 1-1/4″ (cannot mount on thicker decks)
Number of Faucet Holes: 2 (minimum number of holes required for installation)
Faucet Centers: 8″ (center-to-center distance between handle installation holes)
Additional Riobel Links
View the Manufacturer Warranty
Browse all Riobel Products
Riobel Ode Collection
Specifications
| Height | 5.375 in. |
| Flow Rate (GPM) | 4.6 |
| Max Deck Thickness | 1.25 in. |
| Faucet Centers | 8 in. |
| Spout Height | 4.625 in. |
| Spout Reach | 9 in. |
| Water Connection | 1/2" |
| Handshower Flow Rate | 1.8 |
| Hose Length | 59 in. |
| Thermostat | Transitional |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Faucet Holes | 2 |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Faucet Type | Bathtub Faucet |
| Spray Settings | 1 |
| Bridge Faucet | No |
| Handle Material | Brass |
| Mounting Type | Widespread |
| Spout Type | Fixed |
| Valve Type | Ceramic Disc |
| Water Connection Type | NPT |
| Handshower | Single Function |
| Waterfall Faucet | No |
| Clawfoot Tub Filler | No |
| Certifications | ASME, CSA |
| Collection | Ode |
| Approved for Commercial Use | Yes |
| ADA | No |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Valve Included | No |
| Diverter Included | Yes |
| Integrated Diverter | Yes |
| Color | Black, Brushed Gold, Chrome |
| Color Tone | Blacks, Gold Tones, Silver Tones |
