The thermal springs at Acqui Terme in Italy have been a spa destination since Roman times, but it was not until the 19th century that high society made it fashionable. The Acqui Collection is inspired by the lavish style of the town’s Grand Spa hotels. Classical design, curvilinear forms, and baroque details define distinction. Handle and finish options create a range of customizable combinations to enhance the look even further. All elements come together to express a luxurious spa experience for the bath.

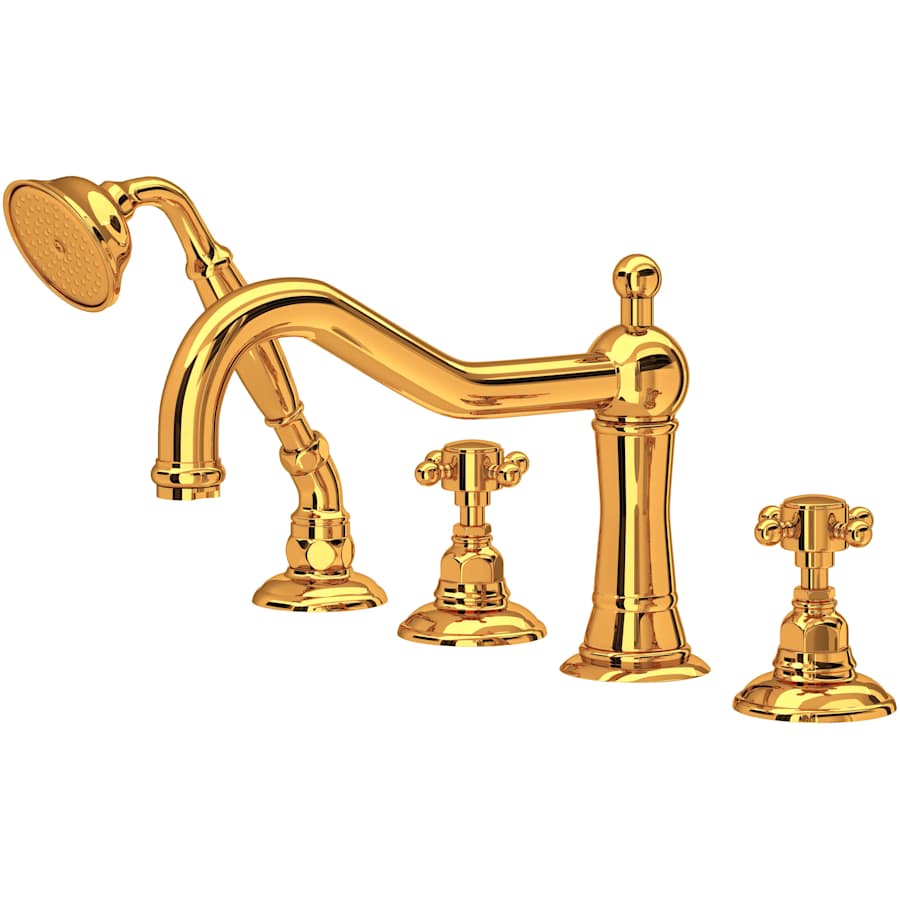

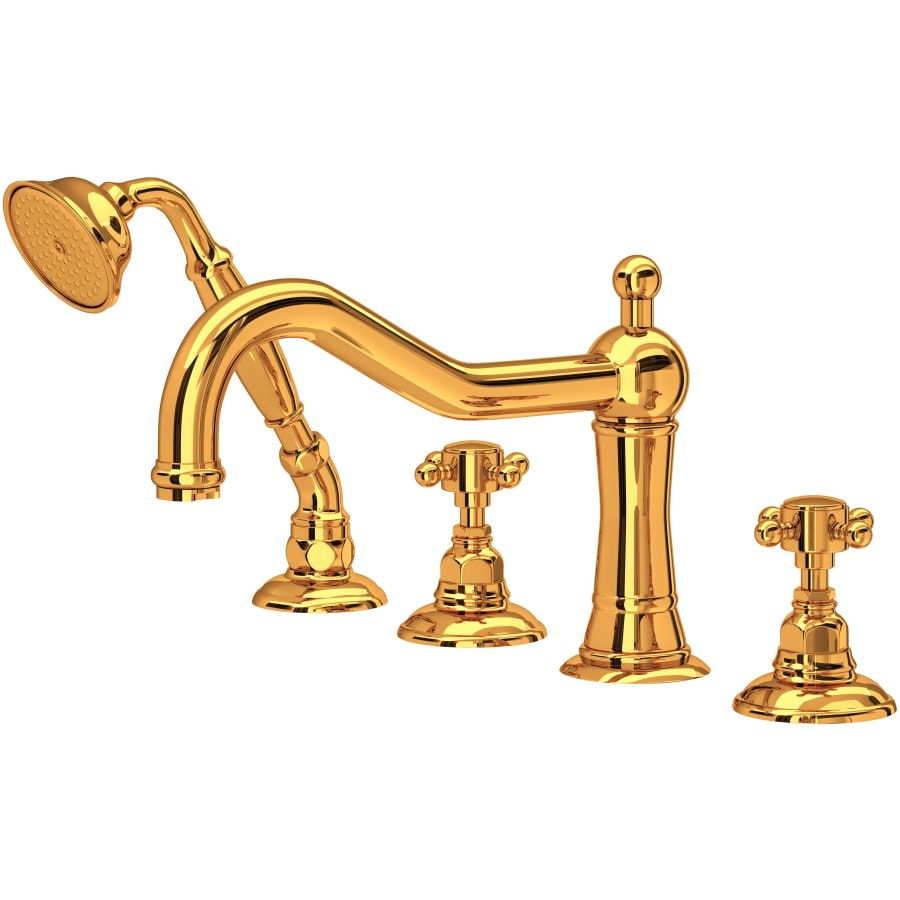

Rohl A1404XM Features:
Covered under Rohl’s limited lifetime warranty
Constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the Acqui and Country Bath line
Includes hand shower – 1 function hand shower handy for rinsing down the tub or just rinsing off after a bath
Widespread deck mounted installation – 3 hole faucet with 10″ faucet centers
Dual handles operate with 1/4 turn
2 handles included with faucet
Faucet includes ceramic disc valve
Integrated diverter included – located on the tub spout
Rohl A1404XM Specifications:
Height: 7-1/2″ (bottom to top of faucet)
Spout Height: 3-5/8″ (deck to spout outlet)
Spout Reach: 9-7/8″ (center of faucet body to center of spout outlet horizontally)
Flow Rate: 15 – 17 gallons-per-minute
Hand Shower Flow Rate: 1.8 gallons-per-minute
Hose Length: 78-3/4″ (deck to spout outlet)
Max Deck Thickness: 2-1/8″ (cannot mount on thicker decks)
Number of Faucet Holes: 3 (minimum number of holes required for installation)
Faucet Centers: 10″ (center-to-center distance between handle installation holes)
Faucet Hole Size: 1-5/16″
Additional Rohl Links
View the Manufacturer Warranty
Browse all Rohl Products
Rohl Acqui Collection
Specifications
| Height | 7.5156 in. |
| Faucet Centers | 10 in. |
| Hose Length | 78.7343 in. |
| Flow Rate (GPM) | 15, 16, 17 |
| Water Connection | 3/4" |
| Faucet Hole Size | 1.3125 in. |
| Max Deck Thickness | 2.1250 in. |
| Spout Height | 3.6562 in. |
| Spout Reach | 9.8750 in. |
| Handshower Flow Rate | 1.8 |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Thermostat | Traditional, Victorian |
| Faucet Holes | 3 |
| Handle Material | Brass |
| Handle Style | Cross |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Spout Type | Fixed |
| Mounting Type | Widespread |
| Faucet Type | Bathtub Faucet |
| Spray Settings | 1 |
| Water Connection Type | NPT |
| Handshower | Single Function |
| Bridge Faucet | No |
| Waterfall Faucet | No |
| Clawfoot Tub Filler | No |
| ADA | No |
| Collection | Acqui, Country Bath |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Country Of Origin | Italy |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ASME, CSA |
| ASSE Code | A112.18.1 |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Low Lead Compliant | No |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| WaterSense Certified | No |
| Installation Hardware Included | Yes |
| Diverter Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Integrated Diverter | Yes |
| Color | Italian Brass, Polished Chrome, Polished Nickel, Satin Nickel, Tuscan Brass (Living Finish), Unlacquered Brass (Living Finish) |
| Color Tone | Brass Tones, Nickel Tones, Silver Tones |
