The artistic movement known as Cubism is exemplified by modernist architecture of Milan that transforms space with linear structures. The Quartile Collection celebrates this style with geometric fixtures for the bath. A four-sided design composed of sharp contours, slender arcs, and squared-off shapes makes a decisive statement. Even the line of the spout forms a right angle with the flow of water. Authentically crafted, the Quartile Collection is equally at home with modern, industrial, and transitional design.

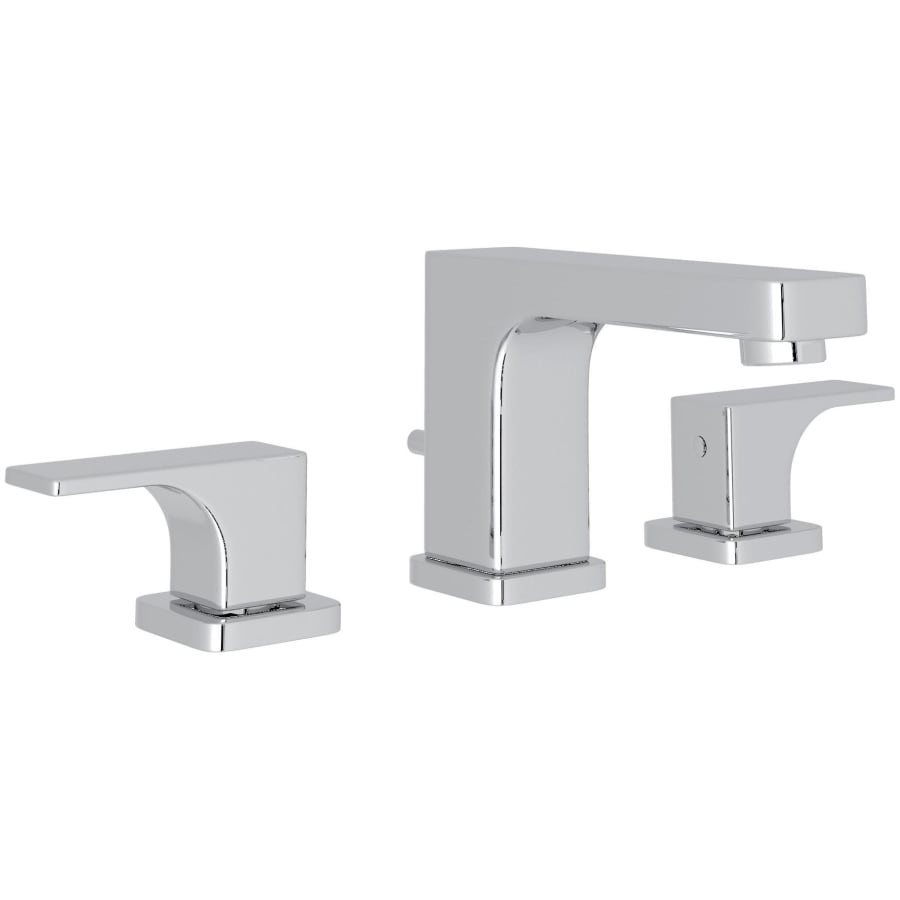

Rohl CU102L-2 Features:
Covered under Rohl’s limited lifetime warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the Quartile line
Widespread mounting type – 3 hole faucet with 8″ to 16″ centers
Deck mounted installation – 3 hole faucet mounts directly to sink or countertop
Dual lever handles control the flow and temperature of water
Faucet includes ceramic disc valve
Pop-up drain assembly included
All hardware required for installation is included
Low lead compliant
Rohl CU102L-2 Specifications:
Height: 4-1/8″ (deck to top of faucet)
Spout Height: 3-1/8″ (deck to spout outlet)
Spout Reach: 5-1/8″ (faucet base to spout outlet)
Flow Rate: 1.2 gallons-per-minute
Faucet Centers: 8″ to 16″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 1-5/8″ (cannot mount on thicker decks)
Faucet Hole Size: 1-1/4″
Faucet Holes: 3 (minimum number of holes required for installation)
Additional Rohl Links
View the Manufacturer Warranty
Browse all Rohl Products
Rohl Quartile Collection
Specifications
| Height | 4.125 in. |
| Water Connection | 1/2" |
| Faucet Centers | 10, 11, 12, 13, 14, 15, 16, 8, 9 in. |
| Faucet Hole Size | 1.25 in. |
| Flow Rate (GPM) | 1.2 |
| Max Deck Thickness | 1.625 in. |
| Spout Height | 3.125 in. |
| Spout Reach | 5.125 in. |
| Thermostat | Modern |
| Faucet Holes | 3 |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Water Connection Type | NPT |
| Handle Material | Metal |
| Handle Style | Lever |
| Electronic | No |
| Faucet Type | Bathroom Sink Faucet |
| Mounting Type | Widespread |
| Number Of Handles | 2 |
| Spout Type | Fixed |
| Valve Type | Ceramic Disc |
| Waterfall Faucet | No |
| Bridge Faucet | No |
| Vessel Faucet | No |
| Collection | Quartile |
| Certifications | ASME, CSA, NSF, UPC |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Country Of Origin | Italy |
| Commercial Warranty | 1 Year Limited |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| Drain Assembly Included | Yes |
| Installation Hardware Included | Yes |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Pop-Up Included | Yes |
| Valve Included | Yes |
| Color | Polished Chrome, Polished Nickel, Satin Nickel |
