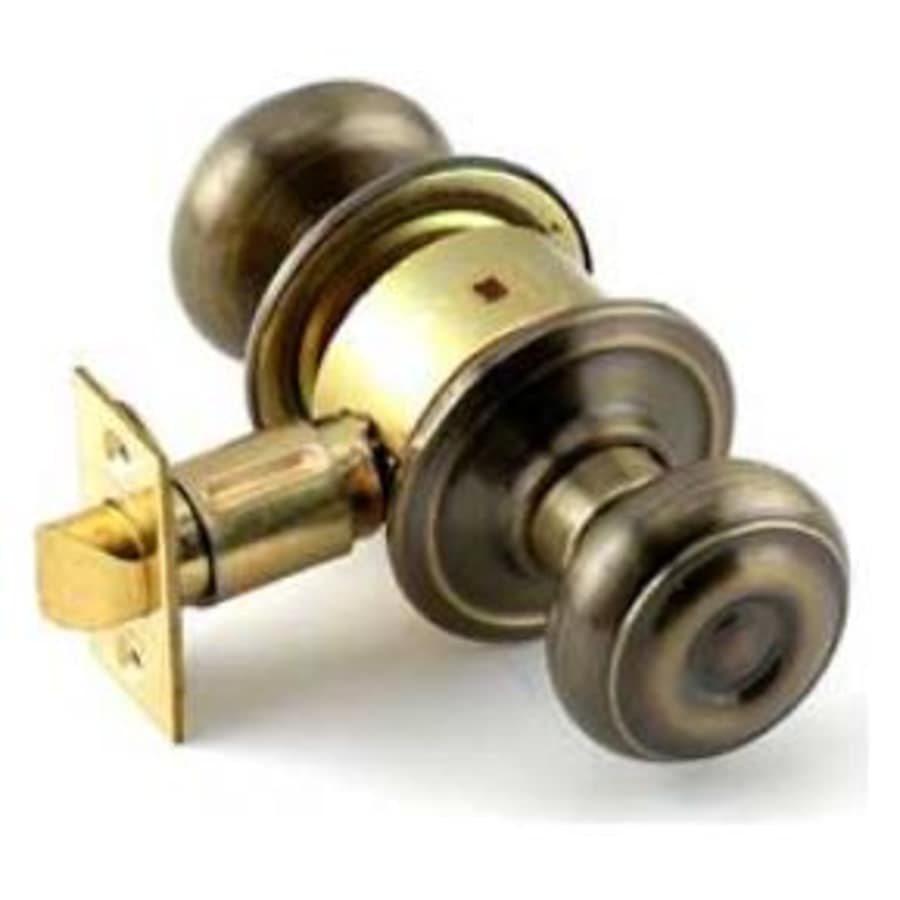

Passage Door Knob Set from the Georgian Collection
This knob set has no locking mechanism, perfect for hallways, closets and passageways.
Passage Knob set
Both knobs always unlocked.
Latch: 1″ x 2 1/4″ Square corner faceplate, 7/8″ housing diameter, 1/2″ throw
Strike: 1 1/8″ x 2 3/4″, Square corner, T-strike, box.
Door Range: 1 3/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage A-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Georgian |
| Series | A-Series |
| ADA | No |
| Manufacturer Warranty | 3 Year Limited |
| ANSI Certification | A156.2 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
Characteristics and Features
| Thermostat | Traditional |
| Style | Commercial |
| Function | Passage |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Round |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Knob Shape | Round |
| Concealed Screws | Yes |
| Panic Proof | Yes |
| Handle Design | Georgian |
| Mortise | No |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8" |
| Edge Bore | 7/8" |
| Cross Bore | 2-1/8" |
| Color | Antique Brass |
| Color Tone | Brass Tones |
