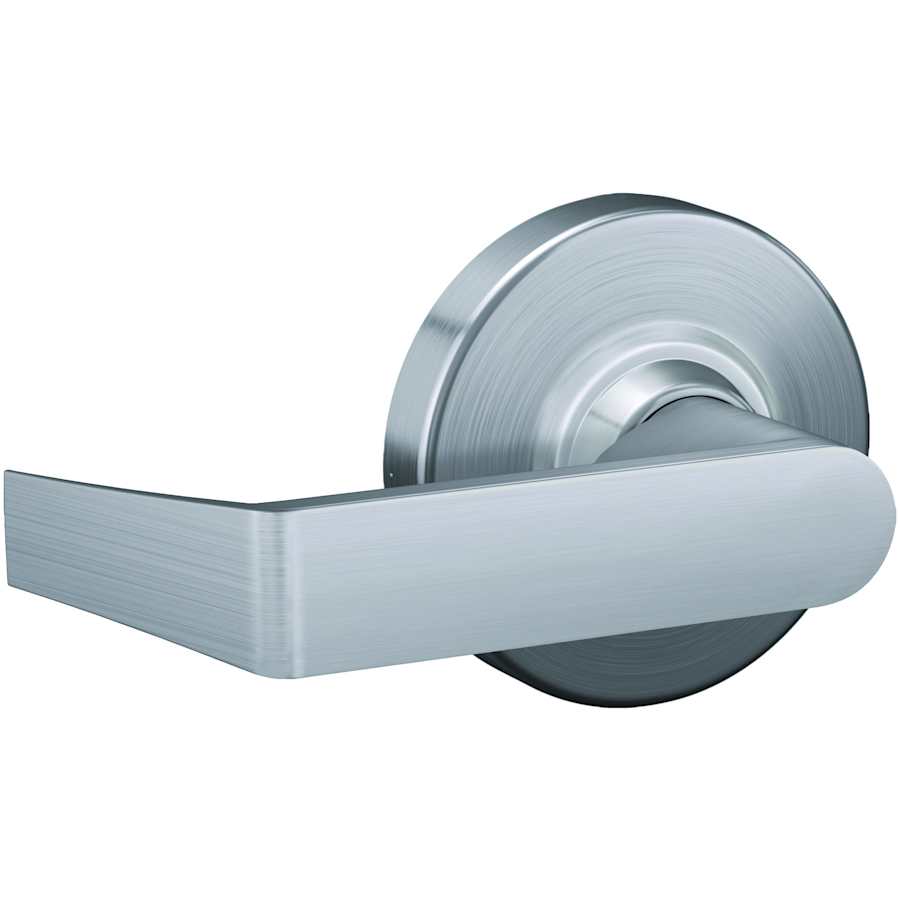

Passage Function: Both sides of this lever are always free and there is no locking function making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. A passage lever can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Exceeds criteria for BHMA Grade 2 certification
Durable construction for lasting use
Installs on doors with 1-3/8″ to 1-3/4″ thickness
Schlage offers a 10 Year limited warranty
Complies with standards of the Americans with Disabilities Act (ADA)
Fireproof for up to 3 hours when installed on fireproof door
Specifications:
Backset: 2-3/4″, 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Length: 6-5/16″
Handle Projection: 3-1/4″
Trim Width: 3-7/16″
Trim Height: 3-7/16″
Product Weight: 4 lbs.
Latch Faceplate: Square Corner
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ALX Collection
Specifications
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 3.25 in. |
| Trim Height | 3.4375 in. |
| Trim Width | 3.4375 in. |
| Product Weight | 4 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 6.3125 in. |
| Concealed Screws | Yes |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Material | Zinc |
| Rosette Shape | Round |
| Thermostat | Contemporary |
| Handle Style | Lever |
| Latch Faceplate | Square Corner |
| Lever Shape | Designer |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Fire Rated | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Series | ALX |
| Country Of Origin | Mexico |
| Certifications | UL |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
