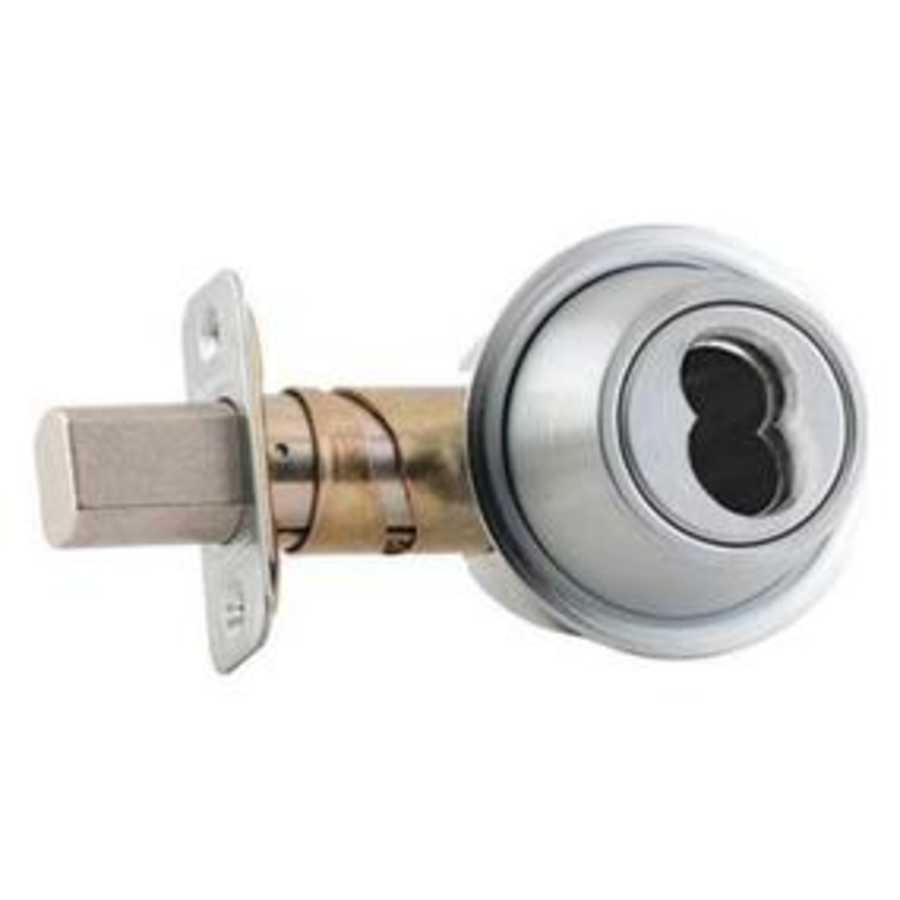

Schlage B500 Series Single Cylinder Deadbolt Without Core Cylinder

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Single Cylinder Function: Single Cylinder function specifies that the deadbolt is thrown by a thumb turn on the interior while the exterior uses a key for locking and unlocking. This deadbolt does not include the core cylinder, allowing you to select just the right core for your needs.

BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

Features:

Exceeds qualifications for ANSI 156.5 and BHMA Grade 2 certifications
Constructed of brass and bronze for strength and durability
Select your preference of square, round or drive-in latch
1″ deadbolt throw is hardened steel and saw-resistant
Schlage provides a three year limited warranty for commercial products
This deadbolt is ADA compliant
Designed for commercial use

Specification:

Backset: 2-3/8″, 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″, 1-7/8″, 2″
Latch Faceplate: Drive-In, Round Corner, Square Corner
Deadbolt: 1″ throw
