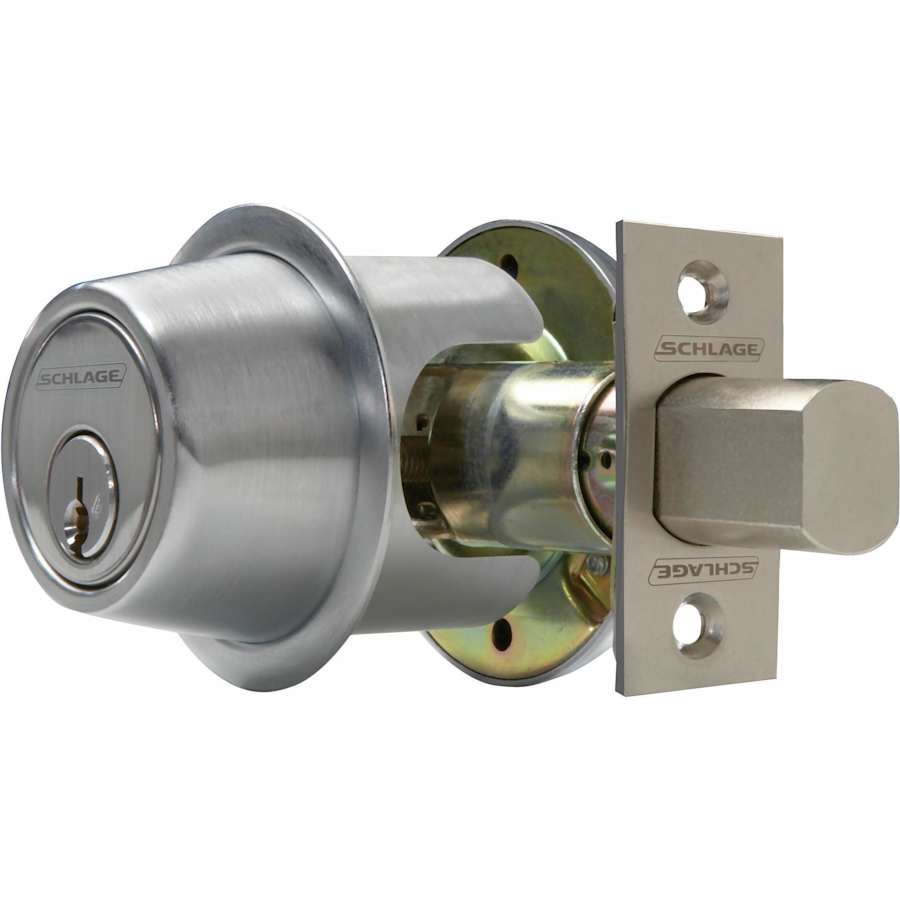

B500-Series One Sided Grade 2 Deadbolt with Full Size Interchangeable Core
The B561R one sided deadbolt is a versatile and economical Grade 2 deadbolt for use in medium duty commercial and heavy duty residential applications. This product includes a full size interchangeable core with a 6-pin solid brass Schlage C123 keyway. This one sided deadbolt is thrown and retraced by a key on the outside, has a blank plate on the inside and fits doors 1-5/8″ to 2″ thick with an adjustable 2-3/8″ or 2-3/4″ backset. Included is a standard metal dust box reinforcer and three 3″ wood screws, 2 for the plate and 1 is installed inside the dust box. This strengthens the connection between the door jamb and the frame of your building, thus preventing most kick-ins. The 10% larger diameter bolt has an integrated steel insert to prevent sawing and the housing is one piece with an anti-pry shield.
The B500-Series deadbolt is a revolutionary deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility. Designed by locksmiths for locksmiths, the B500-Series deadbolt accepts any Schlage cylinders, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Features:
One Sided Deadbolt with Full Size Interchangeable Core
Keyed Outside with Blank Plate Inside
6-Pin Solid Brass Schlage C123 Keyway
Lock is Furnished 1-Bitted with (2) 6-Pin Keys
For Standard Duty Commercial and Heavy Duty Residential Use
ANSI Grade 2 A156.2
2-3/8″ – 2-3/4″ Adjustable Backset with 1″ Throw
Anti-Pry Shield Can Be Removed To Fit 1-1/2” Prep
1″ x 2-1/4″ Square Corner Faceplate
Square Corner Strike 1-1/8″ x 2-3/4″ with Box and Door Frame Reinforced Standard
Door Thickness: 1-5/8″ to 2″
Similar Products:
Single Cylinder: B560R
Double Cylinder: B562R
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage B500-Series Collection
Specifications
| Thermostat | Traditional |
| Material | Brass, Bronze |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Style | Commercial |
| Concealed Screws | No |
| Cylinder | 6 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C123 |
| Interchangeable Core Type | Full Size |
| Mortise | No |
| Approved for Commercial Use | Yes |
| ADA | No |
| Collection | B500-Series |
| Manufacturer Warranty | 3 Year Limited |
| Certifications | UL |
| ANSI Certification | A156.2 |
| Series | B500-Series |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
| Backset | 2-3/4", 2-3/8" |
| Edge Bore | 1" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Cross Bore | 2-1/8" |
| Interchangeable Core | Yes |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
