Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

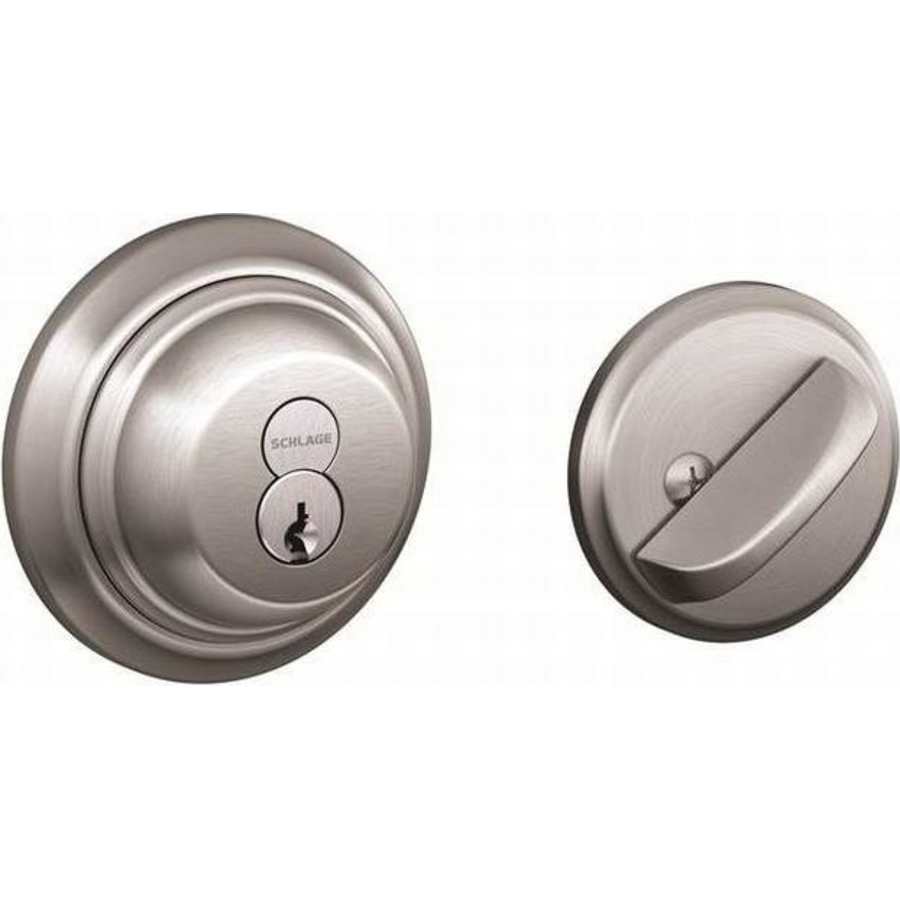

Keyed Entry (Single Cylinder) Function: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Three-piece design is ready for installation right out of the box
Low profile deadbolt face is nearly impossible to grip with a wrench and cannot be unscrewed
Bolt diameter is 10% larger than standard bolts with 1/2″ left in housing at full throw, providing maximum resistance to forced entry
Solid zinc bolt with hardened steel interior pin spins in response to sawing attack, preventing a through cut
Improved security measures including integrated anti-pick shield and Snap & Stay™ self-adjusting installation
Features adjustable backset for both 2-3/8″ and 2-3/4″ with Schlage exclusive helical lock-in design
Rounded radius strike plate features thick metal reinforcer with 3″ screws for improved strength within the jamb
Large, easy to grip ADA compliant thumb turn
Featured Technologies:
Snap & Stay™ Design: Schlage’s unique three piece design with self-adjusting tension allows you to simply snap the deadbolt into place in minutes, eliminating the need for minor fit adjustments, and ensuring that you install your deadbolt correctly on the first attempt.
Anti-Pick Shield: Experience increased security with Schlage’s exclusive Anti-Pick Shield. This integrated metal shield surrounds the latch and helps stop unwanted attempts to bypass the deadbolt mechanism.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 1-3/4″
Cylinder: 6 Pin C Keyway Full Size Interchangeable Core
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Specifications
| Thermostat | Transitional |
| Material | Zinc |
| Function | Keyed Entry |
| Cylinder | 6 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Interchangeable Core Type | Full Size |
| ADA | Yes |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 1 |
| Series | B60 Series |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Product Weight | 3.3 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Interior Height | 2.8 in. |
| Interior Width | 2.8 in. |
| Exterior Height | 2.8 in. |
| Exterior Projection | 0.716 in. |
| Exterior Width | 2.8 in. |
| Interior Projection | 0.716 in. |
| Interchangeable Core | Yes |
| Color | Satin Chrome, Satin Nickel |
| Color Tone | Nickel Tones, Silver Tones |
