Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

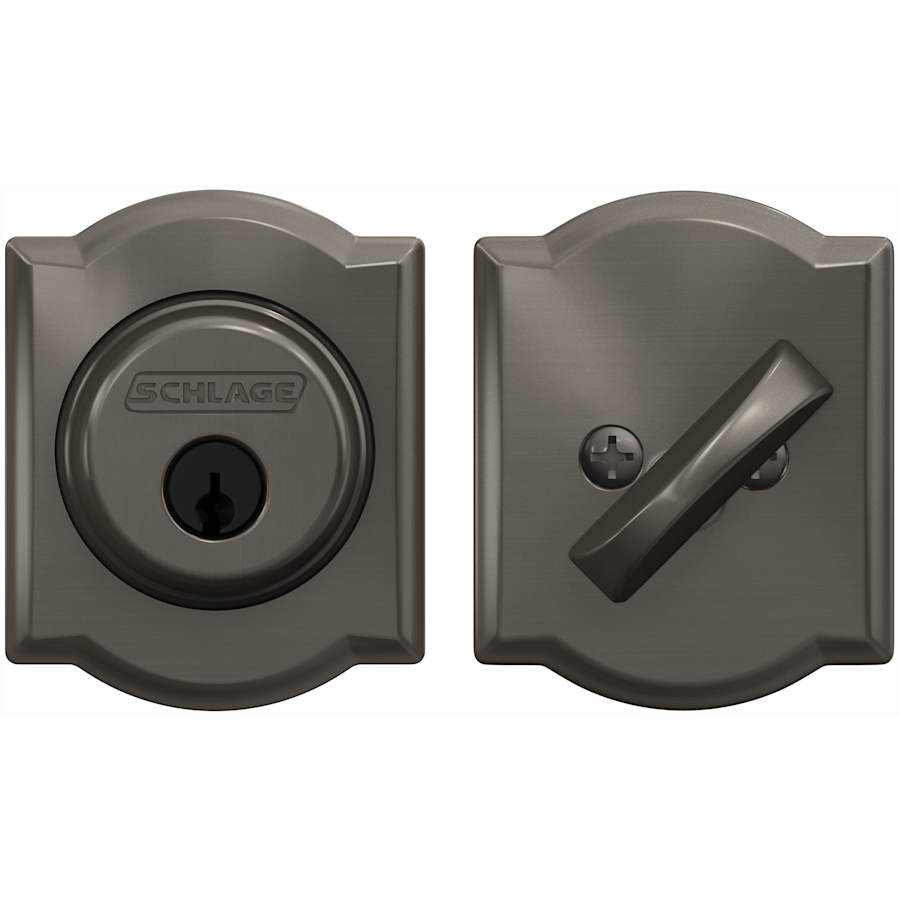

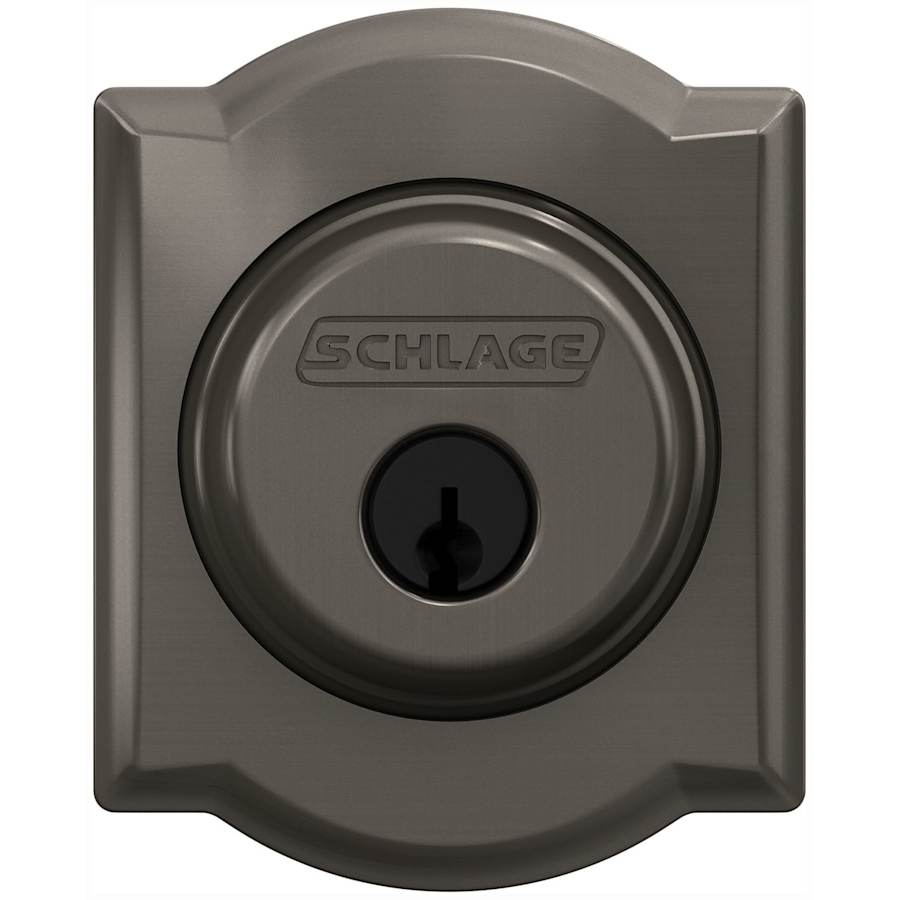

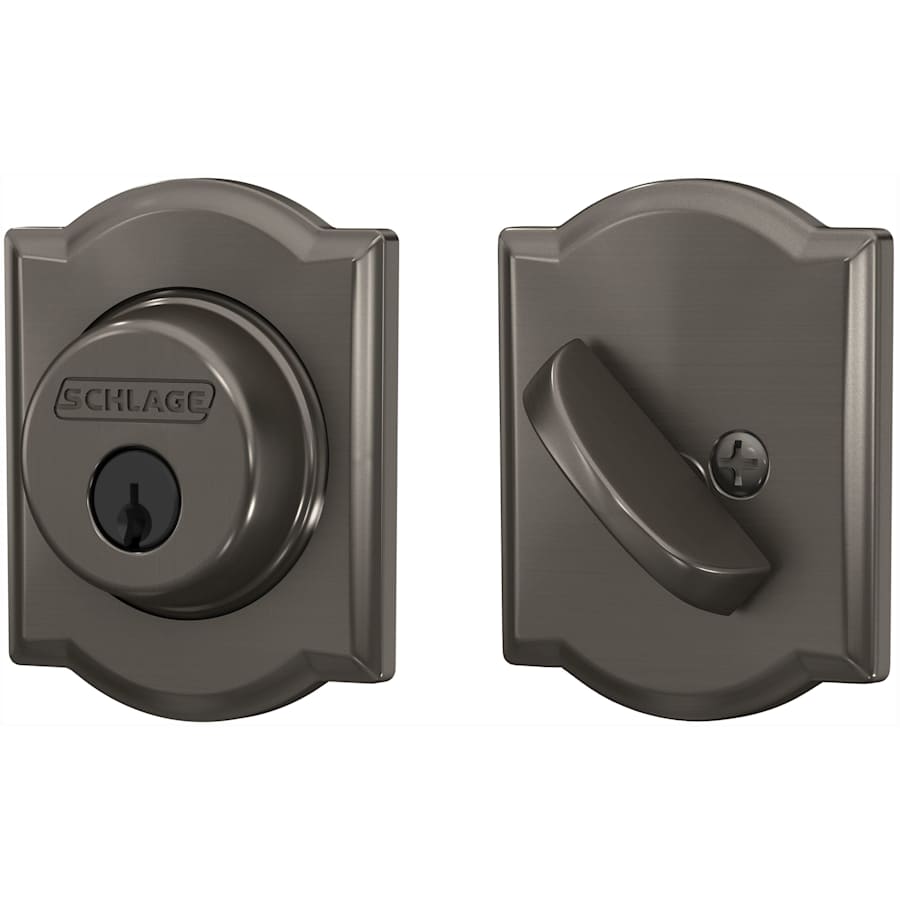

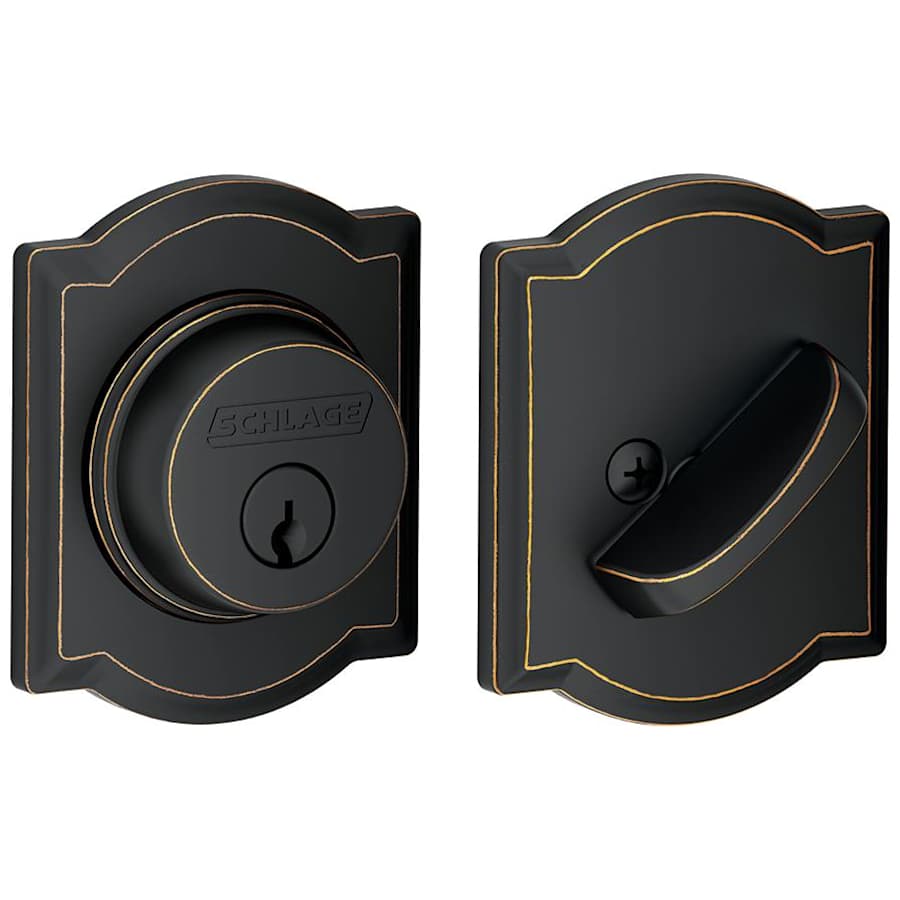

Keyed Entry (Single Cylinder) Function: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Three-piece design is ready for installation right out of the box
Low profile deadbolt face is nearly impossible to grip with a wrench and cannot be unscrewed
Bolt diameter is 10% larger than standard bolts with 1/2″ left in housing at full throw, providing maximum resistance to forced entry
Solid zinc bolt with hardened steel interior pin spins in response to sawing attack, preventing a through cut
Improved security measures including integrated anti-pick shield and Snap & Stay™ self-adjusting installation
Includes round corner, square corner and drive-in latch plates for maximum versatility
Features adjustable backset for both 2-3/8″ and 2-3/4″ with Schlage exclusive helical lock-in design
Rounded radius strike plate features thick metal reinforcer with 3″ screws for improved strength within the jamb

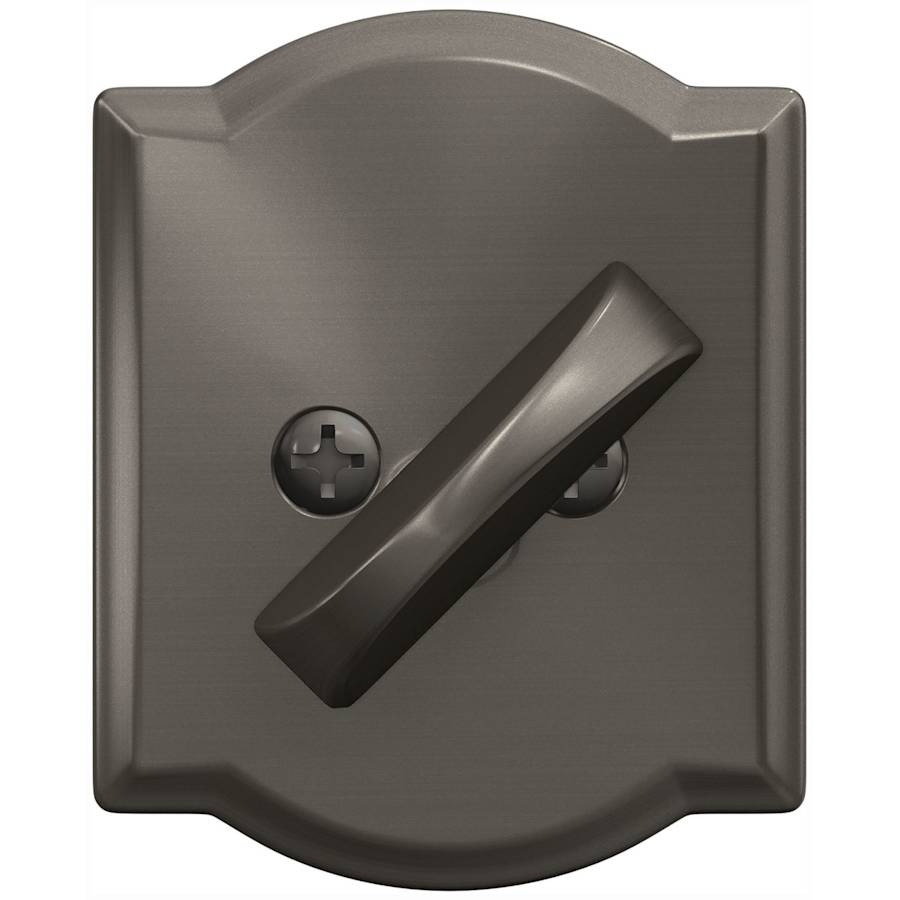

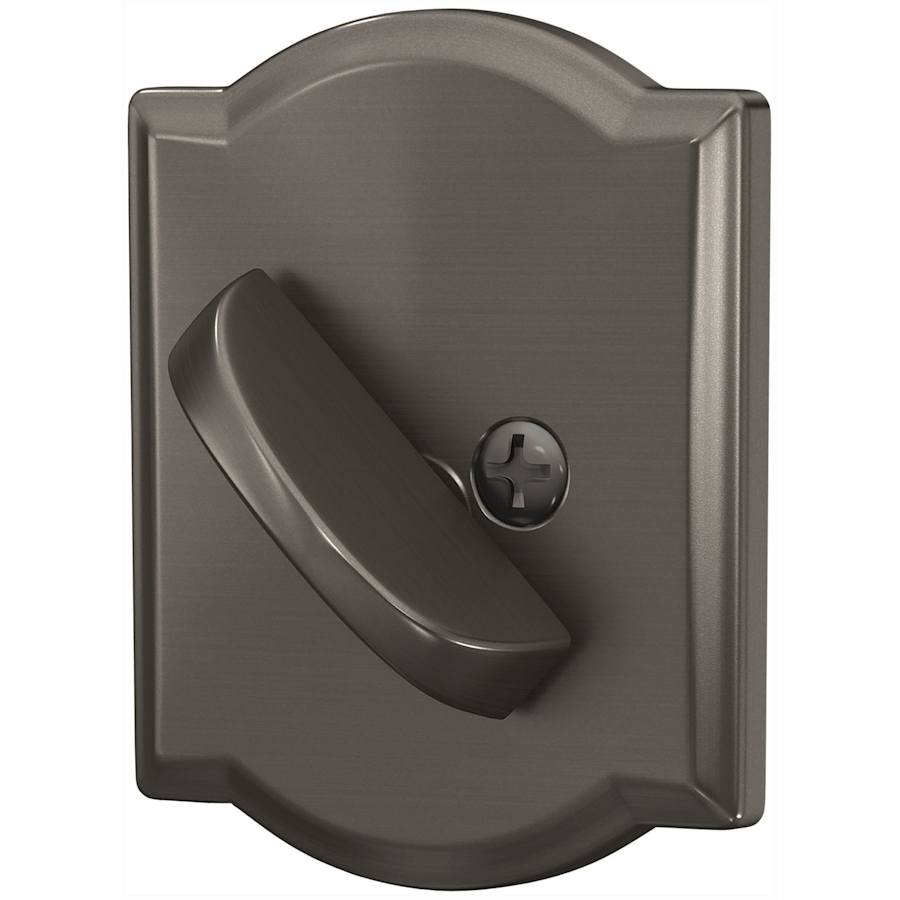

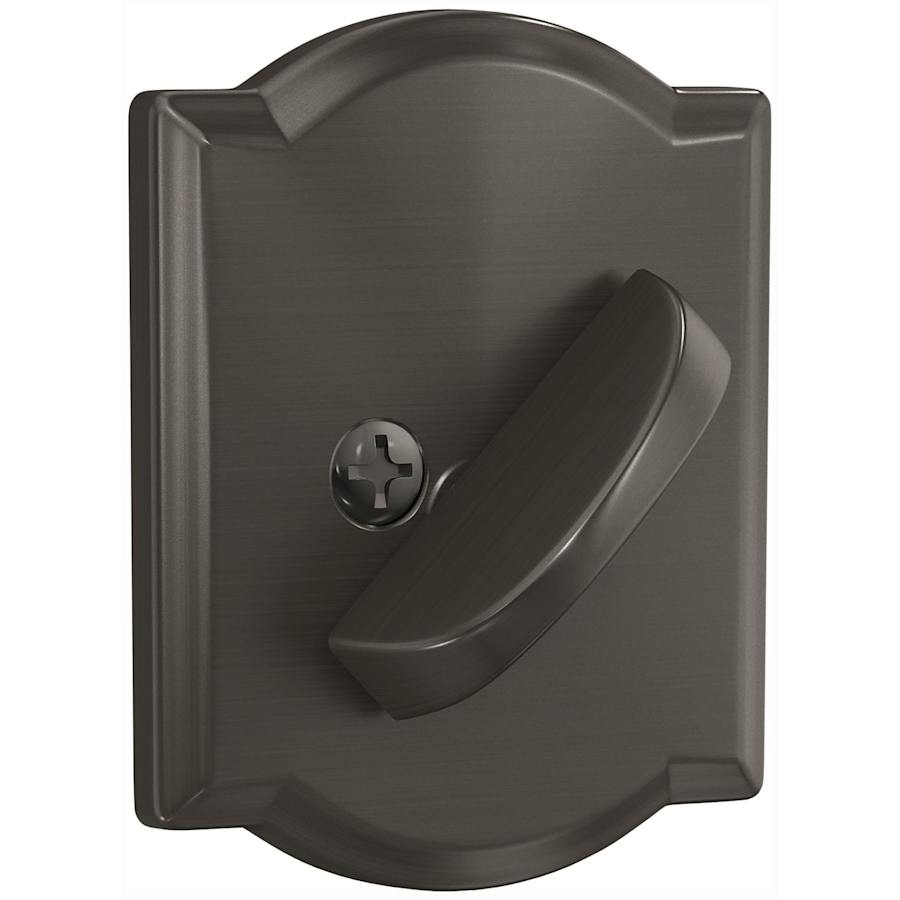

Large, easy to grip ADA compliant thumb turn
Featured Technologies:
Snap & Stay™ Design: Schlage’s unique three piece design with self-adjusting tension allows you to simply snap the deadbolt into place in minutes, eliminating the need for minor fit adjustments, and ensuring that you install your deadbolt correctly on the first attempt.
Anti-Pick Shield: Experience increased security with Schlage’s exclusive Anti-Pick Shield. This integrated metal shield surrounds the latch and helps stop unwanted attempts to bypass the deadbolt mechanism.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″ or 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 1-3/4″
Cylinder: 5 Pin Schlage C
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage B-Series Collection
Specifications
| Thermostat | Traditional |
| Material | Zinc |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Arch |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Trim Design | Camelot |
| Product Weight | 2.39 lbs. |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-1/2", 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Exterior Height | 3.3125 in. |
| Exterior Projection | 1 in. |
| Exterior Width | 2.6875 in. |
| Interior Height | 3.3125 in. |
| Interior Width | 2.6875 in. |
| Interior Projection | 1 in. |
| Approved for Commercial Use | No |
| Collection | Camelot |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| ADA | No |
| Series | B-Series |
| Certifications | ANSI, UL |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Black Stainless, Bright Chrome, Lifetime Polished Brass, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones, Stainless Steel |
