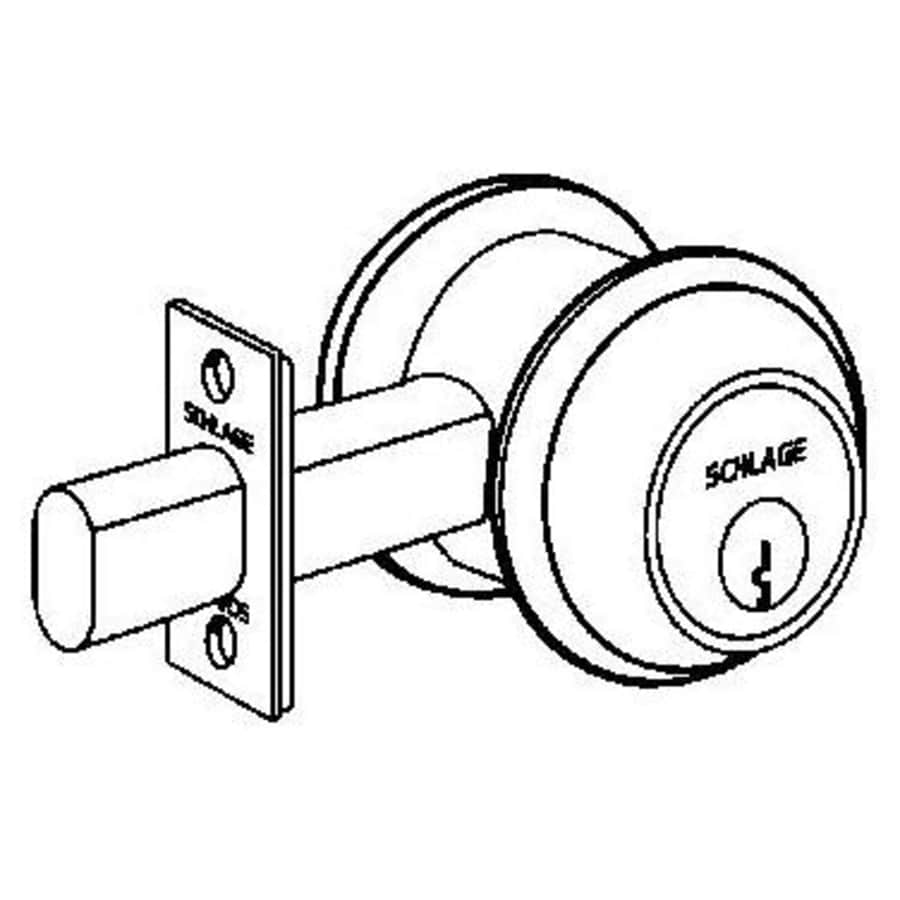

One-Sided Deadbolt from the B600 Series
The deadbolt is thrown or retracted by a turn unit only with no outside trim. The bolt automatically deadlocks when it is fully thrown.
Single cylinder outside, blank plate inside
Deadbolt: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1″ throw
Strike: 1 1/8″ x 2 3/4″, Square corner box
Cylinder: 6-pin solid brass, keyed 6-pin, C123 keyway
Door Range: 1 5/8″ – 2″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage B600-Series Collection
Specifications
Characteristics and Features
| Thermostat | Traditional |
| Concealed Screws | No |
| Latch Faceplate | Square Corner |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | B600, B600 Series |
| Manufacturer Warranty | 3 Year Limited |
| ADA | No |
| Certifications | UL |
| Series | B600-Series |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Edge Bore | 1" |
| Color | Antique Brass |
| Color Tone | Brass Tones |
