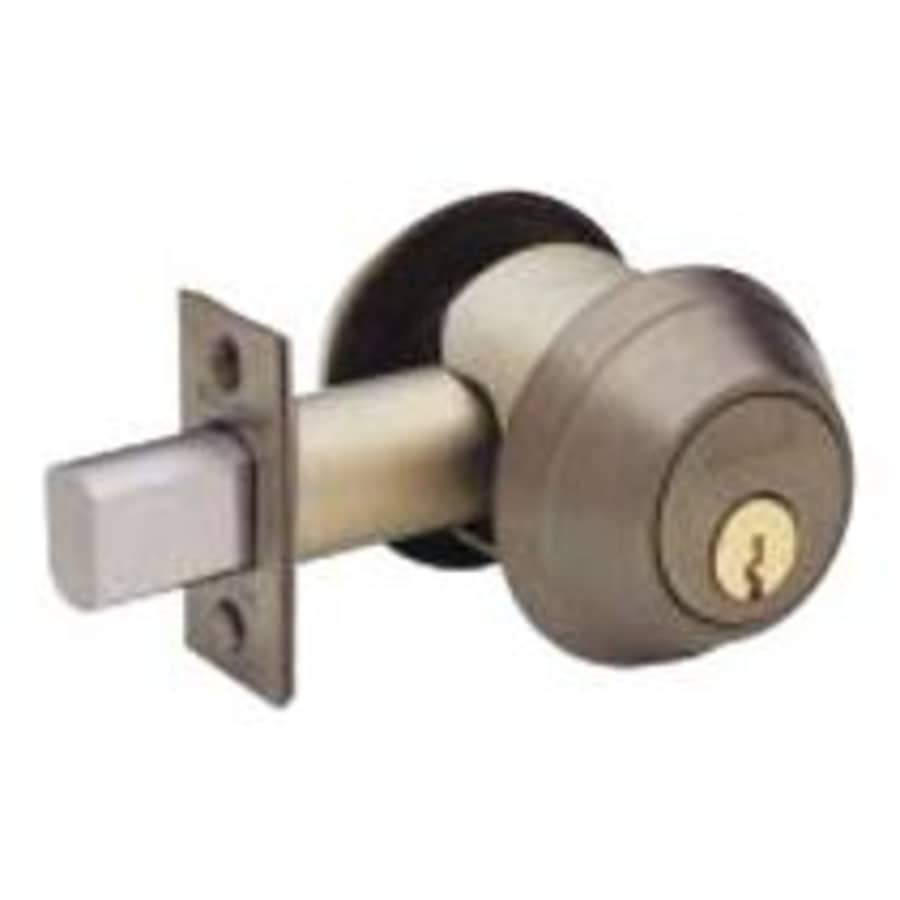

One-Sided Keyed Deadbolt from the B600 Series
The deadbolt thrown or retracted by key from one side. Their is no inside trim on this unit. The bolt automatically deadlocks when it is fully thrown.
Cylinder bolt, no turn unit
Deadbolt: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1″ throw
Strike: 1 1/8″ x 2 3/4″, Square corner box
Cylinder: 65pin solid brass, keyed 5-pin, C keyway
Door Range: 1 5/8″ – 2″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage B600-Series Collection
Specifications
Characteristics and Features
| Thermostat | Traditional |
| Latch Faceplate | Square Corner |
| Concealed Screws | No |
Warranty and Product Information
| Manufacturer Warranty | 3 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | B600, B600 Series |
| Series | B600-Series |
| ADA | No |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.5 |
| Fire Rated | Yes |
Dimensions and Measurements
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Color | Antique Brass |
| Color Tone | Brass Tones |
