Cylinder Not Included. Image may display product with Cylinder.

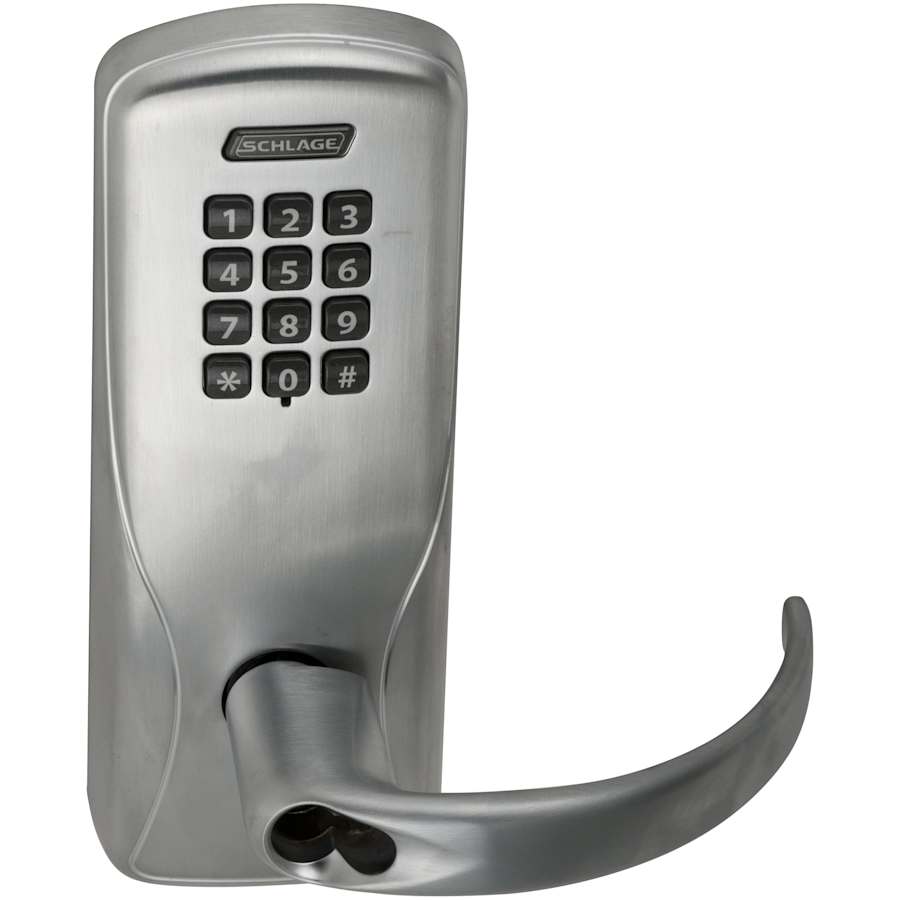

Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-100 is an offline keypad programmable lock, recommended for openings with a relatively small number of users. (Maximum of 500 Users.)
Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more. See Features below for Exit Device Compatibility.
In Classroom application, a toggle credential can be used to put the lock into a “locked” or “unlocked” state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.
Features:
Standalone, offline, manually programmable lock
User rights stored on the lock
Normal, toggle, pass through, and freeze credential attributes available
Keypad
ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Exit trim designed to work with the following Exit Device series:
Von Duprin 98 / 99 and 98 / 99 XP Rim and Concealed Vertical Rod
Von Duprin 22 / 22F
Falcon 25
Corbin Russwin 5000M
Precision 21 (Rim 2100 converts to 21 with Precision’s BP21 kit)
Yale 7000
Dorma 9300
Sargent 80
Less Schlage FSIC Cylinder
12 button keypad compatible with 3-6 digit PIN codes
Sparta Style Lever
Specifications:
Maximum Users: 500
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Exterior Dimensions:
Height: 9.46″
Width: 3.44″
Projection: 3.67″
Door Thickness: 1-3/4″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
There are industry standards, and then there are Schlage standards. If it has the Schlage name on it, you can be sure they put it through more punishment than you ever will. Schlage has a rich history in security. For over 90 years they’ve endeavored to develop a complete line-up of security solutions you can trust. Simply put, they believe everyone deserves peace of mind, every day.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage CO-100 Series Collection
Specifications
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8" |
| Height | 9.46 in. |
| Width | 3.44 in. |
| Projection | 3.67 in. |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Approved for Commercial Use | Yes |
| Collection | CO-Series, Sparta |
| Series | CO-Series |
| ADA | Yes |
| ANSI Certification | A156.25 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| Handle Style | Lever |
| Handle Material | Metal |
| Function | Office, Keyless Entry, Electronic Keyless Entry |
| Latch Faceplate | Square Corner |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Right |
| Keyway | C123 |
| Handle Design | Sparta |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | No |
| Temporary Access | Yes |
| Usage Monitoring | No |
| Number of Codes | 500 |
| Remote Access | No |
| Temperature (Max) | 120, 151 °F |
| Temperature (Min) | -31, 32 °F |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
