Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more. See Features below for Exit Device Compatibility.
In Classroom application, a toggle credential can be used to put the lock into a “locked” or “unlocked” state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.
Features:
Standalone, offline, computer or manually programmable lock
User rights stored on the lock
ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Exit trim designed to work with the following Exit Device series:
Von Duprin 98 / 99 and 98 / 99 XP Rim and Concealed Vertical Rod
Von Duprin 22 / 22F
Falcon 25
Corbin Russwin 5000M
Precision 21 (Rim 2100 converts to 21 with Precision’s BP21 kit)
Yale 7000
Dorma 9300
Sargent 80
Schlage key-in-lever 6 pin cylinder
Specifications:
Maximum Users: Up to 2000 (depending on access control software)
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Max Current Requirement: Up to 250 mA
Exterior Dimensions:
Height: 9.46″
Width: 3.44″
Projection: 3.67″
Door Thickness: 1-3/4″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products

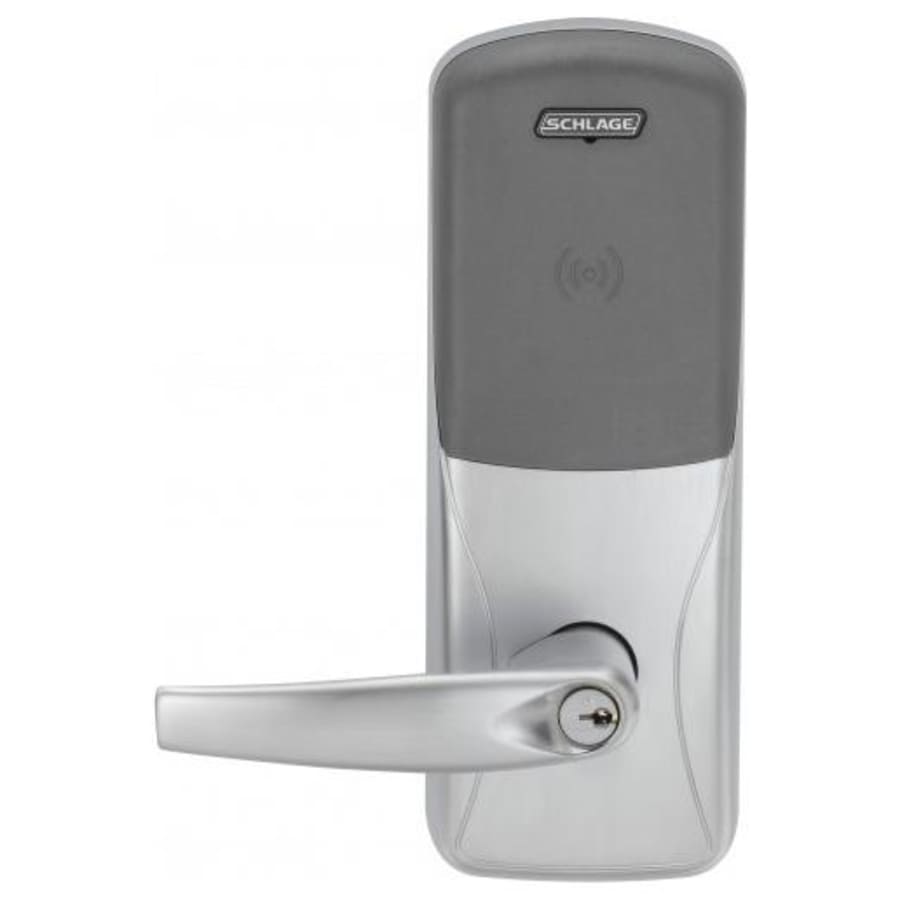

Schlage CO-200 Collection
Specifications
| Height | 9.46 in. |
| Width | 3.44 in. |
| Backset | 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8" |
| Projection | 3.67 in. |
| Collection | CO-Series, Athens |
| Approved for Commercial Use | No, Yes |
| Series | CO-Series |
| ADA | Yes |
| ANSI Certification | A156.25 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| Cylinder | 6 Pin Schlage C |
| Function | Office, Keyless Entry, Electronic Keyless Entry |
| Handshower | Left, Right |
| Keyway | C123 |
| Latch Faceplate | Square Corner |
| Handle Material | Metal |
| Handle Style | Lever |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
