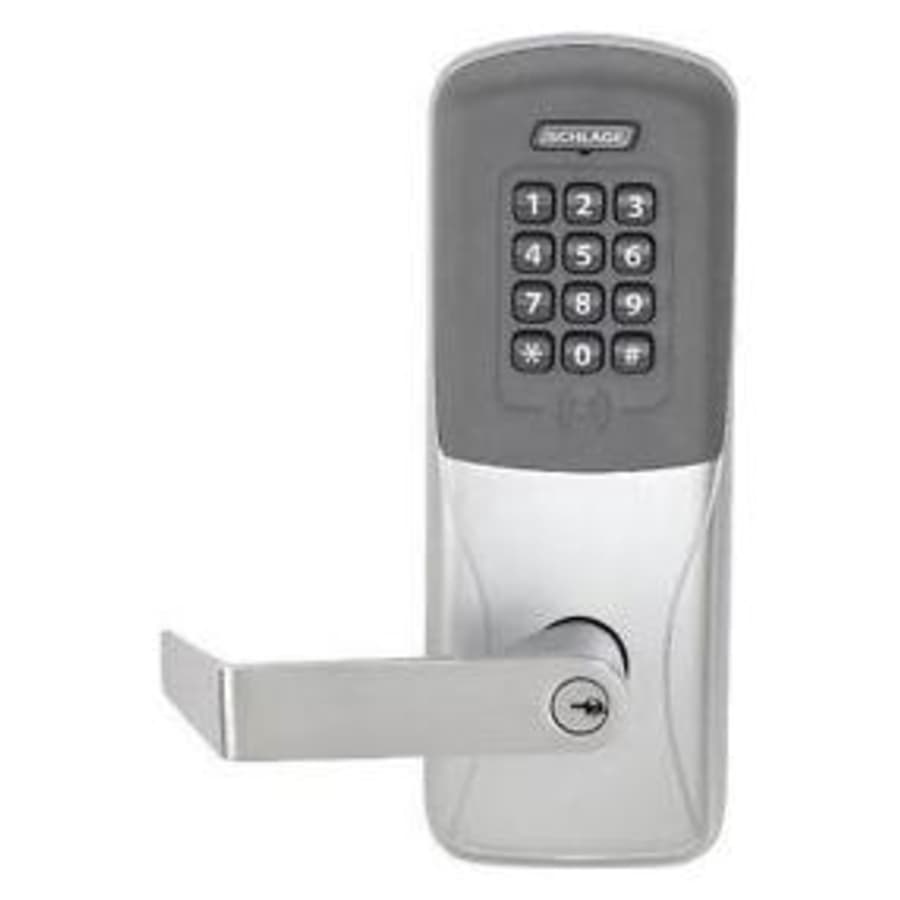

Electronic Keypad Entry Lever: Go keyless with the keypad entry lever. Lock or unlock the deadbolt latch with a valid user code or with a standard key. Perfect for offices or multi user locations that need extra security. Lock or unlock the interior with the interior lever’s push button.Â
Features:
Standalone, offline, manually programmable lock with keypad entry
12 button keypad is compatible with 3-6 digit PIN codes
Exceeds criteria for certification as ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Cylindrical (Tubular) locking mechanism
Schlage key-in-lever C123Â 6 pin cylinder
12 button keypad compatible with 3-6 digit PIN codes
Specifications:
Maximum Users: Up to 2000 (depending on access control software)
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Max Current Requirement: Up to 250 mA
Exterior Height: 9.46″
Exterior Width: 3.44″
Exterior Projection: 3.67″
Interior Height: 10.1″
Interior Width: 3.44″
Interior Projection: 2.96″
Door Thickness: 1-3/8″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage CO-200 Collection
Specifications
| Power Source | Battery |
| Collection | CO-Series |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| ANSI Certification | A156.25 |
| Certifications | ANSI, UL |
| Manufacturer Warranty | 1 Year Electronics, Limited Lifetime, 5 Year Finish |
| BHMA Certification | Grade 1 |
| Thermostat | Basic |
| Material | Zinc |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handshower | Left, Right |
| Keyway | C123 |
| Latch Faceplate | Square Corner |
| Handle Material | Metal |
| Insulation Type | Keypad |
| Lit Keypad | No |
| Number of Codes | 2000 |
| Remote Access | No |
| Usage Monitoring | No |
| Backset | 2-3/4", 2-3/8" |
| Door Thickness | 1-3/8", 1-1/2", 1-5/8", 1-3/4", 1-7/8", 2", 2-1/8", 2-1/4", 2-3/8", 2-1/2", 2-3/4" |
| Handle Height | 9.46 in. |
| Handle Projection | 3.67 in. |
| Handle Width | 3.44 in. |
| Handle Length | 4.5625 in. |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
