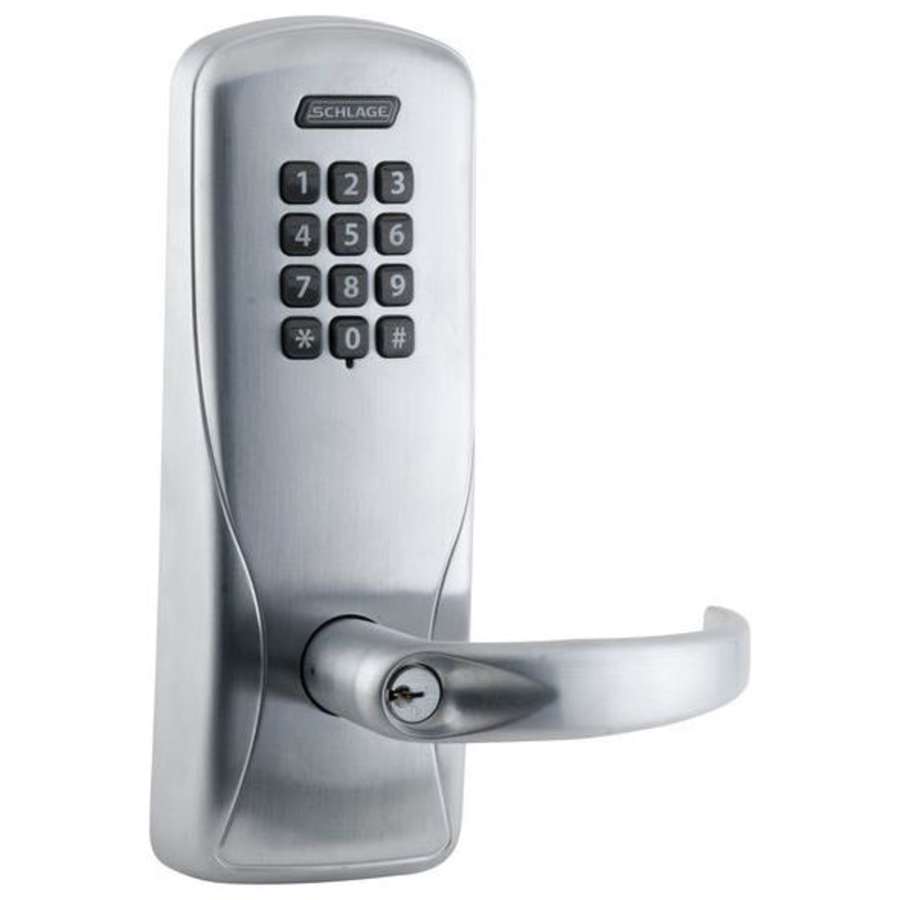

CO-Series Manually or Computer Programmable Classroom / Storeroom Commercial Electronic Cylindrical Lock with Keypad and Sparta Lever Less Schlage FSIC Cylinder
Cylinder Not Included. Image may display product with Cylinder.
Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-200 is a computer programmable lock that can provide audit trails. The CO-200 can accommodate up to 2000 users and 2000 audits, depending on access control software.
Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more.
In Classroom application, a toggle credential can be used to put the lock into a “locked” or “unlocked” state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.
Features:
Standalone, offline, computer or manually programmable lock
User rights stored on the lock
Keypad
ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Cylindrical (Tubular) locking mechanism
Less Schlage FSIC Cylinder
12 button keypad compatible with 3-6 digit PIN codes
Sparta Style Lever
Specifications:
Maximum Users: Up to 2000 (depending on access control software)
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Max Current Requirement: Up to 250 mA
Exterior Dimensions:
Height: 9.46″
Width: 3.44″
Projection: 3.67″
Interior Dimensions:
Height: 10.1″
Width: 3.44″
Projection: 2.96″
Door Thickness: 1-3/8″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
There are industry standards, and then there are Schlage standards. If it has the Schlage name on it, you can be sure they put it through more punishment than you ever will. Schlage has a rich history in security. For over 90 years they’ve endeavored to develop a complete line-up of security solutions you can trust. Simply put, they believe everyone deserves peace of mind, every day.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage CO-200 Series Collection
Specifications
| Material | Zinc |
| Thermostat | Basic |
| Handle Material | Metal |
| Handshower | Left |
| Concealed Screws | Yes |
| Function | Office, Keyless Entry, Electronic Keyless Entry |
| Latch Faceplate | Square Corner |
| Keyway | C123 |
| Handle Design | Sparta |
| Insulation Type | Keypad |
| Lit Keypad | No |
| Usage Monitoring | Yes |
| Interchangeable Core Type | Full Size |
| Mortise | No |
| ADA | Yes |
| Collection | CO-Series, Sparta |
| Certifications | ANSI, UL |
| Approved for Commercial Use | Yes |
| Series | CO-Series |
| ANSI Certification | A156.25 |
| BHMA Certification | Grade 1 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Handle Length | 4.9375 in. |
| Handle Projection | 3.67 in. |
| Handle Height | 9.46 in. |
| Handle Width | 3.44 in. |
| Temperature (Max) | 120, 151 °F |
| Temperature (Min) | -31, 32 °F |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
