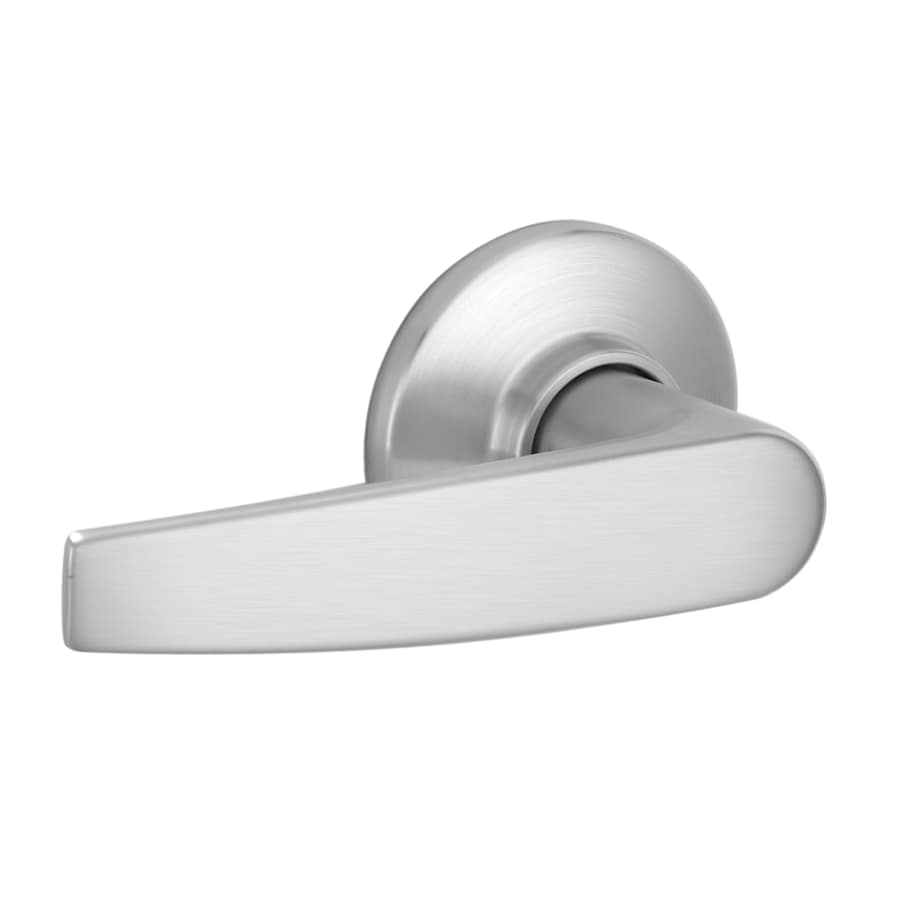

Interconnected Commercial Grade 2 Single Lock Jupiter Entry Lever Set and 6-Pin Cylinder Deadbolt with Plymouth Escutcheon from the CS200-Series
The Schlage CS200-Series grade 2 interconnected locks are the perfect combination of aesthetics and strength; and with an internal mechanism allowing the deadbolt to be released by turning the interior handle, this lock can help achieve strict life and safety code requirements. Known for accessible egress and dependable security, this lockset has heat-treated steel locking components, and independent heavy-duty lever torsion springs along with its adjustable 4 or 5.5 inch center to center installation capability. With an ANSI A156.25 rating for all 14 lever styles available, and its ADA compliance, this lock set is generally used in medium traffic areas, for a wide array of applications.
Features:
Features Jupiter Levers with Plymouth Inside Escutcheon
For Left or Right Handed Applications
ANSI Certified A156.12-2005
BHMA Grade 2 Certified
UL Listed for 3-Hour Fire Door
Extra Strength Derived from Heat-Treated Steel Locking Components
Durable Heavy-Duty Lever Torsion Springs
Versatile Choices for Face and Strike Plates
3 Year Limited Warranty
Single Locking: With a lever that is always free to turn, this single locking entrance set relies solely on the deadbolt for security purposes. The deadbolt is thrown and retracted on the outside with a key, and utilizes a turn knob to lock and unlock from the interior. Another feature of this function is the ability of the interior handle to simultaneously release both the dead latch and deadbolt for safe, immediate exit capabilities.
6 Pin Cylinder: This lockset comes with a solid brass 6-Pin cylinder located inside a C123 keyway.
Specifications:
Backset: Adjustable 2-3/8 and 2-3/4 Inch
Deadbolt: 1″ Housing Diameter and 1″ Throw
Center to Center: Fits 4 and 5-1/2 Inch Door Preps
Door Thickness: 1-3/4 to 2 Inches
Lever Length: 4.25 Inches
Cross Bore: 2-1/8 Inches
Edge Bore: 1 Inch
Includes:
Interior and Exterior Jupiter Lever Sets
Interior Plymouth Escutcheon
2-3/8″ or 2-3/4″ Adjustable Backset Deadbolt/Dead Latch – Part Numbers 12-340 and 16-260
Selected Strike/Face Plates
2 Nickel Silver Cut Keys
Similar and Related Products:
Same Levers with Camelot Escutcheon: CS210PD-JUP-CAM
Same Design with Full Size Interchangeable Core: CS210RD-JUP-PLY
Same Design with Full Size Less Core: CS210JD-JUP-PLY
Same Design with Small Format Less Core: CS210BD-JUP-PLY
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage CS200-Series Collection
Specifications
| Collection | Jupiter |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 3 Year Limited |
| Certifications | ANSI, UL |
| Series | CS200-Series |
| Fire Rated | Yes |
| ANSI Certification | A156.25 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-3/4", 2", 1-7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Latch Throw | 0.5 in. |
| Cross Bore | 2-1/8" |
| Handle Length | 4.25 in. |
| Center to Center | 4 in. |
| Deadbolt Throw | 1" |
| Concealed Screws | Yes |
| Handshower | Left, Reversible |
| Latch Faceplate | Round Corner, Square Corner |
| Function | Keyed Entry, Entrance |
| Lever Shape | Straight |
| Style | Commercial |
| Cylinder Type | Single Cylinder |
| Interconnected | Yes |
| Keyway | C123 |
| Panic Proof | Yes |
| Handle Design | Jupiter |
| Mortise | No |
| Interchangeable Core | No |
| Color | Aged Bronze |
| Color Tone | Bronze Tones |
