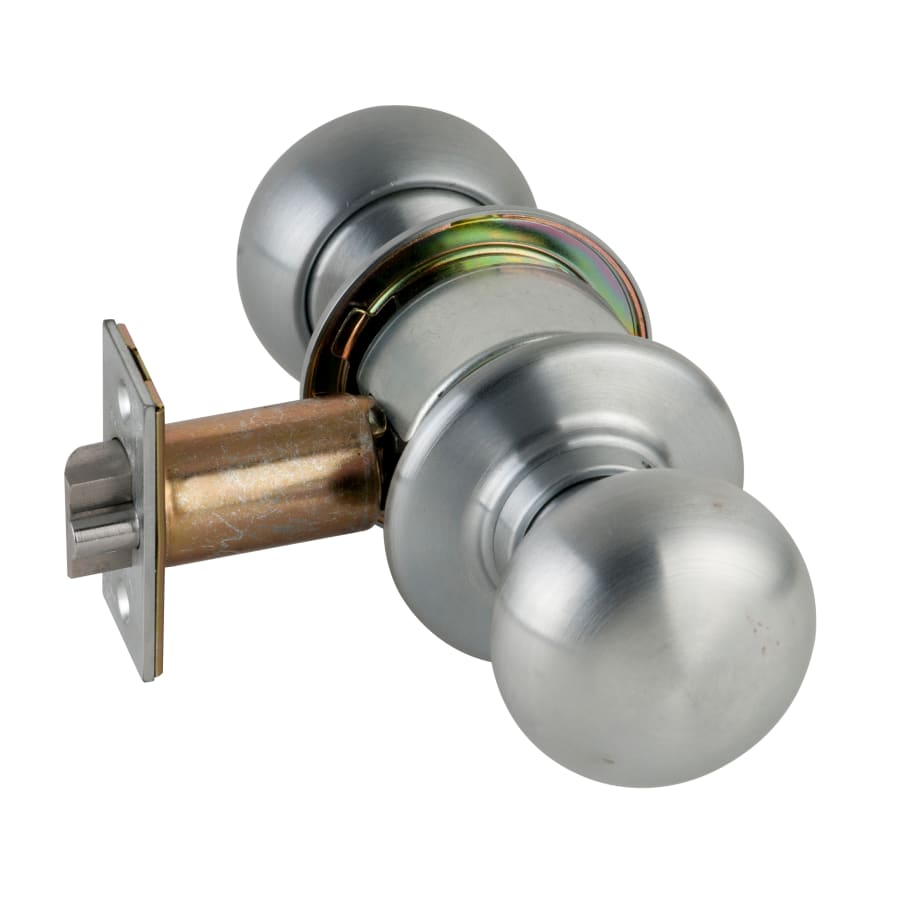

Single Keyed Entry Classroom Door Knob Set Lock from the Plymouth Collection
The outside knob is locked and unlocked by a key while the interior knob is always unlocked.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1 1/4″ x 4 7/8″, ANSI Square corner, no box
Cylinder: 6-Pin solid brass, keyed 6-pin, c123 keyway
Door range: 1 3/8″ – 2″
Caution:Â Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage D-Series Collection
Specifications
Dimensions and Measurements
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Plymouth |
| Series | D-Series |
| ADA | No |
| Manufacturer Warranty | 3 Year Limited |
| ANSI Certification | A156.12 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Characteristics and Features
| Thermostat | Transitional |
| Handle Material | Metal |
| Function | Keyed Entry, Classroom |
| Style | Commercial |
| Latch Faceplate | Square Corner |
| Cylinder | 6 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C123 |
| Knob Shape | Round |
| Rosette Shape | Round |
| Panic Proof | Yes |
| Handle Design | Plymouth |
| Mortise | No |
Included Components
| Interchangeable Core | No |
| Color | Antique Brass |
| Color Tone | Brass Tones |
