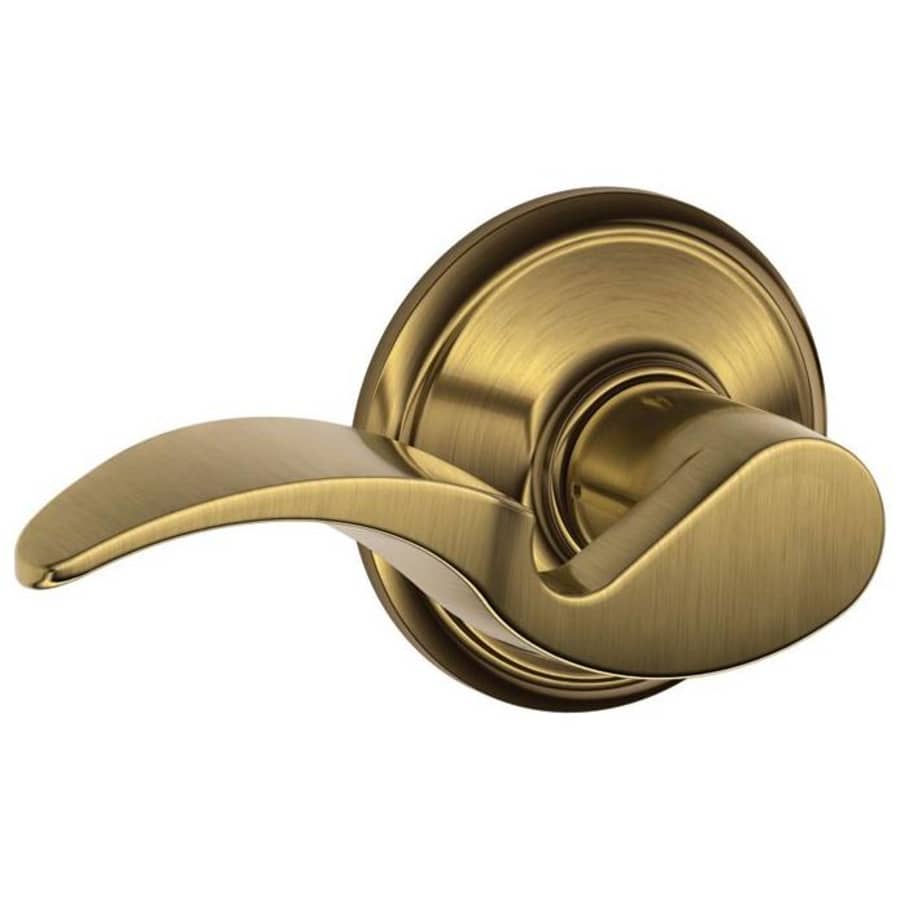

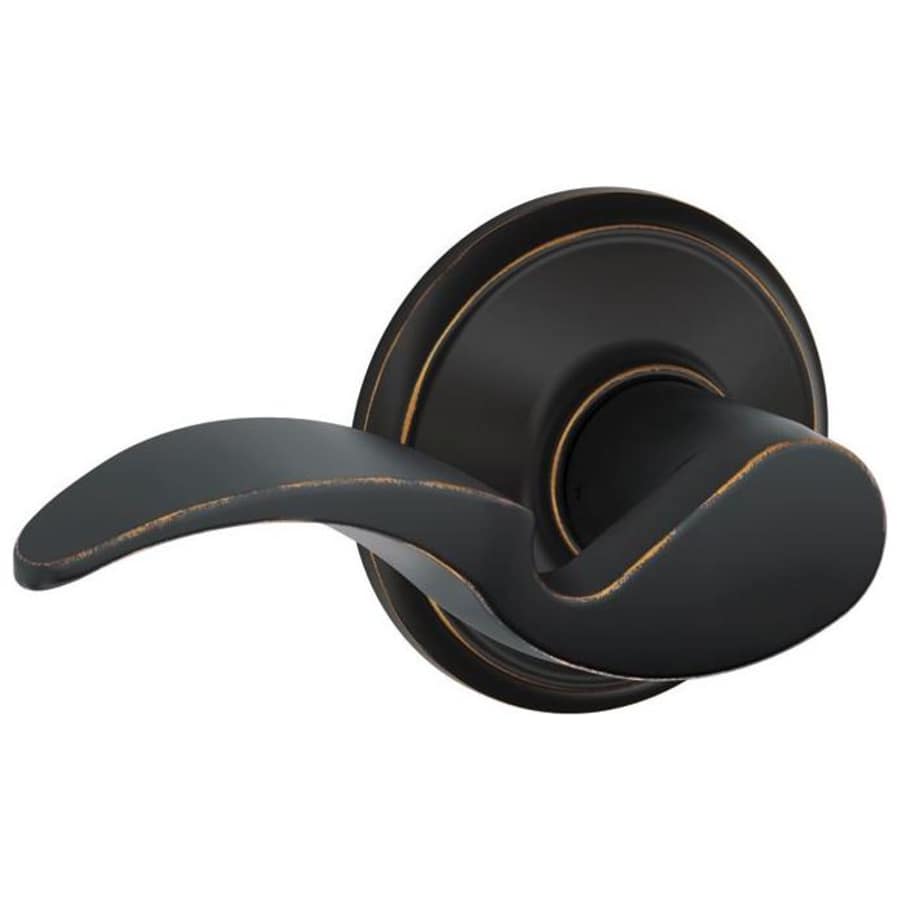

Passage Lever Door from the Avanti Series
Interior screws are exposed
Schlage Passage Lever Set.
Both levers always unlocked.
Unit is non handed and is field reversible.
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Avanti Collection
Specifications
Characteristics and Features
| Thermostat | Traditional |
| Concealed Screws | No |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Rosette Shape | Round |
| Function | Passage |
| Handle Material | Metal |
| Lever Shape | Drop |
| Style | Transitional |
| Trim Design | Plymouth |
| Handle Design | Avanti |
Warranty and Product Information
| ADA | Yes |
| Collection | Avanti |
| Approved for Commercial Use | No |
| Certifications | ANSI |
| Series | F-Series |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
Dimensions and Measurements
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 7/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
