Schlage Works for You
Features:
Adjusts to fit all standard door preparations
Easy installation makes for a one-person project
Interior screws are exposed
ANSI/BHMA A156.2, 2011, Grade 2
Non handed and field reversible which means this knob set can be installed on right and left handed doors.
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
Product Technologies:
Passage Function: Schlage’s passage door knob sets have no locking function and are free turning on both sides. These knobs are perfect for a hallway or closet where a lock isn’t necessary. Passage knobs can also be used in conjunction with a deadbolt to secure an entrance or back door.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ or 1-3/4″
Handing: Left, Right, Reversible
Knob Diameter: 2-3/32″
Projection: 2-5/16″
Product Weight: 1.55 lbs
Additional Functions:

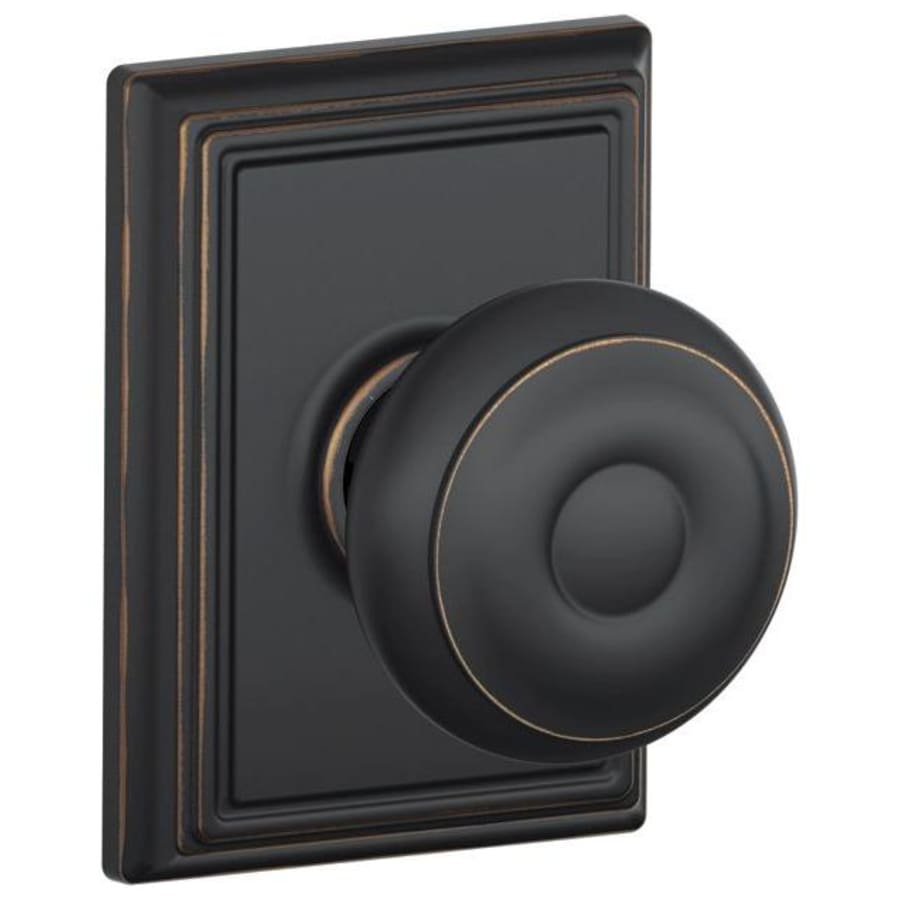

F10-GEO-ADD (This Model): Passage Knobset
F40-GEO-ADD: Privacy Knobset
F51-GEO-ADD: Keyed Entry Knobset
F170-GEO-ADD: Single Dummy Knob
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Knob Shape | Round |
| Latch Faceplate | Drive-In, Round Corner |
| Rosette Shape | Rectangle |
| Trim Design | Addison |
| Handle Design | Georgian |
| Approved for Commercial Use | No |
| Collection | Addison, Decorative Collection, Georgian |
| ADA | No |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.5 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 7/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Chrome, Distressed Nickel, Lifetime Polished Brass, Polished Brass, Matte Black, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
