Schlage Works for You
Features:

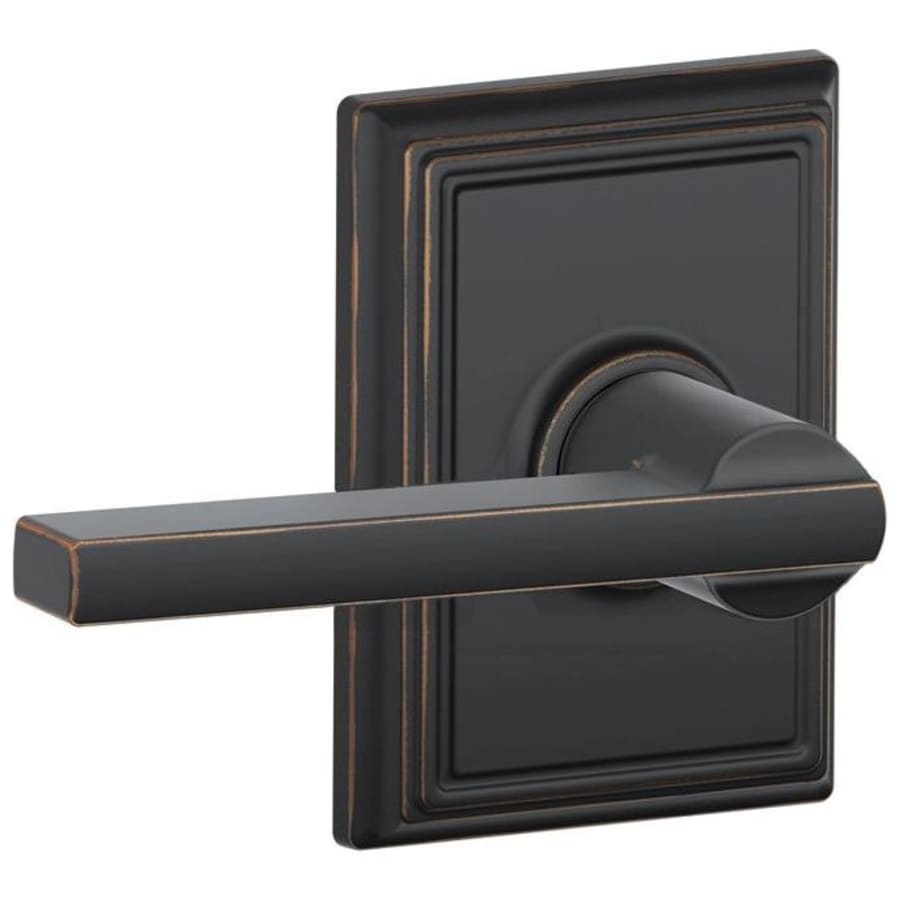

Features decorative addison rosette
Adjusts to fit all standard door preparations
Easy installation makes for a one-person project
Interior screws are exposed
ANSI/BHMA A156.2, 2011, Grade 2
Reversible lever allows for use as both right-hand and left-hand levers
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
ADA Compliant
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
Product Technologies:
Passage Function: Schlage’s passage door lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where a lock isn’t necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entrance or back door.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ or 1-3/4″
Handing: Left, Right, Reversible
Lever Length: 4-1/2″
Projection: 2-1/4″
Product Weight: 1.55 lbs
Additional Functions:
F10-LAT-ADD (This Model): Passage Leverset
F40-LAT-ADD: Privacy Leverset
F51-LAT-ADD: Keyed Entry Leverset
F170-LAT-ADD: Single Dummy Lever
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Thermostat | Modern |
| Handle Material | Metal |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Rosette Shape | Rectangle, Square |
| Lever Shape | Square, Straight |
| Concealed Screws | No |
| Handle Design | Latitude |
| Trim Design | Addison |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Latitude |
| Series | F-Series |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 7/8" |
| Handle Projection | 2.25 in. |
| Handle Length | 4.5 in. |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
