Passage Function: Schlage’s passage door lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where a lock isn’t necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entrance or back door.
Features:
Meets BHMA/ANSI Grade 2 security standards
All metal construction ensures long-lasting durability for years to come
Handing is reversible for either left or right door applications
Easily install into any standard prepared door
Schlage offers a Limited Lifetime Mechanical and Finish Warranty to the original purchaser
Complies with the Americans with Disabilities Act (ADA)
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time).
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
These levers are field reversible allowing this lever set to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″ or 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Lever Length: 4-1/8″
Projection: 2-5/8″
Product Weight: 1.5 lbs.
Latch Faceplate: Drive-in or Round Corner
Product Variations:

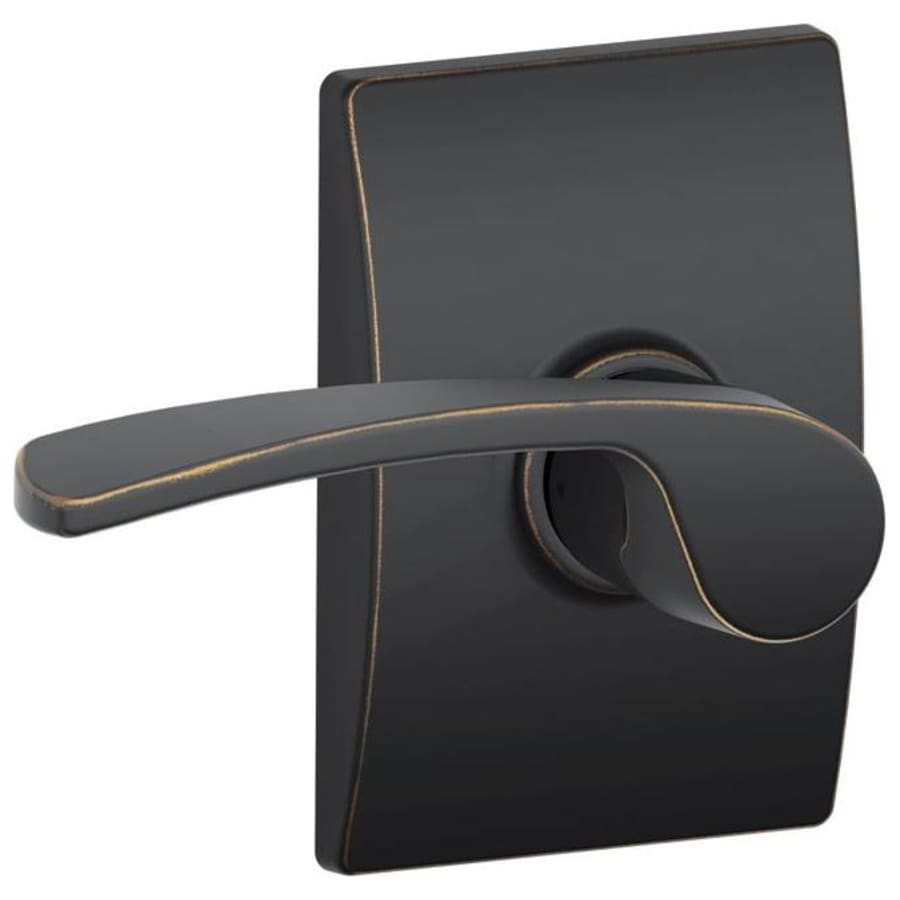

F10-MER-CEN (This Model): Passage Lever Set
F170-MER-CEN-LH: Left Handed Single Dummy Lever
F170-MER-CEN-RH: Right Handed Single Dummy Lever
F40-MER-CEN: Privacy Lever Set
F51-MER-CEN: Keyed Entry Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage F-Series Collection
Specifications
| Thermostat | Transitional |
| Latch Faceplate | Drive-In, Round Corner |
| Handshower | Left, Reversible, Right |
| Function | Passage |
| Handle Material | Metal |
| Concealed Screws | No |
| Rosette Shape | Rectangle |
| Lever Shape | Designer, Straight |
| Handle Design | Merano |
| Trim Design | Century |
| Approved for Commercial Use | No |
| Collection | Century, Decorative Collection, Merano |
| ADA | Yes |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1", 7/8" |
| Cross Bore | 2-1/8" |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
